Larson Explosion Proof Cable Gland - 0.60-0.89" Cable OD - Class I, II, III - Aluminum - NEMA 4X - IP66 - 3/4" NPT Hub
Larson Explosion Proof Cable Gland - 0.60-0.89" Cable OD - Class I, II, III - Aluminum - NEMA 4X - IP66 - 3/4" NPT Hub
Sold by: Larson Electronics

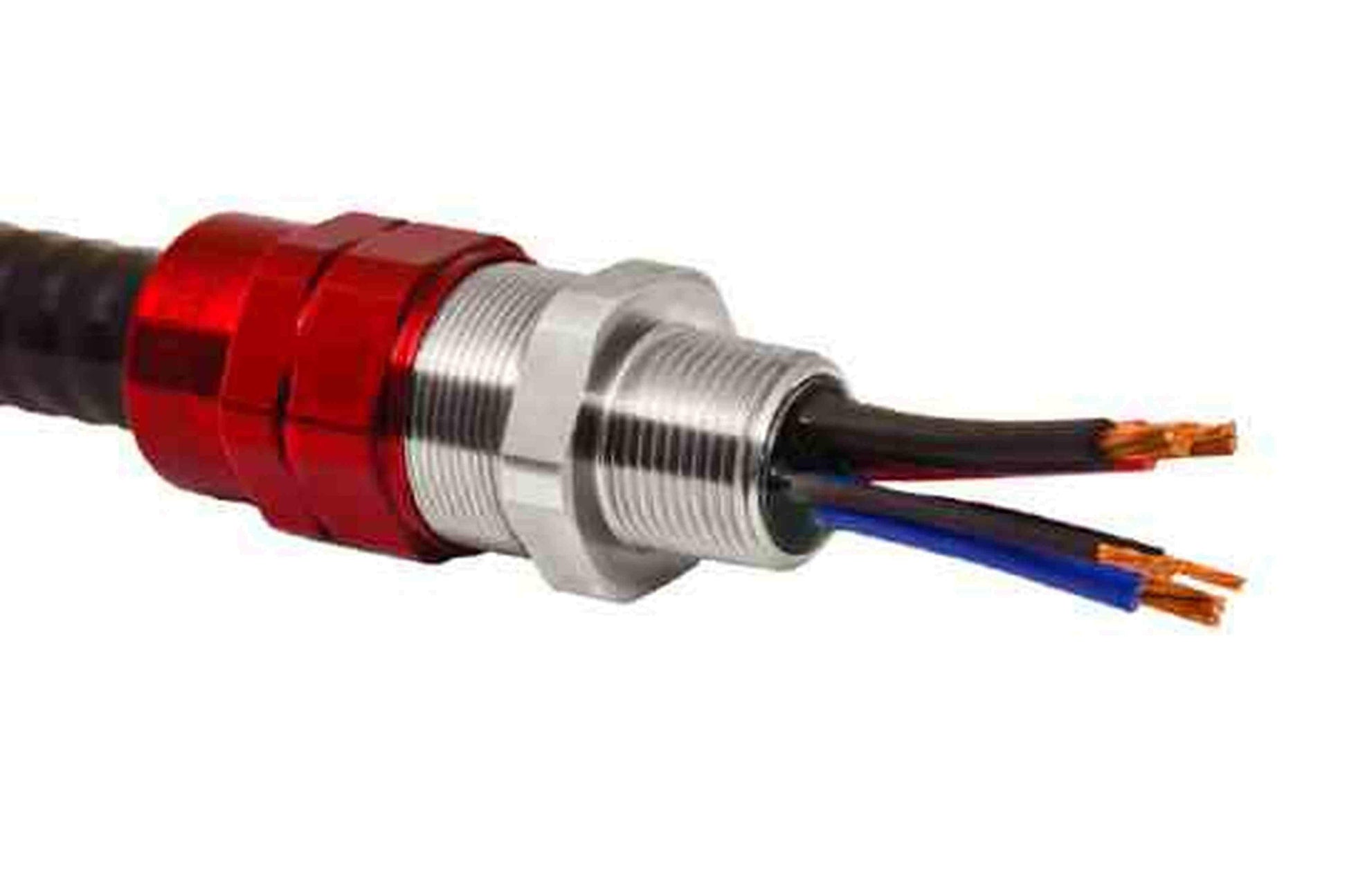

The Larson Electronics CGB-C1D1-MCHL-ALU-R25-0.75Â Explosion Proof Cable Gland provides secure and safe cable connections in combustible facilities. This armored cable gland is constructed of copper-free aluminum and caters to standard 3/4" NPT hubs for connection.
The CGB-C1D1-MCHL-ALU-R25-0.75 is a heavy duty cable gland for flammable and rugged environments. This armored unit features a standard entry thread of 3/4" NPT and a minimum/maximum cable jacket diameter of 0.69" NPT/0.99" NPT. The ATEX-rated cable gland is constructed of copper-free aluminum. The accessory, which contains a 360 ° grounding spring (non-magnetic), is waterproof (IP66) and designed for use in environments ranging between -60°C to 85°C.
A liquid pour sealing system is used to seal the accessory. The sealing compound is not included with the cable gland (sold separately).
Applications:
Mechanical cable retention, cable connections, cable fittings, explosive work sites, hazardous locations, instrumentation, telecommunication, cable management and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications / Additional Information
CGB-C1D1-MCHL-ALU-R25-0.75 Cable Gland
Ratings
Unit Type:
Explosion Proof Cable Gland
Class I, II, III Div 1 & 2
Weight:
0.14 lbs
Class I, Zone 1 AEx d IIC; AEx e II; AEx ta IIC
Cable:
Corrugated & Interlocked Metal Clad Armor (MC) or TECK90, Continuously Welded Metal Clad Armor (MCHL), ACIC-HL, ACWU90-HL, RC90-HL, RA90-HL
ATEX, IECEx, RETIE Approved
Entry Thread (Hub):
3/4" NPT
cCSAus, EAC, CCOE/PESO (India) Certified
Minimum Thread Length:
0.8" NPT
UkrSEPRO
Cable Armor Diameter (Stop In):
0.60" NPT (Min) to 0.65" NPT (Max)
Marine Approved
Cable Armor Diameter (Stop Out):
0.65" NPT (Min) to 0.89" NPT (Max)
NEMA 4X
Cable Jacket Diameter:
0.69" NPT (Min) to 0.99" NPT (Max)
IP66
Max Over Conductors:
0.71" NPT
Across Flats:
1.48" NPT (Max)
Across Corners:
1.63" NPT (Max)
Nominal Protrusion Length:
2.96" NPT
Special Orders- Requirements
Operating Temp:
-60°C to 85°C
Contact us for special requirements
Materials:
Copper-free Aluminum
Toll Free:
1(647) 254-9757
Armor Clamping:
360° Stainless Steel Grounding Spring (Non-magnetic)
Intl:
1-214-616-6180
Seal:
Sold Separately
E-mail:
Contact info@purilite.ca
Scroll Down to Purchase
