IEC 60309 Waterproof Connector, 30 Amps 3P+E, 250V 3PH 3P4W, Pin & Sleeve, IP67
IEC 60309 Waterproof Connector, 30 Amps 3P+E, 250V 3PH 3P4W, Pin & Sleeve, IP67
GAU-120.208V-4P5W-32A-C-IP67 Water Tight Pin and Sleeve Connector | Certifications - Compliance |
Device Series: IEC 60309 (North American Standard) | Certified for United States & Canada |
Device Type: Connector | NRTL Certified to UL 1682, UL 1686 |
Dimensions: - | NRTL Certified to CAN/CSA C22.2 No 182.1 |
Weight: - | CE Certified, Low Voltage Directive 73/23/EEC |
Amperage Rating: 30A | CE Certified, Low Voltage Directive 93/68/EEC |
Voltage: 250 | NRTL Certified to 60309-1, 60309-2 |
Frequency: 50/60 Hz | RoHS Certified |
Phase: 3-Phase Delta | Compatible with IEC 60309 Compliant Products |
Configuration: 3P4W (3P+N+E) | IP67/IP69K Rated Weatherproof |
# of Poles: 3-Pole | IK07 Rated Drop Resistant |
# of Wires: 4-Wire | Flame Retardant (UL94 V2) |
Max Voltage Rating: 250V 3PH | Certified for Full Load Interrupting |
Clock Hour: 9H | Current Interrupting: Certified for current interrupting at full rated current |
Cord Range: .437 - 1.187 | Corrosion Resistance: Ferrous parts immersed in 20°C, 10 percent ammonium chloride solution for 10 min |
Dielectric Voltage: 2000V� for 1 min | Flammability: Rated V-2 per UL 94 |
# of Operations: > 1000� connects/disconnects under load, at full rated current and voltage | Ingress Protection Rating: IP67/IP69K |
Minimum Withdrawal Force: 5lbs | Moisture Resistance: Immersed for 24 hours in 5cm of 25°C water per UL 1682 |
Temperature Rise: Max +30°C at full-rated current after 50 cycles of OL at 150% rated current | Crush Test: 250lbs for 1 min after -25°C for 6 hrs |
Operating Temperature Range: -25°C to +65°C | Impact Resistance: Drop from 30" 8 times after conditioning to -25°C for 6 hrs |
Waterproof Rating: IP67, IP69K, NEMA 4X |  |
Shock Resistance: IK09 | Mating Plug: XLE-PA-IP67-309.NA-3PH-30A-250V-3P4W-P |
Flammability: V-2 Rated | Mating Receptacle: XLE-PA-IP67-309.NA-3PH-30A-250V-3P4W-R |
Insulation Resistance: 500V for 1 min; >= 5MΩ | Mating Connector: XLE-PA-IP67-309.NA-3PH-30A-250V-3P4W-C |
Cable Secureness: "Force: 75lb; Torque: 0.5 ft-lb; Max Disp: <= 3/32""" | Mating Inlet: XLE-PA-IP67-309.NA-3PH-30A-250V-3P4W-B |
Seals: Neoprene |  |
Material, Housing Body: Toughened PVC | Cross Compatible: 430C9W |
Material, Housing Cover: Toughened PVC |  |
Material, Contacts: Brass |  |
Material, Contact Carrier: Nylon |  |
Material, External Screws: Acid-Proof Stainless Steel |  |
Material, Internal Screws: Zinc-plated steel |  |
Material, Phase/Ground Sleeves: Brass | |
Material, Sleeve Spring: Stainless Steel | |
Material, Terminal Screws: Steel | |
Color: Blue | Int'l: 1-214-616-6180 |
Shipping Dimensions: - | |
Shipping Weight: - |

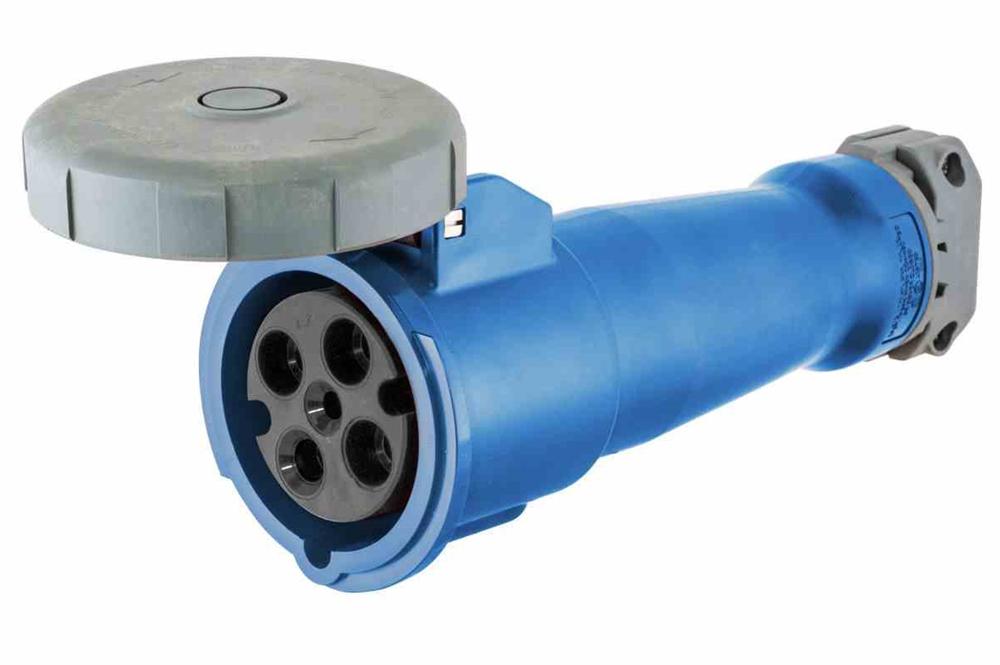

The Larson Electronics XLE-PA-IP67-309.NA-3PH-30A-250V-3P4W-C is an IEC 60309 standard industrial use waterproof Connector for industrial work sites. The 30-amp pin/sleeve Connector is configured to operate on 3-Phase Delta 250V AC power and features an IP67 waterproof rating. Designed for rugged facilities, the %Pole%-pole %Wire%-wire unit can be disconnected under load up to 1000� times. The XLE-PA-IP67-309.NA-3PH-30A-250V-3P4W-C is an industrial grade Connector with waterproof properties. This pin/sleeve unit is compatible with 3-Phase Delta 250V and holds a 30-amp rating. The IP67-rated Connector is constructed of toughened PVC, reinforced thermoplastic polyester and stainless steel. The XLE-PA-IP67-309.NA series from Larson Electronics complies with the IEC 60309 standard for North American equipment, is a direct cross for 430C9W , and is cross compatible with other equipment designed to the same standard. The XLE-PA-IP67-309.NA-3PH-30A-250V-3P4W-C is a Blue Connector with a grounding pin located at clock hour 9.  |
