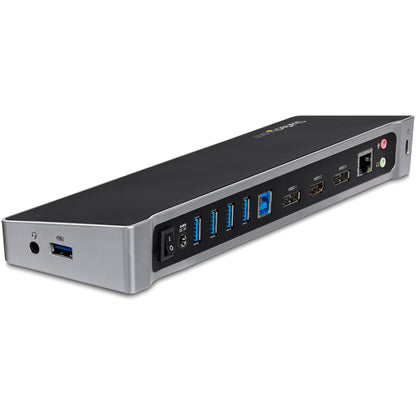

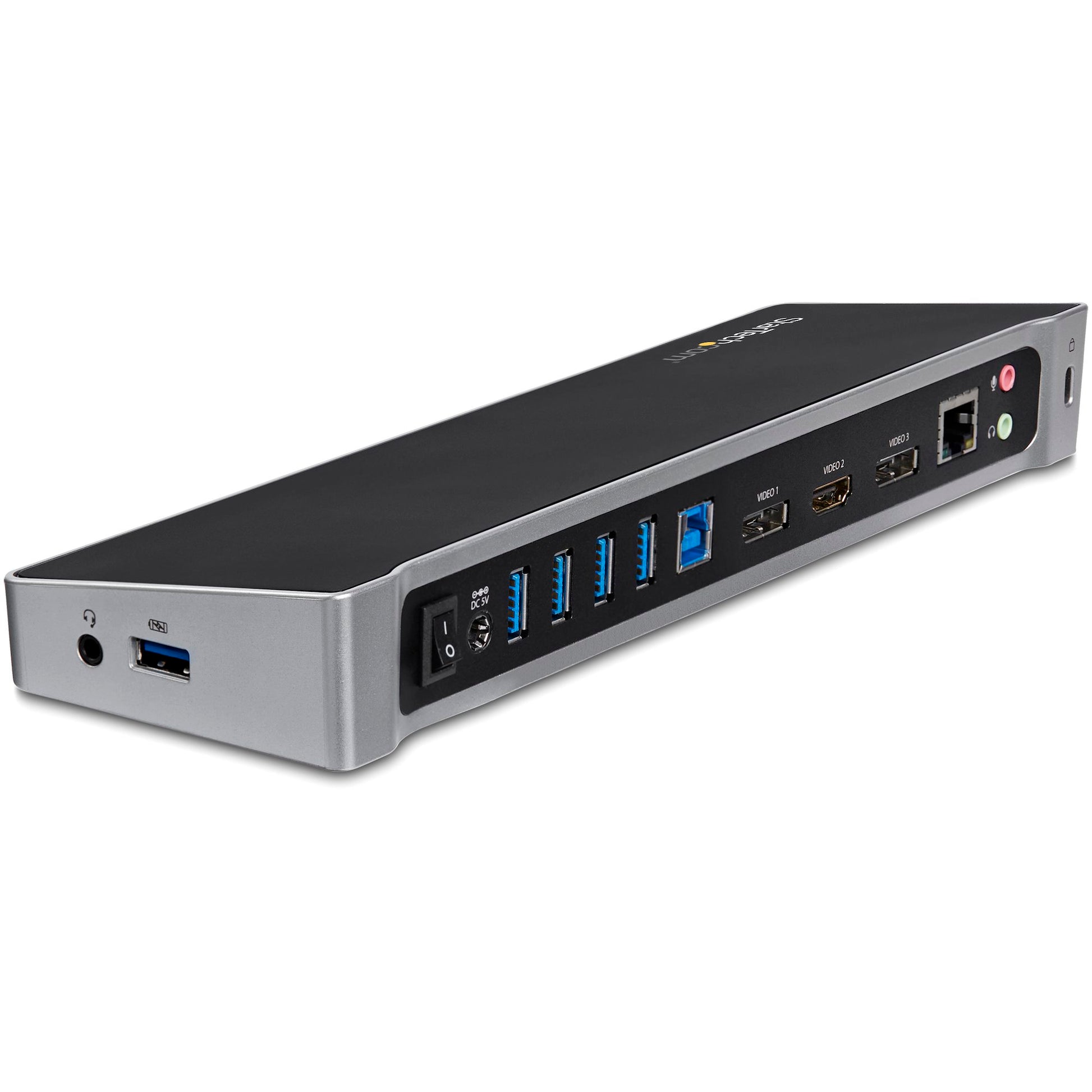

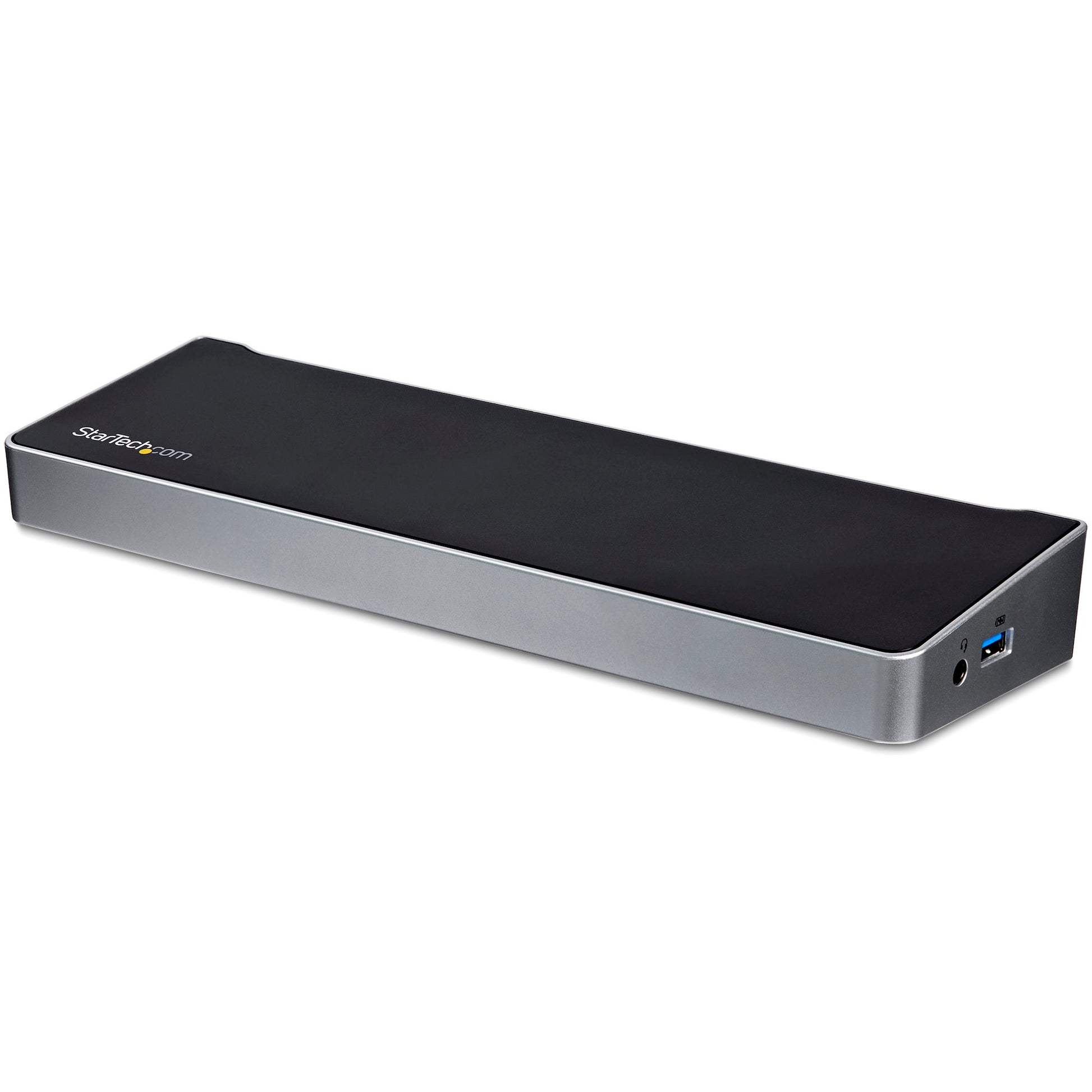

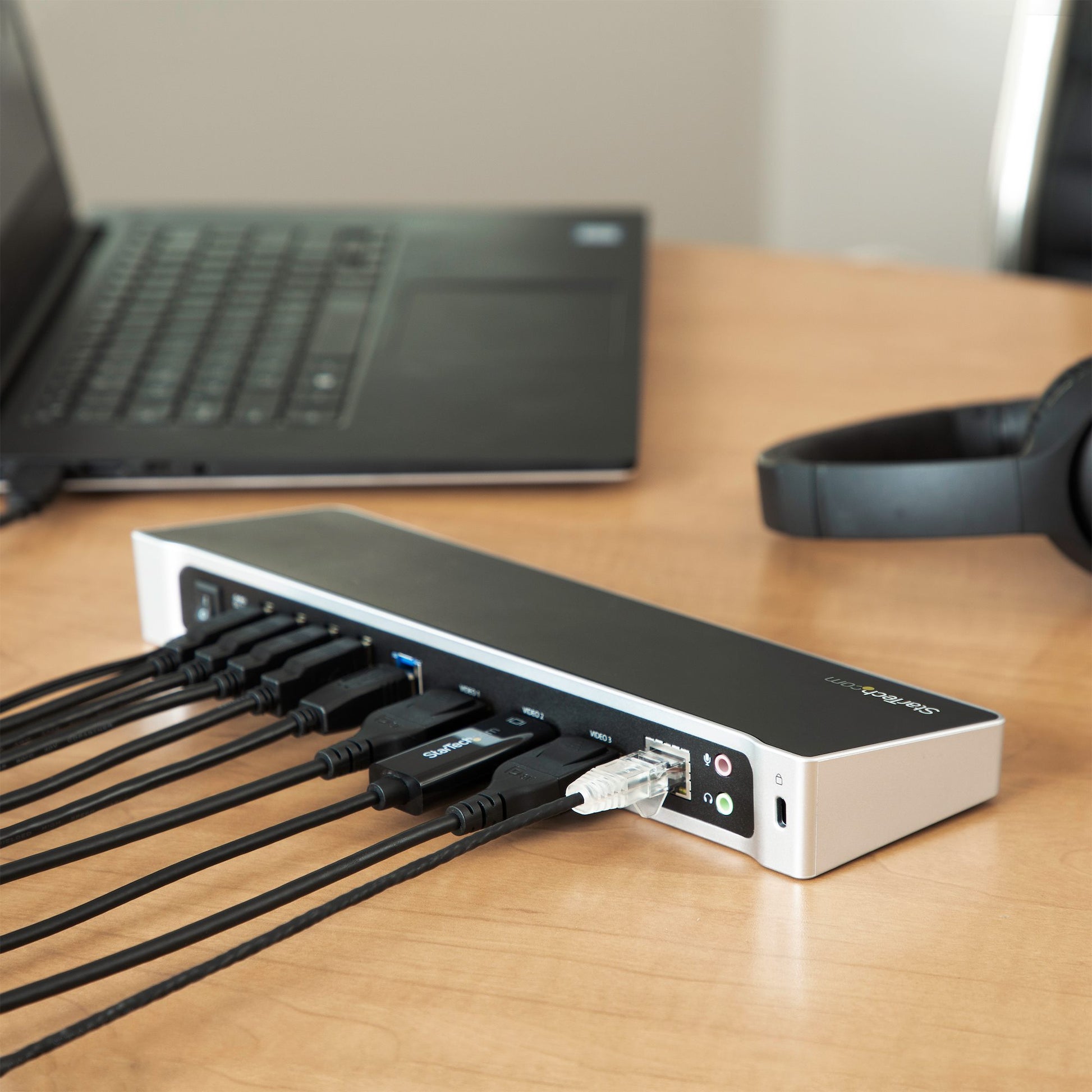

Triple Monitor USB 3.0 Docking Station with 2x 4K DisplayPort & HDMI - 5 Port USB-A Hub (1x Fast-Charge), 3.5mm Audio, GbE - USB Type A Universal Laptop Dock for MacOS / Windows - TAA

This triple-monitor docking station turns your USB 3.0 laptop into a full workstation with two DisplayPort outputs and an HDMI output. Plus, unlike some proprietary docks that only work with specific brands of laptop, this dock is universal, working with your Mac or Windows computer with USB 3.0.

Specifications:

• Warranty: 1 Years
• Package Quantity: 1

Connector(s):

• Connector Type(s):
  • 2 - DisplayPort (20 pin)
  • 1 - HDMI (19 pin)
  • 1 - USB 3.2 Type-A (9 pin, Fast-Charge)
  • 4 - USB Type-A (9 pin, 5 Gbps)
  • 1 - RJ-45
  • 1 - 3.5 mm Mini-Jack (4 Position)
  • 2 - 3.5 mm Mini-Jack (3 Position)
  • 1 - USB 3.2 Type-B (9 pin, Gen 1, 5Gbps)
  • 1 - Security Lock Slot

Environmental:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -10°C to 80°C (14°F to 176°F)
• Humidity: 0~90% RH

Hardware:

• 4K Support: Yes
• Fast-Charge Port(s): Yes
• Displays Supported: 3
• Bus Type: USB 3.2 Gen 1 (5Gbps)
• Compatible Lock Slot: Kensington Standard Slot (K-Slot)
• Industry Standards:
  • USB Battery Charging Specification Rev. 1.2
  • IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
  • USB 3.0 - Backward compatible with USB 2.0/1.1
• Chipset ID:
  • VIA/VLI - VL812
  • Realtek - RTL8211F
  • DisplayLink DL5911
  • DisplayLink DL5915
• Indicators:
  • 1 - Link (Green)
  • 1 - Activity (Amber)

Packaging Information:

• Shipping Weight: 2.3 lb (1.0 kg)
• Package Dimensions:
  • Height: 2.8 in (7.0 cm)
  • Length: 6.3 in (16.1 cm)
  • Width: 11.6 in (29.5 cm)

Performance:

• Maximum Data Transfer Rate:
  • 5 Gbps (USB 3.0)
  • 2 Gbps (Ethernet; Full-Duplex)
• Maximum Digital Resolutions:
  • 3840 x 2160 @ 30Hz (DisplayPort Video 1 - Single Display)
  • 2560 x 1600 (DisplayPort Video 3 - Single Display)
  • 2560 x 1440 (HDMI - Single Display)
  • Lower resolutions are also supported (e.g., 2560 x 1600p, 2560 x 1440p)
  • Please refer to the manual for supported resolutions with different display combinations (up to three external displays).
• UASP Support: Yes
• Compatible Networks: 10/100/1000 Mbps
• Auto MDIX: Yes
• Full Duplex Support: Yes

Physical Characteristics:

• Weight of Product: 13.3 oz (376 g)
• Color: Black & Silver
• Material: Plastic
• Product Dimensions:
  • Length: 10.6 in (27 cm)
  • Width: 3.2 in (8.2 cm)
  • Height: 1.3 in (3.4 cm)

Power:

• Power Source: AC Adapter Included
• Input Voltage: 100 - 240 AC
• Input Current: 1.5 A
• Output Voltage: 5 DC
• Output Current: 6.5 A
• Center Tip Polarity: Positive
• Plug Type: N
• Power Consumption (in Watts): 32.5 W

Software Compatibility:

• OS Compatibility:
  • Windows® 7, 8, 8.1, 10, 11
  • macOS 10.8 - 10.12, 10.14 - 10.15, 11.0, 12.0, 13.0, 14.0, 15.0
  • Chrome OS™ v55+
  • Ubuntu 18.04, 20.04, 22.04, 24.04

Special Notes / Requirements:

• System and Cable Requirements:
  • USB-enabled computer with an available USB 3.0 port
• Note:
  • 4K resolution is supported only on the DisplayPort Video 1 port. A 4K-capable DisplayPort display is required to achieve 4Kx2K resolutions.
  • Performance may be limited if connected to a USB 2.0 host port or using a USB 2.0 host connection cable (USB 3.0 host cable included).
  • USB 3.0 is also known as USB 3.1 Gen 1, supporting speeds up to 5Gbps.

What's in the Box:

• 1 - Triple-video laptop docking station
• 1 - 3.3 ft (1 m) USB 3.0 host cable
• 1 - Universal power adapter (NA/EU/UK/AU)
• 1 - Instruction manual
