Hazardous Location Receptacle, 2-Pole 3-Wire, 20 Amp, 24V DC, C1D2 ATEX IEC-Ex Rated
Hazardous Location Receptacle, 2-Pole 3-Wire, 20 Amp, 24V DC, C1D2 ATEX IEC-Ex Rated
HLO-EX-20A-2P3W-24VDC Hazardous Location Receptacle | Ratings/Approvals |
Listing: NRTL Listed for North America, Europe, Brazil, Korea & International Locations | NEC, CEC, ATEX, IEC Ex Rated |
Device Series: IEC 60309 (International Standard) | Class I, Division 2, Groups A, B, C, D |
Device Type: Hazardous Location Receptacle | Class I, Zone 1 & 2, Groups IIC, IIB, IIA |
Dimensions: 9.13"-H x 4.13"-W x 6.6"-D | Class II, Divisions 1 & 2, Groups E, F, G |
Weight: - | Class III, Divisions 1 & 2 |
Amperage Rating: 20A | Approved for Zone 1 and 2 |
Voltage:Â 24V DC | Approved for Zone 21 and 22 |
Frequency: 50/60 Hz | Ex db eb IIC T6 Gb |
Phase: Single Phase | Ex tb IIIC T80 °C Db |
Horsepower: 3HP @ 250V | Ex II 2 G Ex db eb IIC T6 Gb |
Configuration: 2P3W | Ex II 2 D Ex tb IIIC T80 °C Db |
# of Poles: 2-Pole | NRTL Certified to IEC 60079 |
# of Wires: 3-Wire | NRTL Certified to EN 60079 |
Max Voltage Rating:Â 30V DC | CE Certified |
Clock Hour:Â 10H | RoHS Certified |
Color Code:Â White | NEMA 3, 4, 4X |
Cable Gland Hub: (1) 3/4" NPT | IP66 Weatherproof |
Protection: Interlocking Switch Mechanism & Padlockable | Compatible with IEC 60309 Compliant Products |
# of Operations: > 5000 connects/disconnects under load, at full rated current and voltage | Certified for Full Load Interrupting |
Minimum Withdrawal Force: 5lbs | Â |
Temperature Rise: Max +30°C at full-rated current after 50 cycles of OL at 150% rated current |  |
Operating Temperature Range: -55°C to +65°C |  |
Waterproof Rating: IP65, NEMA 4X | Â |
Shock Resistance: IK09 | Â |
Flammability: V-2 Rated | Â |
Cable Secureness: "Force: 30lb; Torque: 0.4 ft-lb; Max Disp: <= 3/32" | Â |
Seals: Neoprene | Â |
Material, Housing Body: Polyamide | Â |
Material, Housing Cover: Polyamide | Â |
Material, Contacts: Brass | Â |
Material, Contact Carrier: Nylon | Â |
Material, External Screws: Acid-Proof Stainless Steel | Â |
Material, Internal Screws:Stainless Steel | |
Material, Phase/Ground Sleeves: Brass | |
Material, Sleeve Spring: Stainless Steel | |
Material, Terminal Screws: Stainless Steel | |
Shipping Dimensions: - | |
Shipping Weight: - |

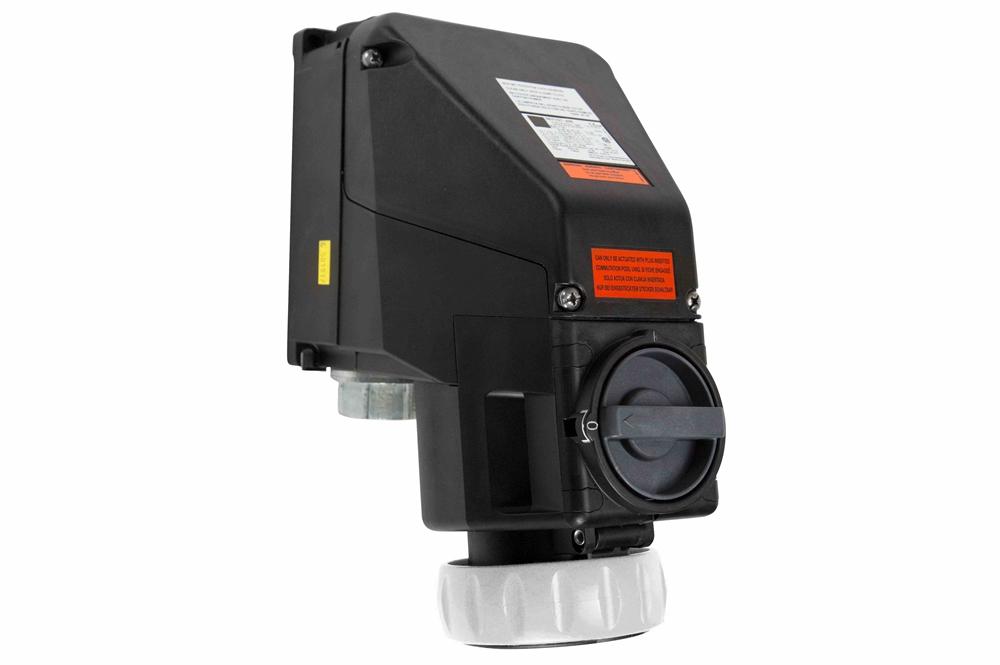

The Larson Electronics HLO-EX-20A-2P3W-24VDC Single Phase Hazardous Location Receptacle is a Class 1, Division 2 and Class 2, Divisions 1 & 2 rated receptacle approved for use in hazardous environments where flammable or explosion gases, vapors, or dusts stand the potential to exist and where flammable dusts, fibers, or flyings exist. This 2-pole, 3-wire outlet is designed to provide a secure connection for electrical equipment within the hazardous location. This receptacle is certified for NEC, CEC, ATEX, and IEC Ex rated hazardous locations. This hazardous location 2-pole 3-wire receptacle is compatible with our HLP-EX-20A-2P3W-24V hazardous location power plugs. This outlet is rated for 20 amps and is suitable for Class I, Division 2, Class II, Divisions 1 & 2, Zones 1 & 2, and Zones 21 & 22 locations. With NEMA Type 3, 4, 4x and IP66 ratings, this plug is suitable for outdoor, marine and wet location. This hazardous location plug features polyamide construction, a 20 amp current rating, and is operates on 24V DC. This plug is coded white to indicate its voltage rating and ground pin position of 10. The color coding of these units makes it impossible to connect different voltages and current ratings, to ensure safe power connection. This single phase receptacle contains a 3 horsepower disconnect switch. The circuit cannot be energized until the plug is inserted and the switch is turned to the on position, and an interlocking switch mechanism feature prevents accidental removal of the plug from the receptacle during operation. The switch can be padlocked in the on or off position. This hazardous location outlet features polyamide construction and a maximum voltage rating of 24V DC @ 50/60 Hz. With NEMA Type 3, 4, 4x and IP66 ratings, this receptacle is suitable for outdoor, marine and wet location. This hazardous location single phase receptacle has a 2 wire 16-10 AWG terminal capacity and a ¾†NPT bottom entry. This unit has a short circuit current rating of 10kA sym RMS and operates with a T6 ambient temperature rating of -50ºC to +55ºC. Suggested Applications: Chemical and pharmaceutical manufacturing, petrochemical operations, offshore applications, coal mining and other refinery or industrial operations. |
 |
