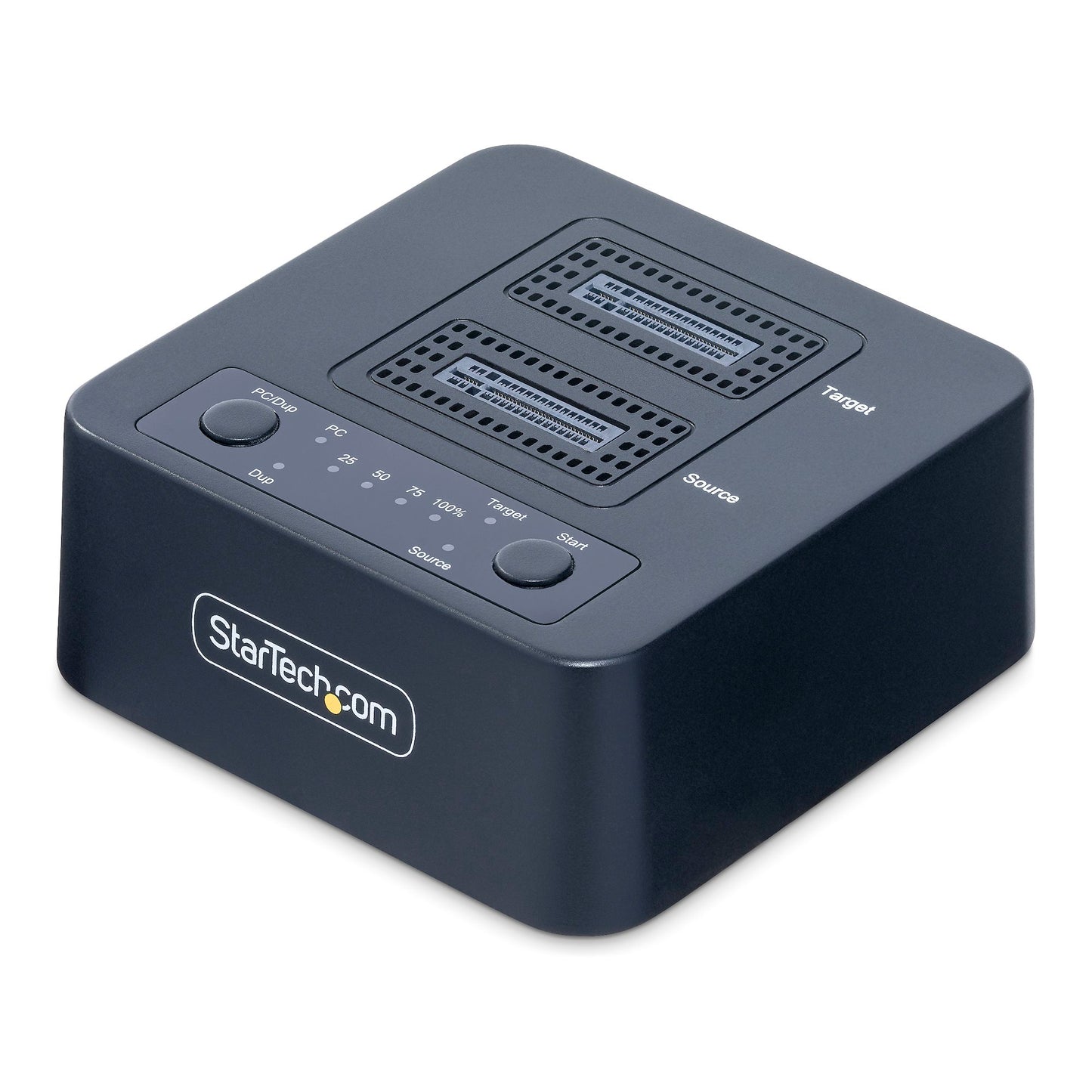

1:1 M.2 NVMe Drive Duplicator, Standalone M.2 SSD Cloner/Copier up to 90GBpm, USB 3.2 20Gbps M.2 Dual-Bay Drive Dock, USB-C/A Cables Included
1:1 M.2 NVMe Drive Duplicator, Standalone M.2 SSD Cloner/Copier up to 90GBpm, USB 3.2 20Gbps M.2 Dual-Bay Drive Dock, USB-C/A Cables Included
- STANDALONE M.2 DUPLICATOR: Clone or duplicate M.2 NVMe solid-state drives (SSDs) without the need for a computer; High performance sector-by-sector duplication rates of up to 90GBpm; Works with any file format and copies the entire drive
- M.2 DRIVE DOCK: USB 3.2 Gen2x2 (20Gbps) host connection enables external access and storage functionality for M.2 NVMe drives, facilitating data transfer between different computers without the need to install the drives internally
- COMPACT & USER-FRIENDLY: Small form factor requires minimal desktop or storage space; LEDs indicate power, progress, and SMART status; Audible buzzer confirms duplication completion; Active and passive cooling ensure optimal performance
- COMPATIBILITY: No drivers or software required; Top-loading (toaster-style) design ensures all PCIe M.2 (M-Key) will fit, even those with pre-installed heat sinks; Supports 4Kn sector size; Target disk must be equal to or larger than the source disk
-
APPLICATIONS: Standalone solution for cloning M.2 NVMe drives without using computer resources; Ideal for data backup, hardware upgrades, IT system imaging and support tasks, routine maintenance, and educational environments
Specifications:
- Warranty: 1 Years
-
Connector(s):
-
Drive Connectors:
- 2 - M.2 (NVMe, M-Key, PCIe x4)
-
Host Connectors:
- 1 - USB Type-C (24 pin, Gen 2x2, 20Gbps)
-
Other Interface(s):
- 1 - Barrel Power Connector (Size M, OD: 5.50mm, ID: 2.10mm)
-
Drive Connectors:
-
Environmental:
- Operating Temperature: 5°C to 55°C (41°F to 131°F)
- Storage Temperature: -20°C to 55°C (-4°F to 131°F)
- Humidity: 20% ~ 80% RH
-
Hardware:
-
Fan(s):
- 1 - 60 mm fan
- Number of Drives: 2
- Drive Size: 22 mm - M.2 NVMe
-
Compatible Drive Types:
- M.2 (PCIe, NVMe, M-Key, NGFF)
- Drive Installation: Removable
- Supported Drive Heights: 2230, 2242, 2260, 2280, 22110
- Chipset ID: JMS586U
-
Indicators:
- 4 - Progress LEDs: Indicates 25%, 50%, 75%, and 100% progress during duplication process
-
2 - Drive LEDs:
- Solid Blue: M.2 Drive is detected
- Flashing Red: Error reading the M.2 Drive or M.2 Drive removed during duplication
- Solid Purple: Target M.2 Drive is too small to duplicate to
-
2 - Mode LEDs:
- Solid Green: PC Mode
- Solid Blue: Duplicator Mode
-
Fan(s):
-
Performance:
- Duplication Modes: Sector by Sector (Whole Drive)
- Duplication Speed: 90GB per minute
- Hot Swap Capability: No
- MTBF (Mean Time Between Failures): 50,000 Hours
-
Physical Characteristics:
- Color: Black
- Material: Plastic
-
Product Dimensions:
- Height: 1.7 in (4.4 cm)
- Length: 3.0 in (7.7 cm)
- Width: 3.0 in (7.7 cm)
- Weight of Product: 4.6 oz (129.0 g)
- Cable Length: 39.4 in (100 cm)
-
Power:
- Power Source: AC Adapter Included
- Input Voltage: 100 - 240 AC
- Input Current: 0.6A
- Output Voltage: 12V DC
- Output Current: 2A
- Center Tip Polarity: Positive
- Plug Type: M
- Power Consumption (In Watts): 0.1W
-
Software Compatibility:
- OS Compatibility: OS Independent - No Drivers or Software Required
-
Special Notes / Requirements:
- For duplication, the target drive must be of equal or greater size than the source drive.
- Duplication speed of up to 90 GB per minute achieved in benchmark testing environment; actual speed may vary based on drive model, algorithm, and other factors.
-
Included in Package:
- 1 - M.2 Drive Duplicator Dock
- 1 - 3.3ft (1m) USB-C to USB-C Cable
- 1 - 3.3ft (1m) USB-A to USB-C Cable
- 1 - Universal Power Adapter (NA/EU/UK/ANZ)
- 1 - Quick-Start Guide
-
Packaging Information:
-
Package Dimensions:
- Height: 3.7 in (9.5 cm)
- Length: 3.5 in (9.0 cm)
- Width: 6.3 in (16.0 cm)
- Shipping Weight: 1.1 lb (0.5 kg)
- Package Quantity: 1
-
Package Dimensions:
