Description

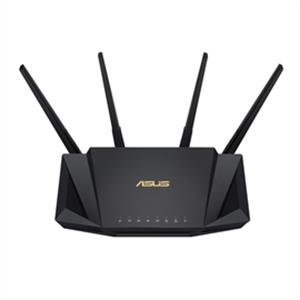

AX3000 Dual Band WiFi 6 (802.11ax) Router supporting MU-MIMO and OFDMA technology, with AiProtection Pro network security powered by Trend Micro™, compatible with ASUS AiMesh WiFi system
• Next-Gen Wi-Fi Standard - Supporting the latest Wi-Fi standard 802.11AX (Wi-Fi 6) and 160MHz bandwidth for better capacity and efficiency.
• Ultra-fast Wi-Fi Speed – RT-AX58U supports 160MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 3000Mbps — 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band.
• Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously
• Commercial-grade Security - lifetime free AiProtection, powered by Trend Micro™, blocks internet security threats for all your connected smart devices.
• Better Partner with Mesh System - Compatible with ASUS AiMesh Wi Fi system for seamless whole-home coverage.
• Next-Gen Wi-Fi Standard - Supporting the latest Wi-Fi standard 802.11AX (Wi-Fi 6) and 160MHz bandwidth for better capacity and efficiency.
• Ultra-fast Wi-Fi Speed – RT-AX58U supports 160MHz bandwidth and 1024-QAM for dramatically faster wireless connections. With a total networking speed of about 3000Mbps — 574 Mbps on the 2.4GHz band and 2402 Mbps on the 5GHz band.
• Increase Capacity and Efficiency – Supporting not only MU-MIMO but also OFDMA technique to efficiently allocate channels, communicate with multiple devices simultaneously
• Commercial-grade Security - lifetime free AiProtection, powered by Trend Micro™, blocks internet security threats for all your connected smart devices.
• Better Partner with Mesh System - Compatible with ASUS AiMesh Wi Fi system for seamless whole-home coverage.
Specifications
Network Standard IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax, IPv4, IPv6 |
Product Segment AX 3000 (2402Mbps+574Mbps) |
Coverage Large homes |
Data Rate 802.11a : 6,9,12,18,24,36,48,54 Mbps 802.11b : 1, 2, 5.5, 11 Mbps 802.11g : 6,9,12,18,24,36,48,54 Mbps 802.11n : up to 300 Mbps 802.11ac : up to 867 Mbps 802.11ax (2.4GHz) : up to 574 Mbps 802.11ax (5GHz) : up to 2402 Mbps |
Antenna External antenna x 4 |
Transmit/Receive 2.4 GHz 2 x 2 5 GHz 2 x 2 |
Processor 1.5 GHz tri-core processor |
Memory 256 MB Flash 512 MB RAM |
Wi-Fi Technology OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
Operating Frequency 2.4 GHz / 5 GHz |
Encryption WPA3-PSK, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPS support |
Firewall and Access Control Firewall: SPI intrusion detection, DoS protection Access controlParental control, Network service filter, URL filter, Port filter |
Management UPnP, IGMP v1/v2/v3, DNS Proxy, DHCP, NTP Client, DDNS, Port Trigger, Port Forwarding, DMZ, System Event Log |
VPN Support IPSec Pass-Through PPTP Pass-Through L2TP Pass-Through PPTP server OpenVPN server PPTP client L2TP client OpenVPN client |
WAN Connection Type Internet connection type : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP |

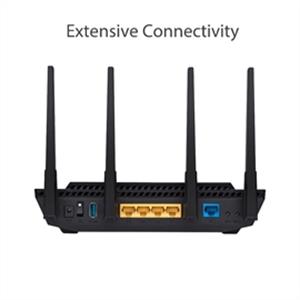

Ports RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4 USB 3.1 Gen 1 x 1 |
Features Router app MU-MIMO Traffic Analyzer Adaptive QoS AiProtection Pro Parental Control Guest Network : VPN server : PPTP Server, IPSec server VPN client : PPTP client, L2TP client, OpenVPN client NAT Pass-Through :PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay Mac OS Backup Enhanced media server (AiPlayer app compatible) - Image : Jpeg - Audio : mp3, wma, wav, pcm, mp4, lpcm, ogg - Video : asf, avi, divx, mpeg, mpg, ts, vob, wmv, mkv, mov AiCloud personal cloud service 3G/4G data sharing Printer Server - Multifunctional printer support (Windows only) - LPR protocol support Download Master - Support bt, nzb, http, ed2k - Support encryption, DHT, PEX and magnet link - Upload and download bandwidth control - Download scheduling AiDisk file server - Samba and FTP server with account management IPTV support Roaming Assist OFDMA Beamforming |
Button WPS Button, Reset Button, Power Switch |
LED Indicator Power x 1 2.4G x 1 5G x 1 LAN x 4 WAN x 1 |
Power Supply AC Input : 110V-240V(50-60Hz) DC Output : 19 V with max. 1.75 A current |
OS Support Windows 10 Windows 8 Windows 7 Mac OS X 10.6 Mac OS X 10.7 Mac OS X 10.8 |
Operation mode Wireless router mode Access point mode Media bridge mode |
Item Dimension (L inchxW inchxH inch) 14 x 11 x 4 Weight 5.00 lb Warranty Information 1 years |
