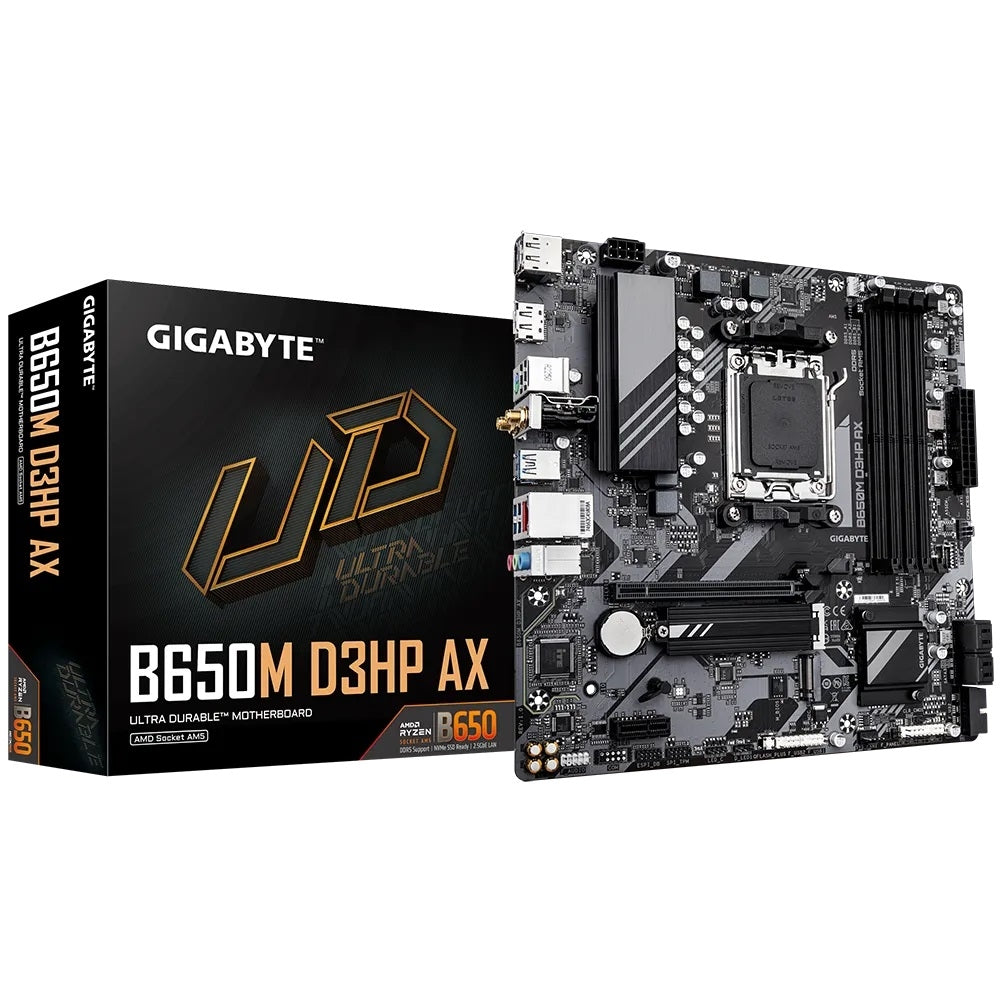

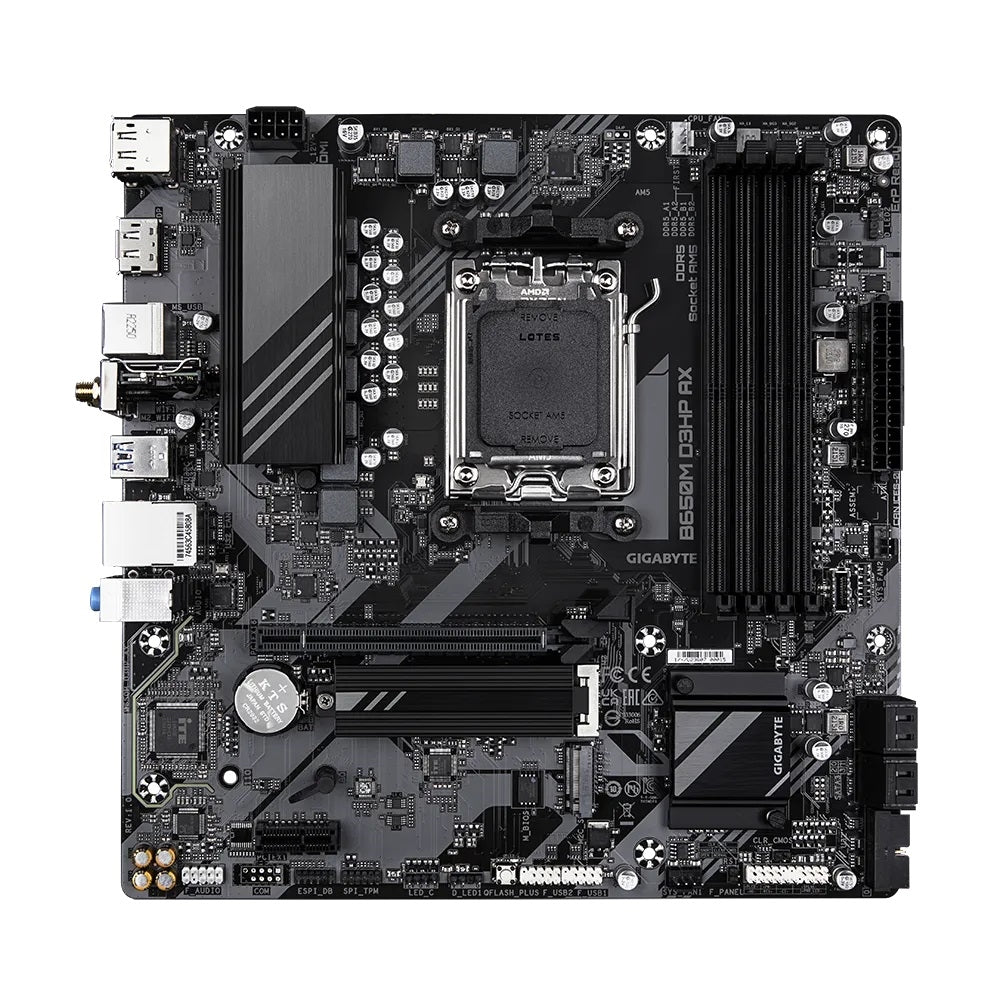

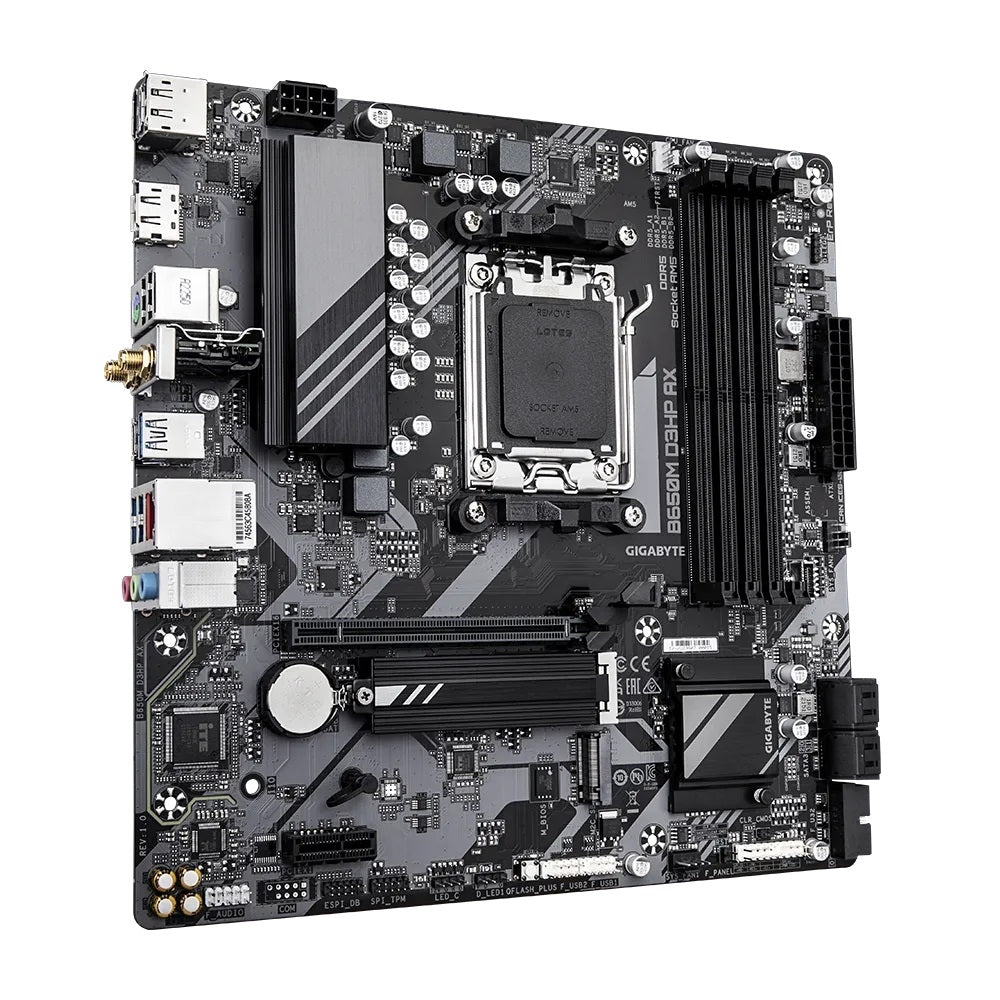

Gigabyte MB B650M D3HP AX Socket AM5 B650 Max192G DDR5 Micro ATX
Gigabyte MB B650M D3HP AX Socket AM5 B650 Max192G DDR5 Micro ATX
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Digital VRM Design
5+2+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
EXPO & XMP Support
DDR5 EXPO & XMP Overclocking Up to 7600 and Beyond*
GIGABYTE is offering a tested and proven platform that the memory overclocking capability is able up to 7600 and beyond. All users need to do for achieving this extreme memory performance boost is to ensure that their DDR5 memory modules are AMD EXPO™/ Intel® XMP capable, the EXPO/XMP function is activated and enabled on their GIGABYTE motherboard.
* EXPO/XMP profiles support may vary depending on memory modules.
* Please refer the completed validated memory support list.
* Product features may vary by model.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Specifications:
| CPU AMD Socket AM5, support for: AMD RyzenTM 7000 / RyzenTM 8000 Series Processors (Go to GIGABYTEs website for the latest CPU support list.) Chipset AMD B650 Memory Support for DDR5 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPOTM) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTEs website for more information.) |
| Onboard Graphics Integrated Graphics Processor with AMD RadeonTM Graphics support - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160 at 144 Hz 1 Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160 at 60 Hz 1 Support for HDMI 2.1 version and HDCP 2.3. 2 Support for native HDMI 2.1 TMDS compatible ports. Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.) |
| Audio Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel 1 You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
| LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication module Realtek Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless (Actual data rate may vary depending on environment and equipment.) |
| Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD RyzenTM 7000 Series Processors support PCIe 4.0 x16 mode - AMD RyzenTM 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD RyzenTM 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode 1 The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
| Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD RyzenTM 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD RyzenTM 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD RyzenTM 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB CPU: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |

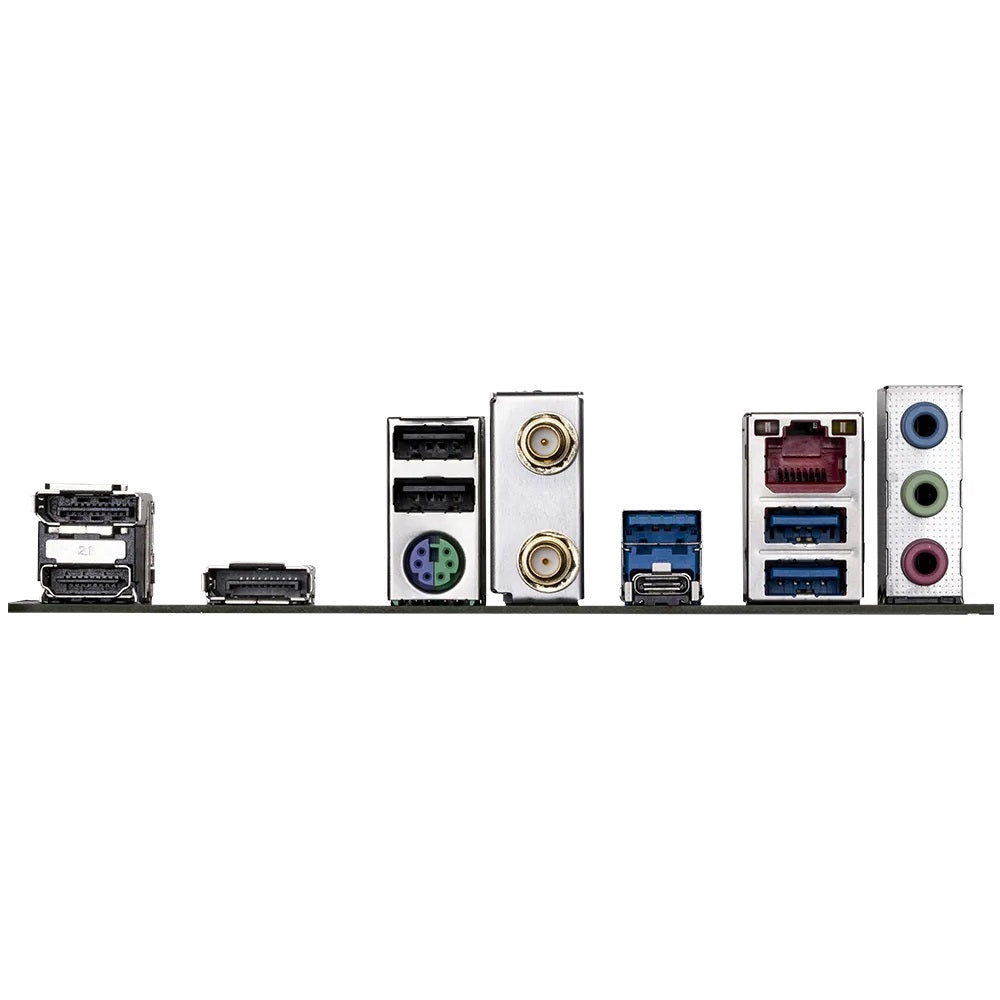

| Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks |
| I/O Controller iTE I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Fan fail warning Fan speed control 1 Whether the fan speed control function is supported will depend on the fan you install. |
| BIOS 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features Support for GIGABYTE Control Center (GCC) 1 Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
| Bundled Software Norton Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor Micro ATX Form Factor, 24.4cm x 24.4cm |
| Item Dimension (L inchxW inchxH inch) 11 x 11 x 3 Weight 3 lbs Warranty Information 1 Years |
