Anti-Shock Mount for Lights and Other Equipment - M8x1.25 - Integrated Rubber Bushings - (1) Mount

LARSON ELECTRONICSSKU: PL3-ASM-2-M8
filler

Price:
Sale price$195.99

Description

Specifications / Additional Information
ASM-2-M8 Stainless Steel Anti-Shock Mount Features
Type: Threaded Anti-Shock Mount Compact Design
Dimensions: 76.2mm L x 76.2mm W x 44.45mm H, Total Height: 146.05mm Stainless Steel Construction
Weight: 1 lbs
Anti-Shock Material: Integrated Rubber Bushings
Mounting: Suspended or Inline Mounting
Threading: M8x1.25
Pitch: 1.25
Shank Length: 4.87mm L
Thread Length: 45.93mm L
Bolt Diameter: 8mm
Materials: Stainless Steel
' Product Overview '

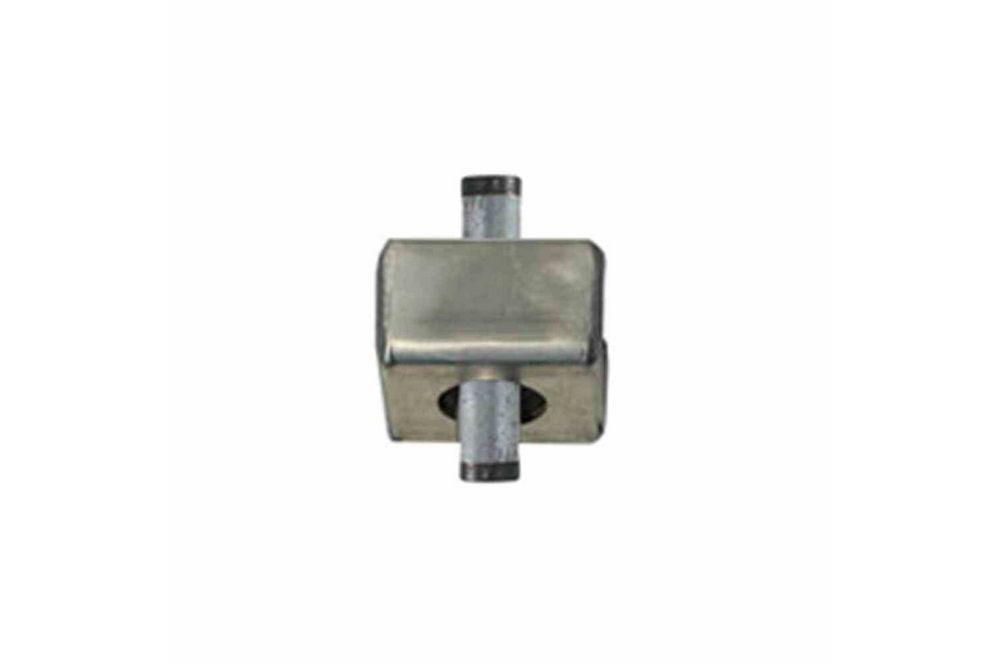

The ASM-2-M8 from Larson Electronics is a Stainless Steel Anti-Shock Mount for lights and other equipment that requires mounting in areas or locations where shocks or vibrations may be encountered. Integrated heavy rubber bushings inside the mount help to absorb vibrations and provide further support for the equipment or lights being mounted. The ASM-2-M8 is a compact anti-shock mount for lights and other equipment. The center part of this mount that contains the integrated rubber bushing measures 76.2mm long, 76.2mm wide and 44.45mm tall. The total height of this anti-shock mount with the threaded pipe included is 146.05 millimeters. That means that the threaded rod extends 50.80 millimeters from both the top and bottom of the rubber bushing section. The threaded rod on this stainless steel anti-shock mount is designed with suspended or inline mounting in mind. The threaded rod that extends from both the top and bottom of the rubber bushing housing features M8x1.25 threading. The shank on this mount measures 4.87 millimeters in length and the bolt diameter is 8 millimeters. One anti-shock mount is included per order.
