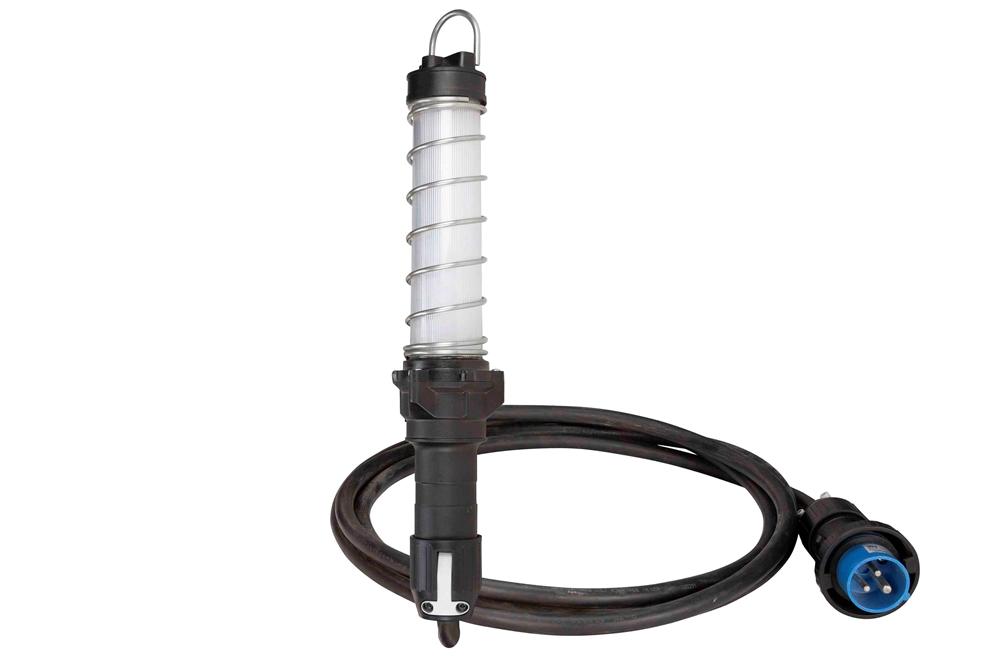

11W Explosion Proof LED Hand Lamp - 12V AC - Wire Guard - 40M 12/3 SOOW w/ Cord Cap - ATEX/IECEx

LARSON ELECTRONICSSKU: PL3-ATEX-EHL-447-LED-WG-12.3-40M-EPP.CE16A-12VAC
filler

Price:
Sale price$3,001.99

Description

Specifications / Additional Information
ATEX-EHL-447-LED-WG-12.3-40M-EPP.CE16A-12VAC Flameproof LED Hand Lamp Ratings/Approval
Listing: NRTL Listed for International; ATEX/IECEx Rated Approved for Zone 1 & Zone 2
Lamp Technology: LED Approved for Zone 21 and Zone 22
Dimensions: 17.59"-L x 3.36 -OD Ex db eb II C T5 Gb
Weight: - Ex tb IIIC T95℃ Db (Ta≤55℃)
Voltage: 120V AC NRTL Certified to IEC 60079
Watts: 11W NRTL Certified to  EN 60079
Lumens: -
Luminous Efficiency: -
Life Expectancy: 50,000+ hours
Light Color: White
Color Rendering Index: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Type: Full
Lighting Configuration: Flood
Efficiency: -
Power Factor: -
Protection: Wire Guard
Amp Draw: -
Ambient Operating Temp Range: -40C to +40C/+55C
Housing Material: Alloy Plastic
Mounting: Handheld, Rotating Hook
Wiring:  40M 12/3 SOOW Cord w/ Flameproof Plug
Wiring: 16A Pin/Sleeve HLP-EX-16A-2P3W
' Product Overview '
The Larson Electronics ATEX-EHL-447-LED-WG-12.3-40M-EPP.CE16A-12VAC Explosion Proof LED Hand Lamp enables operators in ATEX/IECEx rated environments to closely illuminate hazardous areas effectively. The solid-state, 11-watt LED light is protected by a stainless steel mesh wire guard for added durability. This alloy plastic LED lamp comes with 40 meters of 12/3 SOOW cord with a 16-amp explosion proof pin/sleeve plug. The ATEX-EHL-447-LED-WG-12.3-40M-EPP.CE16A-12VAC is a powerful lighting solution for Zone 1/Zone 2 and Zone 21/Zone 22 rated work sites. This 11-watt LED lamp takes on a slim, cylindrical form factor and is protected by a stainless steel wire guard. A full, 360-degree lighting configuration ensures comprehensive illumination during use. This ATEX/IECEx rated light weight explosion proof light is constructed of alloy plastic. Applications for this light includes: repair lighting in hazardous locations, mobile or temporary illumination, task lighting, inspections and more. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Voltage: The ATEX-EHL-447-LED-WG-12.3-40M-EPP.CE16A-12VAC operates on 12V AC. Wiring & Plug: This flameproof portable lamp is equipped with a 40-meter 12/3 SOOW cord and a 16-amp explosion proof pin/sleeve cord cap (). Mounting: The handheld LED light contains a top-located rotating hook, which allows operators to mount the unit on bars, chains, poles, pipes and small openings.
