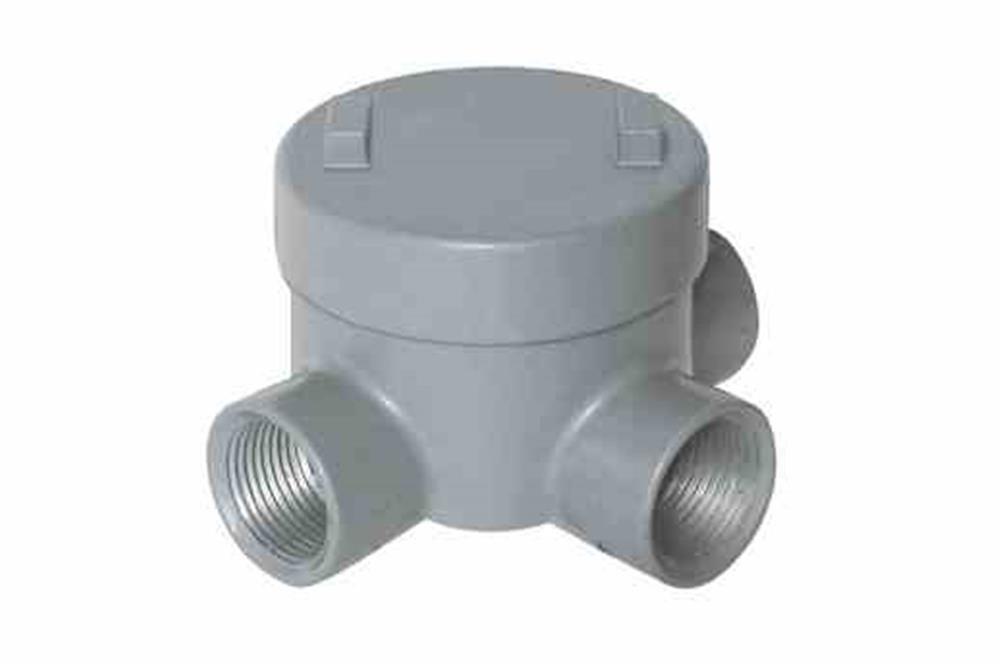

Explosion Proof Outlet Enclosure - Class I, II, III - (3) Ports, Terminal Block - M25 Hubs

LARSON ELECTRONICSSKU: PL3-ATEX-EPJ-3-M25-TB.6
filler

Price:
Sale price$358.00

Description

Specifications / Additional Information
ATEX-EPJ-3-M25-TB.6 Explosion Proof Enclosure Features/Ratings
Unit Type: Explosion Proof Outlet Body Class I, Div. 1&2 Groups C,D
Dimensions: 3 11/16"-D x 3 5/8"-H Class I, Zone 1 & 2 Groups IIB,IIA
Weight: - Class II, Divs. 1 & 2 Groups E, F, G
Cover Opening: 2-11/16" Class III
Ports: 3 Type 3, 4 & 4X
Hub Configuration: T-type
Volume: 19 cu. in.
Materials: Copper-Free Aluminum
Finish: Electrostatically Applied Powder Coating
Mounting: Surface or Conduit Toll Free: 1-800-369-6671
Terminal Rating: 300 V, 20 A Intl: 1-214-616-6180
Wire Size: #22-#12AWG
Hub Size: M25
' Product Overview '
Made in the USA The Larson Electronics ATEX-EPJ-3-M25-TB.6 Explosion Proof Outlet Enclosure offers reliable protection for electrical connections inside combustible work sites. This explosion proof accessory is made out of copper-free aluminum and contains three accessible ports. A 6-point terminal block mounted inside the T-type enclosure faciliates wiring connections. The ATEX-EPJ-3-M25-TB.6 is a sturdy explosion proof outlet body for electrical connections in flammable environments. This unit features a T-type hub configuration and three ports. Operators may access a 6-point terminal block inside the enclosure, which is mounted on raised pads. Rated at 300V/20A, the terminal block accepts wire sizes ranging between #22-#12AWG. This explosion proof accessory is constructed of copper-free aluminum and finished with an electrostatically-applied powder coating. The compact unit features a cover that is ideal for wet locations when mounted upright. Equipped with external cover threads to prevent damage when pulled, the explosion proof outlet body is suitable for Class I, Division 1 & 2; Class I, Zone 1 & 2; Class II, Division 1 & 2; and Class III flammable work sites. Mounting: The ATEX-EPJ-3-M25-TB.6 is compatible with surface or conduit mount configurations and is equipped with three M25 hubs for completing connections during installation. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural operations, grain storage centers, harsh environments, rugged work sites, marine locations, wet locations and more.
