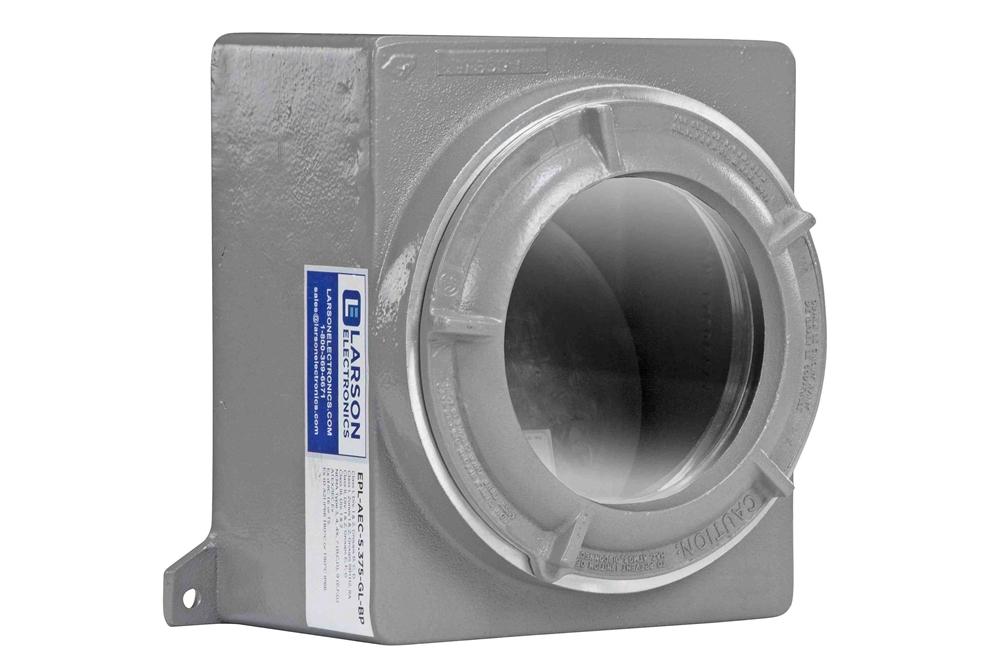

Explosion Proof Device Instrument Enclosure - Class I, II, III - ATEX/IECEX - Sapphire Glass Lens

LARSON ELECTRONICSSKU: PL3-ATEX-EPL-AEC-9.63-V3-GL-MOD1
filler

Price:
Sale price$9,018.99

Description

Specifications / Additional Information
ATEX-EPL-AEC-9.63-V3-GL-MOD1 Explosion Proof Device Box Instrument Enclosure Ratings/Approvals
Listing: United States, Canada, European Union, International Class I, Division 1&2 Groups B,C,D
Device Type: Explosion Proof Instrument Enclosure Class I, Zones 1&2 Groups IIB+H2,IIA
External Dimensions: 12" x 11" x 16" Class II, Division 1&2 Groups E,F,G
Internal Dimensions:  9.5" x 10.5" x 13.56" Class III, Division 1&2
Internal Volume: 1405 cu. in. Type 3, 4, 4X
Lens Opening: 7.75" ATEX/IEC Ex
Weight: 80 lbs Ex d IIC T6 or T5
Material: Copper-free Aluminum Ex tD A21 IP66 T80°C or T90°C IP66
Enclosure Finish: Electrostatically Applied Powder Epoxy/Polyester Finish Ta = -20°C to +60°C
Lens Material: Sapphire Glass Lens
Mounting: Surface
Design: Single Box w/ Lens Cover
Total Hubs: 4
Hub Sizes: (1) 1/2" NPT (XRL Cable), (1) 3/4" NPT (Power/Data Cable) + (2) Hubs for Water Line Pass Through Connections
Hub Location: (4) Hubs @ South Side of Enclosure
Color: Gray
' Product Overview '
The ATEX-EPL-AEC-9.63-V3-GL-MOD1 from Larson Electronics is an Explosion Proof Device Box Instrument Enclosure that houses compact instruments or devices used in hazardous locations, confined spaces and industrial facilities. This IP66-rated unit contains a 7.75" lens opening and is constructed of copper-free aluminum. The explosion proof enclosure may be used to comply with domestic and international code requirements, while providing protection for operators and nearby workers. The ATEX-EPL-AEC-9.63-V3-GL-MOD1 offers protection from explosive hazards and ignitions, dust, harsh weather and rough treatment (tampering). This unit is equipped with a 7.75" lens opening and 1,405 cubic inches of volume for customer-provided equipment. Constructed of copper-free aluminum with a powder epoxy/polyester finish, the ATEX/IECEX-rated enclosure is protected by a sapphire glass lens. Cast mounting lugs are available for mounting. This IP66 unit is rated NEMA Type 3, 4 and 4X and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Hubs: The ATEX-EPL-AEC-9.63-V3-GL-MOD1 contains a total of four hubs for completing various connections. All four hubs are located at the south side of the explosion proof enclosure. One, 1/2" NPT hub is available for an XRL cable connection; and one 3/4" NPT hub is provided for power/data connections. The other two hubs can be used to pass water line connections. Mounting: This enclosure is compatible with surface-mounting applications. During installation, four mounting holes located at every corner of the unit facilitates secure placement on flat surfaces. Applications: Flow measurement devices, temperature monitors, two-wire transmitters, gas detectors, Ph analyzers, pressure gauges, level detectors, H2S monitors, transducers, pressure switches and other compact industrial instruments/devices.
