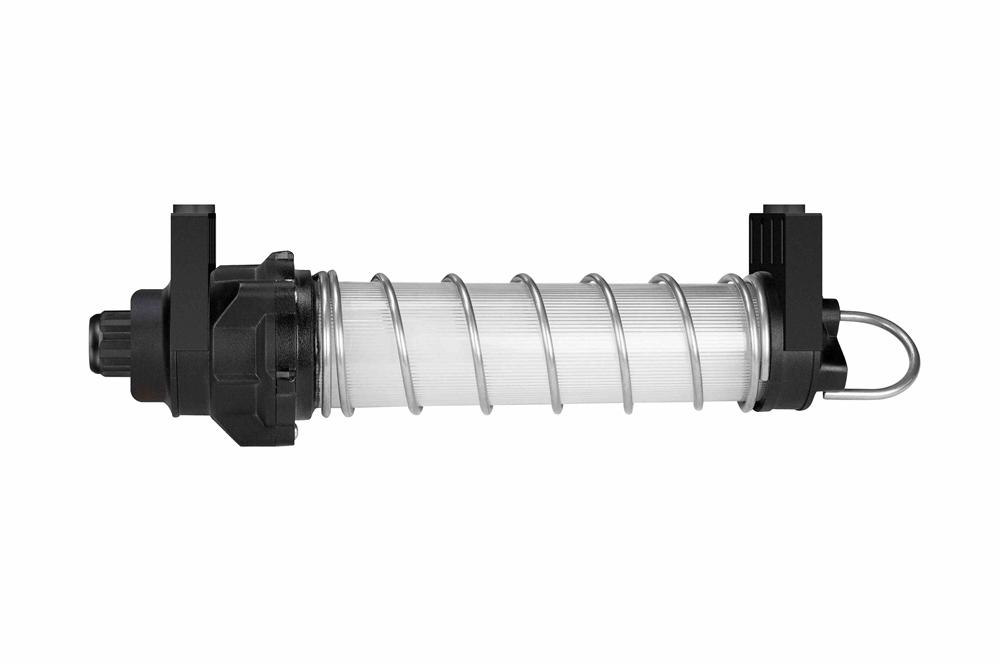

11W Explosion Proof LED Lamp - Wire Guard - Surface Mount - ATEX/IECEx

LARSON ELECTRONICSSKU: PL3-ATEX-EPL-LP-12-LED-WG-R1
filler

Price:
Sale price$1,219.99

Description

Specifications / Additional Information
ATEX-EPL-LP-12-LED-WG-R1 Flameproof LED Lamp Ratings/Approval
Listing: NRTL Listed for International; ATEX/IECEx Rated Approved for Zone 1 & Zone 2
Lamp Technology: LED Approved for Zone 21 and Zone 22
Dimensions: 17.59"L x 3.36OD Ex db eb II C T5 Gb
Weight: - Ex tb IIIC T95℃ Db (Ta≤55℃)
Voltage: 100-250 V AC, 12-48 V DC, 48-72 V AC, 12-36 V AC, 70-110 V DC, 125 V DC, or 250 V DC NRTL Certified to IEC 60079
Watts: 11W NRTL Certified to EN 60079
Lumens: -
Luminous Efficiency: -
Life Expectancy: 50,000+ hours
Light Color: White
Color Rendering Index: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Type: Full
Lighting Configuration: Flood
Efficiency: -
Power Factor: -
Protection: Wire Guard Special Orders - Requirements
Amp Draw: 0.09 A @ 120 V, 0.04 A @ 250 V
Ambient Operating Temp Range: -40°C to +40°C/+55°C
Housing Material: Alloy Plastic
Mounting: Surface Mount
Protection: Wire Guard
' Product Overview '
The Larson Electronics ATEX-EPL-LP-12-LED-WG-R1 Explosion Proof LED Surface Mount Lamp enables operators in ATEX/IECEx rated environments to closely illuminate hazardous areas effectively. The solid-state, 11-watt LED light is protected by a stainless steel mesh wire guard for added durability. The ATEX-EPL-LP-12-LED-WG-R1 is a powerful lighting solution for Zone 1/Zone 2 and Zone 21/Zone 22 rated work sites. This 11-watt LED lamp takes on a slim, cylindrical form factor and is protected by a stainless steel wire guard. A full, 360-degree lighting configuration ensures comprehensive illumination during use. This ATEX/IECEx rated light weight explosion proof light is constructed of alloy plastic. Applications for this light includes: repair lighting in hazardous locations, mobile or temporary illumination, task lighting, inspections and more. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Voltage: The ATEX-EPL-LP-12-LED-WG-R1 operates on 100-250 V AC, 12-48 V DC, 48-72 V AC, 12-36 V AC, 70-110 V DC, 125 V DC, or 250 V DC. Mounting: The ATEX-EPL-LP-12-LED-WG-R1 is designed to be surface mounted.
