100W Explosion Proof Incandescent Jar Fixture - 230V 50 Hz - ATEX/IECEx - IP66 - Pole Top Mount

LARSON ELECTRONICSSKU: PL3-ATEX-EPL-PT-MJ-100W-230V
filler

Price:
Sale price$2,217.99

Description

Specifications / Additional Information
ATEX-EPL-PT-MJ-100W-230V ATEX Rated Incandescent Lamp Ratings/Approvals
Lamp Type: incandescent ATEX / IECEx Certified
Dimensions: 15.4"-L x 9.2"-D IECEx Ex tb IIIC T90°C Db
Lamp Weight: 10.7 lbs ATEX Ex II 2 G Ex de IIC T4 Gb
Voltage: 230V 50 Hz (220V/230V/240V +/- 6%; 50 Hz Rated) ATEX Ex II 2 D Ex tb IIIC T90°C Db
Total Watts: 6W Zone 1, 2, 21, 22
Lumens: 1,080 IP66
Beam Angle: 360° T4 Temperature Rating
Amperage: 0.65A @ 230V
Ambient Operating Temp Range: -20°C to +40°C
Housing Material: Light Metal
Lens Material: Temp-resistant Pressed Glass
Mounting: Slip Fit Yoke Mount w/ Adjustable Bracket
Wiring Hub: (2) 3/4" NPT
Paint/Color: NA
' Product Overview '

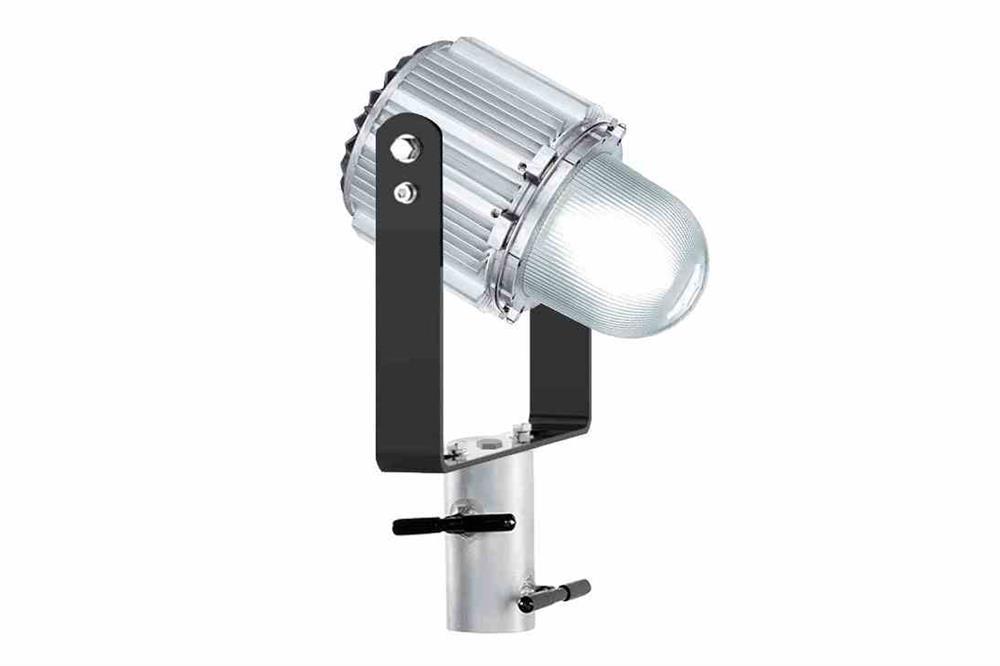

The ATEX-EPL-PT-MJ-100W-230V Explosion Proof Incandescent Jar Fixture with Pole Top Slip Fitter Mount from Larson Electronics is a powerful incandescent lamp for ATEX-rated environments. This 100-watt fixture is compatible with 230V 50 Hz and offers 360 degrees of illumination. This explosion proof light is equipped with two, threaded 3/4" NPT hubs and constructed of light metal. The ATEX-EPL-PT-MJ-100W-230V is an ATEX-rated pole top slip fit mount incandescent fixture for explosive work sites. Equipped with a saltwater resistant housing, this unit operates on 230V 50 Hz. The 100-watt lamp offers 1,080 lumens of output, with a 360-degree beam angle that is highly visible during use. The T4-rated explosion proof luminary is constructed of light metal and protected by a temperature-resistant pressed glass lens. This non-painted unit features an E27 lamp holder and is ATEX rated for Zone 1, 2, 21 and 22. Wiring/Mounting: Operators are provided access to two threaded 3/4" NPT hubs for wiring connections during installation. This pole top slip fit mount explosion proof light features an adjustable swivel bracket constructed of 3/8" aluminum that allows 270° of adjustment and is attached to a slip fit yoke for easy installation. The slip fit yoke is built to customer`s specs, enabling operators to mount this explosion proof LED light to their specific pole size. For example, selecting a 2" OD mount means that the yoke mount will fit onto pipes or bull horns with a 2" OD. Suggested Applications: Hazardous locations, explosive work sites, confined spaces, chemical processing, food manufacturing and more.
