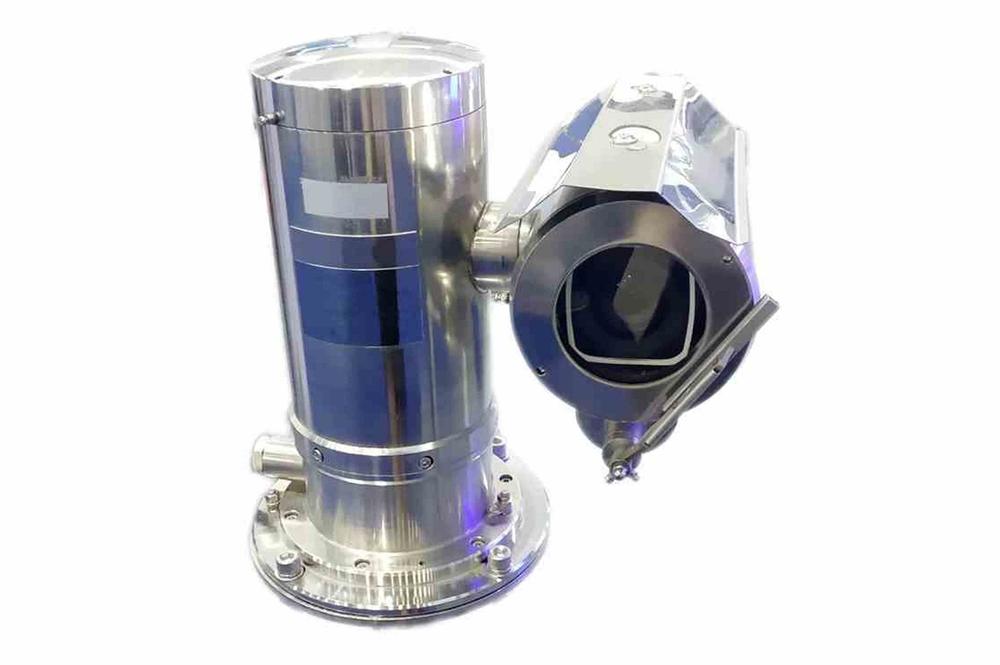

Explosion Proof Network Security Camera - 316L Stainless Steel - IP68 - ATEX Rated

LARSON ELECTRONICSSKU: PL3-ATEX-EXPCMR-SS-POE-PTZ-OZ
filler

Price:
Sale price$46,474.00

Description

Specifications / Additional Information
ATEX-EXPCMR-SS-POE-PTZ-OZ Explosion Proof Remote Observation Camera Quick Summary
Unit Type: Explosion Proof Network Camera IP68 Waterproof
Dimensions: 15.5" x 11" x 14.4" T6 Temp Rating
Camera Weight: 48.5 lbs Exd â…¡C T6 GB/DIP A20 TA
Input Voltage: 85V AC - 265V AC/24V AC/DC (Stepped Down to 12V) Lens Wiper
Power: 50W
Image Sensor:  1/3" Interline-transfer CCD
Communication Rate: 2,400 - 19,200 bps
Effective Pixels: PAL 976*582, NTSC 976*494
Resolution: 700TVL (Color), 720TVL (B&W)
Focal Length: 4-92mm, 23X/or 36X Optical
Zoom: 16x
Rotation: 360° (Horizontal), -90° to +90° (Vertical)
Horizontal Speed: 0.1-45°/s
Preset Patrol: 64/128/255/300
Humidity: 95%
Ambient Temperature Range: -25°C - 60°C
Housing Materials: 316L Stainless Steel (Electro-polished)
Lens Material: Tempered Glass w/ Nanometer Paint Film
Mounting: Ceiling/Wall w/ Pan/Tilt Brackets
Wiring Hub: (1) Cable Gland
' Product Overview '
The ATEX-EXPCMR-SS-POE-PTZ-OZ Explosion Proof Network Camera from Larson Electronics is designed for security and remote observation in both indoor and outdoor hazardous environments. This ATEX-rated monitoring device provides high resolution images and 16x digital zoom. Constructed of 316L stainless steel with a tempered glass lens, the unit supports 360-degree horizontal pan rotation with a vertical tilt range of +90° to -90°. Camera Features: The ATEX-EXPCMR-SS-POE-PTZ-OZ security camera provides operators in hazardous and ATEX-rated areas with crisp high resolution images. This unit offers up to PAL 976 x 582, NTSC 976 x 494 effective pixels when in use. The explosion proof camera offers full, 360 degrees of horizontal rotation and -90 degrees to 90 degrees of vertical rotation. Capable of up to 16x digital zoom, the unit is equipped with a 1/3" interline-transfer CCD sensor, as well as auto white balance and auto ICR. The ATEX-EXPCMR-SS-POE-PTZ-OZ security camera is built to perform under harsh and rugged conditions. The IP68 rated waterproof unit resists the corrosive effects of weather, dust, dirt, and humidity. Featuring an electro-polished 316L stainless steel housing and a tempered glass lens, the camera is capable of operating in hazardous locations with temperatures ranging between -25°C and 60°C . A lens wiper removes the build up of moisture and dust during operation. Wiring: This unit is designed to operate on 24V AC/DC or 85V AC to 265V AC, stepped down to 12V. One cable gland opening is available for completing electrical and wiring connections. Mounting: The explosion proof monitoring device offers versatile mounting options, depending on the needs of the facility. Operators may mount this ATEX-rated unit on walls or ceilings using provided pan/tilt mounting brackets. Applications: Vessel, tank and reactor monitoring, remote observation of external facilities, offshore and land based rigs, indoor and outdoor security, commercial buildings, service garages, oil refineries and other applicable hazardous locations.
