Explosion Proof Camera - 2MP - Analog Security Camera - 316L Stainless Steel - IP68 - ATEX Rated
Explosion Proof Camera - 2MP - Analog Security Camera - 316L Stainless Steel - IP68 - ATEX Rated
| ATEX-EXPCMR-SS-PTZ-OZ Explosion Proof Remote Observation Camera | Quick Summary |
| Unit Type: Analog Explosion Proof Camera | IP68 Waterproof |
| Dimensions: 15.5" x 11" x 14.4" | T6 Temp Rating |
| Camera Weight: 48.5 lbs | Ex II 2 G |
| Input Voltage: 85V AC - 265V AC/24V AC (Stepped Down to 12V) | Ex db op is IIC T6 Gb |
| Amps: 2,000 mA | Ex db IIC T6 Gb |
| Image Sensor: CCD/HD-CMOS | Ex II 2 D |
| Communication Protocol: TCP/IP, Network Transmit | Ex tb op is IIIC T80°C Db |
| Communication Rate: 2,400 - 19,200 bps | Lens Wiper |
| Resolution: 2.0 MP/1.3 MP/ 560 TVL |  |
| Lens: f/1.4 (Focal Length, 3.3 ~ 119 mm Optical) | |
| Zoom: 30x | |
| Rotation: 360° (Horizontal), -90° to +90° (Vertical) | |
| Rotation Speed: 10° per Second | |
| Preset Patrol: 256/128 Points | |
| Video Output: AV/H.264/SDI/H.264 | |
| Humidity: = 95% | |
| Ambient Temperature Range: -25°C - 65°C | |
| Housing Materials: 316L Stainless Steel (Electro-polished) | Toll Free: 1-800-369-6671 |
| Lens Material: Tempered Glass w/ Nanometer Paint Film | Intl: 1-214-616-6180 |
| Mounting: Ceiling/Wall w/ Pan/Tilt Brackets | Fax: 1-903-498-3364 |
| Wiring Hub: (1) Cable Gland |

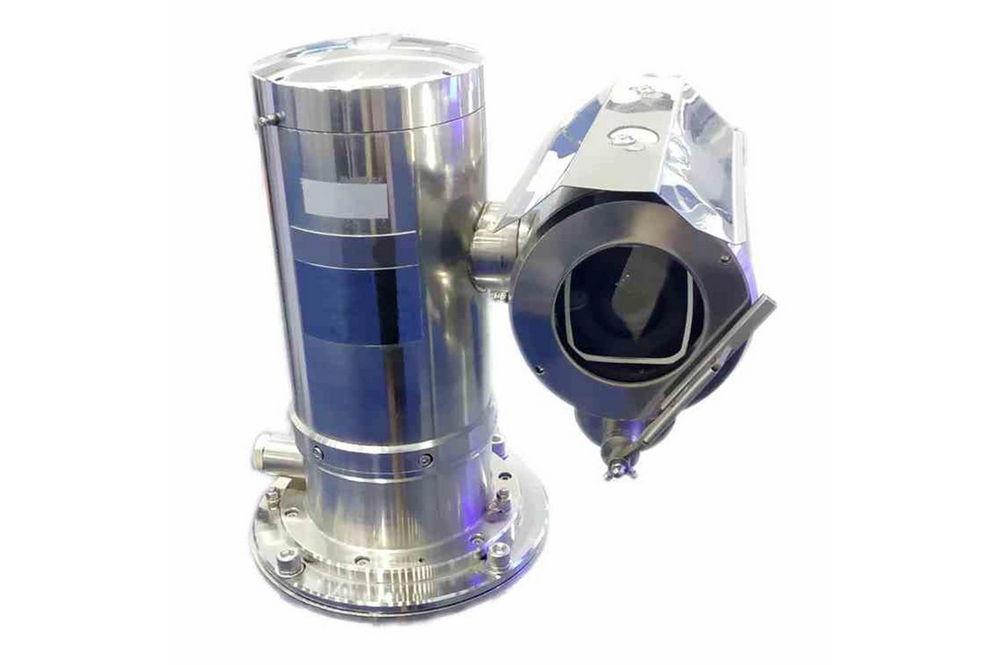

| The ATEX-EXPCMR-SS-PTZ-OZ Explosion Proof Camera from Larson Electronics is designed for security and remote observation in both indoor and outdoor hazardous environments. This ATEX-rated monitoring device provides up to 2MP resolution images and 30x zoom. Constructed of 316L stainless steel with a tempered glass lens, the unit supports 360-degree horizontal pan rotation with a vertical tilt range of +90° to -90°. Camera Features: The ATEX-EXPCMR-SS-PTZ-OZ security camera provides operators in hazardous and ATEX-rated areas with crisp high resolution images. This unit offers up to 2MP resolution when in use. With a rotational speed of 10 degrees per second, the explosion proof camera offers full, 360 degrees horizontal rotation and -90 degrees to 90 degrees vertical rotation. Capable of up to 30x zoom, the unit is equipped with a CCD/HD-CMOS sensor, as well as TCP-IP communication, at a rate of 2,400 to 19,200 bps. The ATEX-EXPCMR-SS-PTZ-OZ security camera is built to perform under harsh and rugged conditions. The IP68 rated waterproof unit resists the corrosive effects of weather, dust, dirt, and humidity. Featuring an electro-polished 316L stainless steel housing and a tempered glass lens, the camera is capable of operating in hazardous locations with temperatures ranging between -25°C and 60°C . A lens wiper removes the build up of moisture and dust during operation. Wiring: This unit is designed to operate on 24V AC or 85V AC to 265V AC, stepped down to 12V. One cable gland opening is available for completing electrical and wiring connections. Mounting: The explosion proof monitoring device offers versatile mounting options, depending on the needs of the facility. Operators may mount this ATEX-rated unit on walls or ceilings using provided pan/tilt mounting brackets. Applications: Vessel, tank and reactor monitoring, remote observation of external facilities, offshore and land based rigs, indoor and outdoor security, commercial buildings, service garages, oil refineries and other applicable hazardous locations. |
