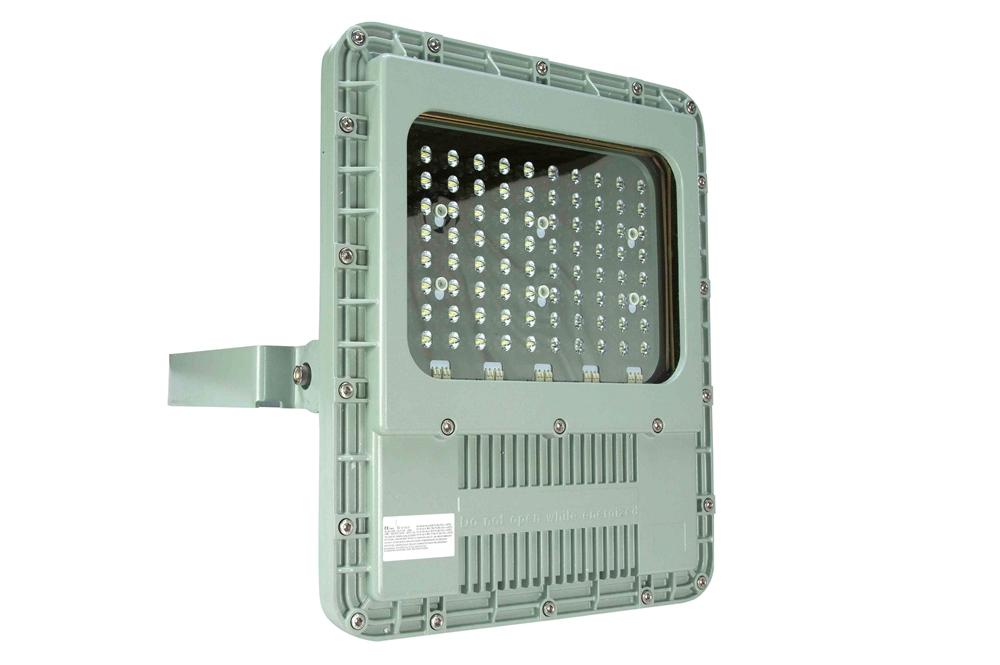

200W Explosion Proof LED Fixture - 380-415V AC - ATEX/IECEx Rated, Z1/Z2, Z21/Z22 - IP66 - Pole Mount

LARSON ELECTRONICSSKU: PL3-ATEX-HAL-PT-200W-LED-R1-380V
filler

Price:
Sale price$4,593.99

Description

Specifications / Additional Information
ATEX-HAL-PT-200W-LED-R1-380V Flameproof Outdoor LED Light Ratings/Approvals
Listing: NRTL Listed for International, European Union ATEX/IECEx Rated
Lamp Technology: LED Certified for Zone 1/Zone 2
Dimensions: 24.8" x 18.1" x 5.31" (630mm x 460mm x 135mm) Certified for Zone 21/Zone 22
Weight: 48.5 lbs (22 kg) Ex db eb op is …¡ B T* Gb
Voltage: 380-415V AC, 1-phase Ex tb op is …¢C T*„ƒ Db
Frequency: 50/60Hz Ex …¡ 2GD Ex db eb op is …¡ B T* Gb
Total Watts: 200W Ex …¡ 2GD Ex tb op is …¢C T*„ƒ Db
Total Lumens: 17,259 lms CE Certified
Luminous Efficacy: - IP66
Expected Lamp Life: 50,000+ Hours Adjustable Swiveling Pole Top Mount
Color Temperature: 5700K Multiple Slip Fit Yoke Diameters Available
Color Rendering Index: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: 60°
Lighting Configuration: Wide Beam Pattern
Power Efficiency: -
Power Factor: >0.95
Amperage: 0.52A @ 380V, 0.48A @ 415V
Ambient Operating Temp Range: -20°C to +40°C/+55°C
Operating Temp Rating: T4/T5
Housing Material: Die Cast Aluminum Alloy
Housing Finish: Epoxy Resin Powder
Lens Material: Borosilicate Glass
Gasket Material: -
Mounting: Slip Fit Yoke Mount w/ Adjustable Bracket
Mount OD: 2", 2-1/4", 2-1/2", 2-3/4", 3", 4"
Terminals: L1, N - 0.03"-0.09" (1mm-2.5mm) + (2) PE - 0.09"- 0.23" (2.5mm-6mm)
Cable Entry: (1) 1" (M25) w/ Stopping Plug- Molded Plastic
' Product Overview '
The Larson Electronics ATEX-HAL-PT-200W-LED-R1-380V Explosion Proof LED Fixture is designed for outdoor illumination in ATEX/IECEx rated flammable environments. This 200-watt flameproof fixture is compatible with single-phase 380-415V AC, 50/60 Hz and emits a wide-beam configuration. Constructed of die-cast aluminum alloy with a borosilicate glass lens, the IP66-rated unit can be mounted on top of poles for elevated illumination. The ATEX-HAL-PT-200W-LED-R1-380V is a powerful lighting solution for combustible facilities, industrial sites and outdoor locations. This 200-watt unit operates on single-phase 380-415V AC, 50/60 Hz. Equipped with a slim design, the flameproof fixture offers a 60° wide-beam configuration which is ideal for casting light over large spaces. The outdoor LED light provides 17,259 lumens of output with a color temperature rating of 5700K. This explosion proof fixture is constructed of die-cast aluminum alloy, with an epoxy resin powder finish for corrosion resistance, and stainless steel hardware. The lens consists of borosilicate glass and is equipped with stainless steel fasteners. This IP66-rated unit comes with an approximate lifespan of 50,000+ hours and is suitable for ATEX/IECEx rated Zone 1/Zone 2 and Zone 21/Zone 22 flammable environments. Equipped with a T4/T5 temperature rating, the outdoor fixture can be used in locations with ambient temperatures ranging between -20°C to +40°C/+55°C. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Wiring: The ATEX-HAL-PT-200W-LED-R1-380V features L1, N and two PE terminals for completing electrical connections. Rubber-coated or armored cables are fed through one 1" (M25) hub. This unit comes with one molded plastic stopping plug. Mounting: This explosion proof light features an adjustable swivel bracket constructed of 3/8" aluminum that allows over 270° of adjustment and is attached to a slip fit yoke for easy installation. The slip fit yoke is built to customer's specs, enabling operators to mount this explosion proof LED light to their specific pole size. For example, selecting a 2" OD mount means that the yoke mount will fit onto pipes or bull horns with a 2" OD. Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, gas processing plants, chemical manufacturing, waste water treatment plants, gas processing plants, offshore applications and more.
