400W Explosion Proof HPS Fixture - 220V, 50Hz - ATEX/IECEx Rated, Z1/Z2 - IP66 - Outdoor

LARSON ELECTRONICSSKU: PL3-ATEX-HAL-TRN-400W-HPS-R1-220V
filler

Price:
Sale price$3,474.00
 More payment options

Description

Specifications / Additional Information
ATEX-HAL-TRN-400W-HPS-R1-220V HPS Outdoor Light Ratings/Approvals
Listing: International, European Union ATEX/IECEx Rated
Lamp Technology: HPS Zone 1/Zone 2
Dimensions: 26.7" x 18.1" x 7.79" (680mm x 460mm x 198mm) Zone 21/Zone 22
Weight: 49.6 lbs (22.5 kg) Ex de IIB T3 Gb
Voltage: 220V AC Ex t IIIC T3 Db
Frequency: 50 Hz Ex II 2 GD Ex de II B T3 Gb
Total Watts: 400W IP66
Total Lumens: - Lamp Not Included
Luminous Efficacy: - Bulb NOT Included
Lamp Life: 25,000+ Hours
Color Temperature: -
Color Rendering Index: -
Lamp Type: NA
Lamp Base: E40
Replacement Lamp: -
Beam Angle: -
Lighting Configuration: Flood Pattern
Power Efficiency: -
Power Factor: -
Ballast Type: -
Ballast Position: -
Amperage: 1.81A @ 220V
Ambient Operating Temp Range: -20°C to +40°C/+55°C
Operating Temp Rating: T3
Housing Material: Die Cast Aluminum Alloy
Housing Finish: Epoxy Resin Powder
Lens Material: Borosilicate Glass, Aluminum Reflector
Gasket Material: -
Mounting: Adjustable U-bracket Mount w/ (3) Mounting Holes
Terminals: L1, N - 0.07"-0.09" (2mm-2.5mm) + (2) PE - 0.39" (10mm)
Cable Entry: (1) 1" (M25) w/ Stopping Plug- Molded Plastic
' Product Overview '

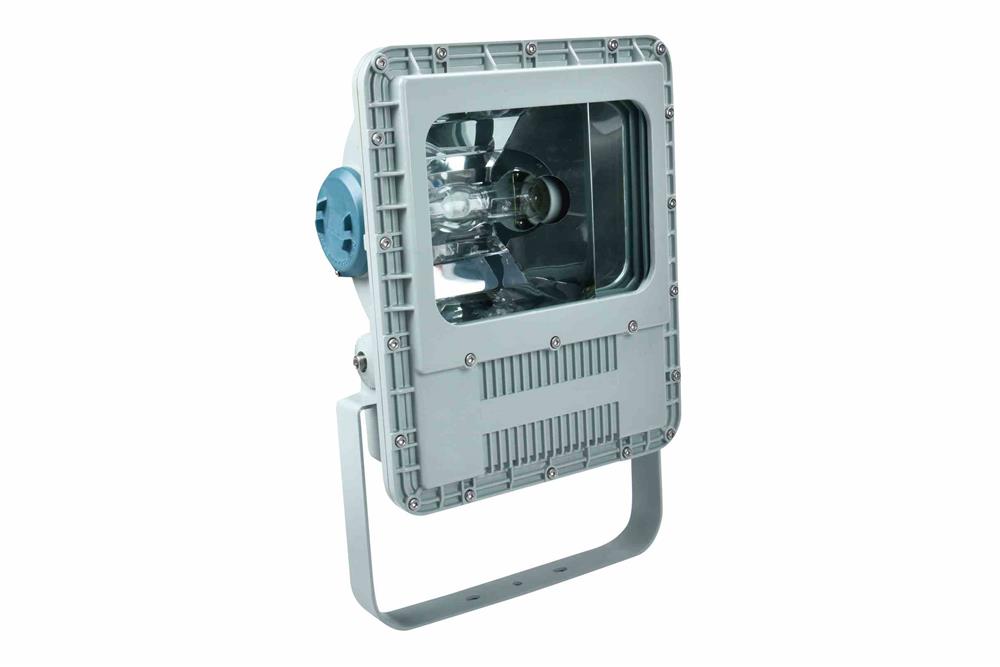

The Larson Electronics ATEX-HAL-TRN-400W-HPS-R1-220V Explosion Proof HPS Fixture is designed for outdoor illumination in ATEX/IECEx rated flammable environments. This 400-watt fixture is compatible with 220V AC, 50 Hz (lamp not included). Constructed of die-cast aluminum alloy with a borosilicate glass lens, the IP66-rated unit features an adjustable U-bracket mount for versatile installation on flat surfaces, walls or poles. The ATEX-HAL-TRN-400W-HPS-R1-220V is a powerful lighting solution for combustible facilities, industrial sites and outdoor locations. This 400-watt unit operates on 220V AC, 50 Hz @ 1.81A. Equipped with an E40 lamp base, the fixture offers a flood beam configuration (lamp not included). This explosion proof fixture is constructed of die-cast aluminum alloy, with an epoxy resin powder finish for corrosion resistance, and stainless steel hardware. The lens consists of borosilicate glass and is equipped with an aluminum reflector. This IP66-rated unit comes with an approximate lifespan of 25,000+ hours and is suitable for ATEX/IECEx rated Zone 1/Zone 2 and Zone 21/Zone 22 flammable environments. Equipped with a T3 temperature rating, the outdoor fixture can be used in locations with ambient temperatures ranging between -20°C to +40°C/+55°C. Wiring: The ATEX-HAL-TRN-400W-HPS-R1-220V features L1, N and two PE terminals for completing electrical connections. Rubber-coated or armored cables are fed through one 1" (M25) hub. This unit comes with one molded plastic stopping plug. Mounting: This explosion proof light contains an adjustable U-bracket mount for mounting on flat surfaces, walls or poles. During installation, operators may secure the unit on the desired surface via three openings on the mounting bracket. After securing the fixture on the surface, simply tilt the light head up or down for accurate beam placement over the target area. Please Note: This fixture does not include bulb. Please see related items for replacement lamp. Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, gas processing plants, chemical manufacturing, waste water treatment plants, gas processing plants, offshore applications and more.
