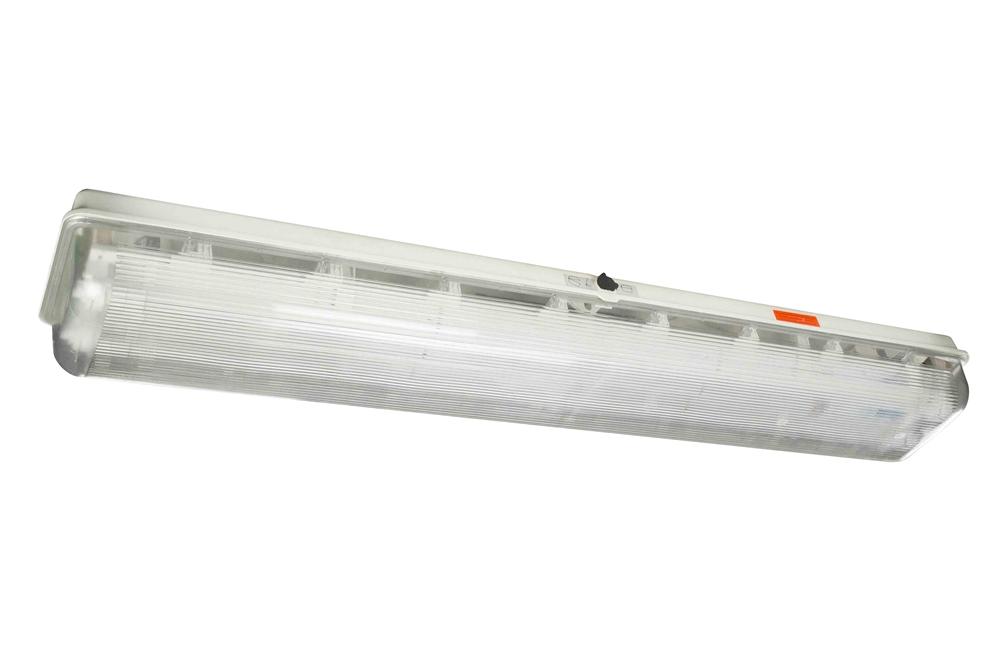

108W Explosion Proof Fluorescent Fixture - (2) 4' 54W Lamps - 220/240V AC - T5HO - ATEX/IECEx

LARSON ELECTRONICSSKU: PL3-ATEX-HALP-48-2L-T8-2X54W
filler

Price:
Sale price$1,451.99

Description

Specifications / Additional Information
ATEX-HALP-48-2L-T8-2X54W Hazardous Location Lamp Ratings/Approvals
Listing: European Union, International IECEx PTB 13.0003
Lamp Technology: Fluorescent Ex d e IIC T4 Gb or Ex db eb IIC T4
Lamp Qty: (2) Ex tb IIIC T80°C Db or Ex tb IIIC T80°C
Dimensions: 62.4" x 7.2" x 4.9" PTB 13 ATEX 2004
Weight: - Ex II 2 G Ex d e IIC T4 Gb or Ex db eb IIC T4
Voltage: 220-240V AC 50/60 Hz E II 2 D Ex tb IIIC T80°C Db or Ex tb IIIC T80°C
DC Voltage: 198-264V DC (Switching On), 176-264V DC (Operation) Central Locking
Total Watts: 108W IP66
Single-lamp Watts: 54W
Total Lumens: 20,000 lms
Single-lamp Lumens: 10,000 lms
Luminous Efficiency: -
Lamp Life Expectancy: 24,000 Hours
Color Temperature: 5000K, 4100K or 3000K
Color Rendering Index: -
Lamp Type: T5HO
Lamp Base: -
Replacement Lamp: -
Beam Angle: -
Lighting Configuration: Flood
Power Efficiency: -
Power Factor: -
Ambient Operating Temp Range:-30°C to +50°C
Operating Temp Range: T4 Rated Special Orders/Requirements
Housing Material: Polyester and Glass Fiber Housing
Gasket Material: Silicone Toll Free: 1-800-369-6671
Lens Material: Polycarbonate Intl: 1-214-616-6180
Mounting: Ceiling or Wall
Wiring Hub: (2) M25 Hubs on Side
' Product Overview '
The ATEX-HALP-48-2L-T8-2X54W Explosion Proof Fluorescent Fixture from Larson Electronics is ATEX/IECEx approved for Zones 1 and 2 and 21 and 22. This 108-watt unit is equipped with two, 4-foot T5HO lamps that operate on 220-240V AC. The IP66-rated fixture is made out of non-sparking materials that are highly resistant to rough impacts (IK10). This fluorescent lamp can be mounted on ceilings or walls using a pair of stainless steel mounting brackets. The ATEX-HALP-48-2L-T8-2X54W is designed for use in hazardous locations and flammable buildings that require ATEX/IECEx rated fixtures. Consisting of two, 4-foot fluorescent lamps, the cold start unit is compatible with 220-240V AC, while consuming 108 watts (54 watts per lamp) during operation. Each T5HO lamp produces 10,000 lumens of output (total 20,000 lumens). A flood beam configuration ensures full coverage of the location when the light is in use. The lamp carries a T4 temperature rating. A NC switch provides all-pole disconnection when the unit is opened. Color temperature options include the following: 5000K, 4100K or 3000K. This ATEX-rated fluorescent fixture is constructed of non-sparking materials for protection in flammable work sites. The housing on the unit is made out of glass fiber-reinforced polyester resin with polycarbonate lens and silicon foam gaskets. The IP66 unit offers exceptional resistance to hard impacts (IK10), with a threshold of 20 joules. Operators can lock the lamp using a small socket key (M8/wrench size 13). Mounting: The ATEX-HALP-48-2L-T8-2X54W is compatible with wall or ceiling mount installations. Each fixture is equipped with two M25 hubs on either side of the lamp for completing electrical connections. When a stainless steel mounting bracket is attached to the luminary for mounting, it can be swiveled in increments of 15 degrees for accurate targeting. Suggested Applications: Petrochemical facilities, lubrication pits, oil drilling rigs, crew quarters, solvent/cleaning areas, water treatment areas, processing plants, marine loading docks, shipyards, ports and more.
