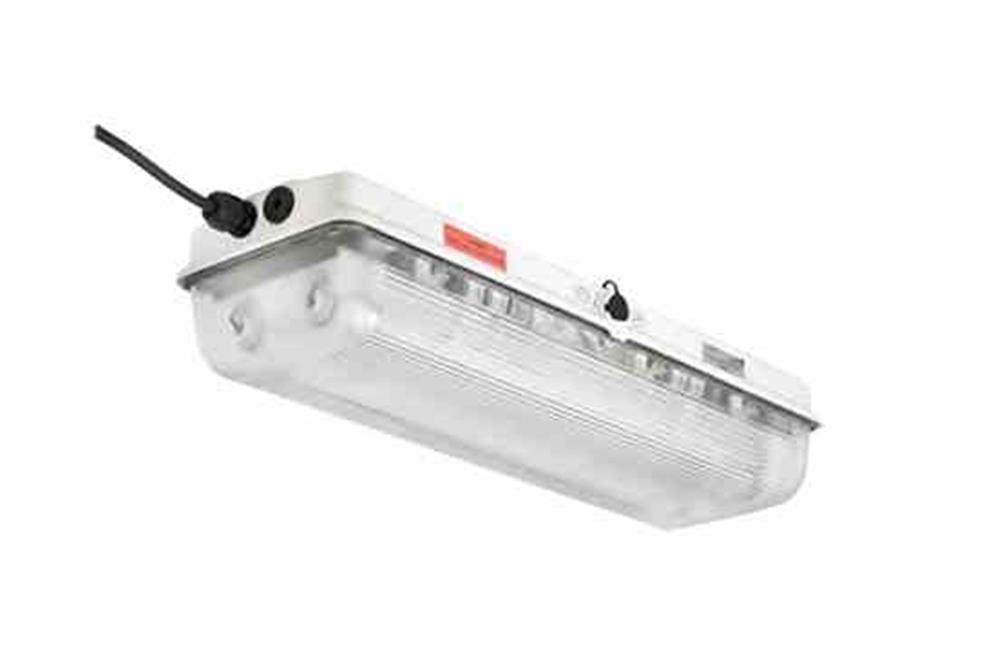

28W Flameproof Fluorescent Emergency Linear Fixture - 220V, 50Hz - (2) 2' T5 Lamps - ATEX/IECEx

28W Flameproof Fluorescent Emergency Linear Fixture - 220V, 50Hz - (2) 2' T5 Lamps - ATEX/IECEx

Regular price $2,130.00 CAD
Regular price Sale price $2,130.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
ATEX-HALP-EMG-24-2L-T5-2X14W-R1-220V Flameproof Emergency Fluorescent Light Ratings/Approvals
Listing: International, European Union ATEX/IECEx Rated
Lamp Technology: Fluorescent Zone 1/Zone 2
Dimensions: 28.5" x 8.7" x 5.7" (725mm x 222mm x 145mm) Zone 21/Zone 22
Lamp Quantity: 2 Ex deqmb IIC T4 Gb
Weight: 14.99 lbs (6.8 kgs) Ex II 2GD
Voltage: 220V AC IP66
Frequency: 50 Hz Emergency Backup Mode
Total Watts: 28W (2 x 14W)
Total Lumens: 2,700 lms (2 x 1,350 lms)
Luminous Efficacy: -
Lamp Life: 20,000+ Hours
Color Temperature: 5000K, 4100K or 2700K
Color Rendering Index: 75
Lamp Type: T5
Lamp Base: 2-pin G5
Replacement Lamp: -
Beam Angle: -
Lighting Configuration: Flood Pattern
Power Efficiency: -
Power Factor: >0.98
Ballast Type: Electronic
Ballast Position: Internal
Inverter Type (Emergency Mode): Electronic
Emergency Runtime: 90 Minutes
Emergency Start Time: 0.1 Second
Emergency Lumens: 1,350 lms (1 Lamp)
Battery Recharge Time: 24 Hrs
Emergency Status Display: (3) LEDs (Red, Yellow, Green)
Amperage: 0.16A @ 220V
Ambient Operating Temp Range: -25°C to +40°C
Operating Temp Rating: T4
Housing Material: Glass Fiber Reinforced Polyester
Housing Finish: -
Lens Material: Polycarbonate
Gasket Material: Foam
Mount: -
Terminals: L1, L2, L, N + (2) PE - 0.39" (10mm)
Hub Quantity: 1 Intl: 1-214-616-6180
Hub Size/Location: (1) 1.5" (M25) @ Side
Stopping Plugs: (2) 1.5" (M25) Molded Plastic/Polyamide
' Product Overview '
The Larson Electronics ATEX-HALP-EMG-24-2L-T5-2X14W-R1-220V Flameproof Emergency Fluorescent Linear Fixture is designed for outdoor illumination in ATEX/IECEx rated flammable environments. Equipped with two, 2-foot T5 fluorescent lamps, this emergency 28-watt fixture is compatible with 220V AC, 50 Hz. The IP66-rated unit is constructed of glass fiber reinforced polyester with a polycarbonate lens and features an internal electronic ballast/inverter with an interlocking system for protection. The ATEX-HALP-EMG-24-2L-T5-2X14W-R1-220V is a powerful lighting solution for combustible facilities, industrial sites and outdoor locations. This 28-watt unit operates on 220V AC, 50 Hz and contains two, 2-foot T5 fluorescent lamps (2-pin G5 base). During use, the emergency fixture offers 2,700 lumens of output in a flood beam configuration, with an exceptional CRI rating of 75. Color temperature options include: 5000K, 4100K or 2700K. An electronic, internal ballast ensures reliable lighting performance and features two interlock switches that disconnects all poles to the ballast and inverter, as well as turns the power off when the diffuser is opened. This full-plastic explosion proof fixture is constructed of glass fiber reinforced polyester. The lens consists of UV-resistant polycarbonate and is equipped with a foam gasket. This IP66-rated unit comes with an approximate lifespan of 20,000+ hours and is suitable for ATEX/IECEx rated Zone 1/Zone 2 and Zone 21/Zone 22 flammable environments. Equipped with a T4 temperature rating, the outdoor fixture can be used in locations with ambient temperatures ranging between -25°C to +40°C. Battery-powered Emergency Backup: The flameproof light contains a battery backup unit that adds emergency light functionality to the fixture. With an electronic inverter, this fixture will continue to operate one fluorescent lamp for 90 minutes at 1,350 lumens after the main electrical power to the light is severed. Once standard electrical power is restored, the emergency battery pack will be recharged, which takes approximately 24 hours from a drained state. The fixture contains three LED status lights for real-time monitoring in emergency mode: red, yellow and green. Wiring: The ATEX-HALP-EMG-24-2L-T5-2X14W-R1-220V features L1, L2, L, N and two PE terminals for completing electrical connections. Cables are fed through one, 1.5" (M25) hub, located at the side of the fixture. This unit comes with two, 1.5" (M25) molded plastic/polyamide stopping plugs. A central locking system protects the internal components of the unit, which must be unlocked during installation or relamping. Mounting Compatibility: This emergency explosion proof light is compatible with the following mounting configurations (not included): ceiling, pendant, chain hanging, angle bracket, pole clamp oil derrick and pole top. We offer these mounting accessories at an additional cost. Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, gas processing plants, chemical manufacturing, waste water treatment plants, offshore applications and more.
