Hazardous Location Analog Phone - IECEx Rated - Slave Station, LCD Display - Wall Mount - IP66

LARSON ELECTRONICSSKU: PL3-ATEX-HLPH-ALG-SS-SFC-R1
filler

Price:
Sale price$4,926.00

Description

Specifications / Additional Information
ATEX-HLPH-ALG-SS-SFC-R1 Hazardous Location Phone Ratings/Approvals
Unit Type: IECEx Rated Analog Phone (Slave Station) Certified for International Use
Dimensions: 8.93" x 11.5" x 5.3" (227mm x 293mm x 135mm) IECEx Rated
Weight: 12.7 lbs (5.7 kgs) Ex e ib mb IIC T6 Gb Ex tb IIIC T80C Db
Power: Telephone Line (No External Power/Battery Required) IK09 Impact Protection
Keypad: 5 Keys - Volume, Arrow/Menu Selection Vandal Resistant
LCD Display: 2-line Alphanumerical Display Magnetic Reed Hook-switch
Backlight/Handset/Hands-free/Ringer Settings: 4 Levels High Temperature Approval
Handset: Dynamic Receiver w/ Inductive Coupling (Hearing Aids), Microphone w/ Noise Canceling IP66
Loudspeaker Output: 70 dB @ 3 Feet (1 Meter) Slave Station
Ringer Output: 95 dB @ 3 Feet (1 Meter)
Ringtones: 9 Selectable Ringtones
Welcome Text: Programmable
Call Time Counting: Yes
Auto Answer: Yes
Dry Contact: External Control Automation
Ambient Operating Temp Range: -25°C to +60°C
Storage Temp Range: -30°C to +70°C
Temp Rating: T6
Materials: Glass Fiber-reinforced Polyester (Housing), Stainless Steel (Keypad)
Wiring: NA
Color: Black
' Product Overview '

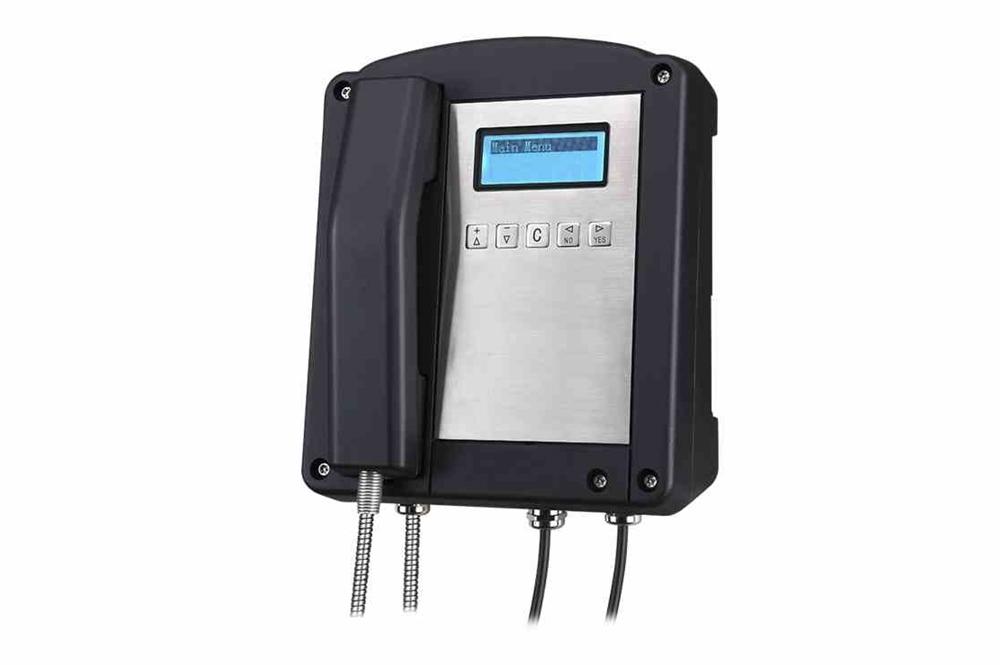

The Larson Electronics ATEX-HLPH-ALG-SS-SFC-R1 Hazardous Location Analog Phone provides seamless communication in Class I, Division 2 and IECEx rated combustible locations. This analog unit does not require external power or batteries (telephone line-powered). Equipped with a noise canceling handset, the slave station caters to incoming calls only and does not allow outgoing calls. The IP66-rated phone is constructed of glass fiber-reinforced polyester and stainless steel. The ATEX-HLPH-ALG-SS-SFC-R1 is a cutting-edge phone for hazardous locations and IECEx rated facilities. This analog device contains a 5-key pad for volume controls and menu selection. A 2-line LCD display enables operators to view and configure settings. This slave station phone (incoming calls only; no outgoing calls) features programmable welcome text, call time counting, auto answer and dry contact for external control automation. Operators can select up to 9 different ringtones. Four levels are available for backlight, handset, hands-free and ringer volume settings. The handset is a dynamic receiver with inductive coupling, which caters to hearing aids. The microphone is equipped with noise canceling features. An output of 70 dB @ 3 feet is provided when the loudspeaker is activated. Standard ringer output is 95 dB @ 3 feet. This flameproof phone is constructed of glass fiber-reinforced polyester and stainless steel. The T6-rated communication device is vandal resistant and features IK09 impact protection. Suitable for use in environments ranging between -25°C to +60°C, the IP66-rated unit can be used in Group I and Group II IECEx rated flammable sites. Power: The ATEX-HLPH-ALG-SS-SFC-R1 is powered by the telephone line. It does not require external power or batteries. Mounting: The hazardous location phone is designed for wall-mounting installations. Suggested Applications: Hazardous locations, communication, chemical processing, oil and gas, offshore, industrial sites, warehouses, manufacturing, daily operations and more.
