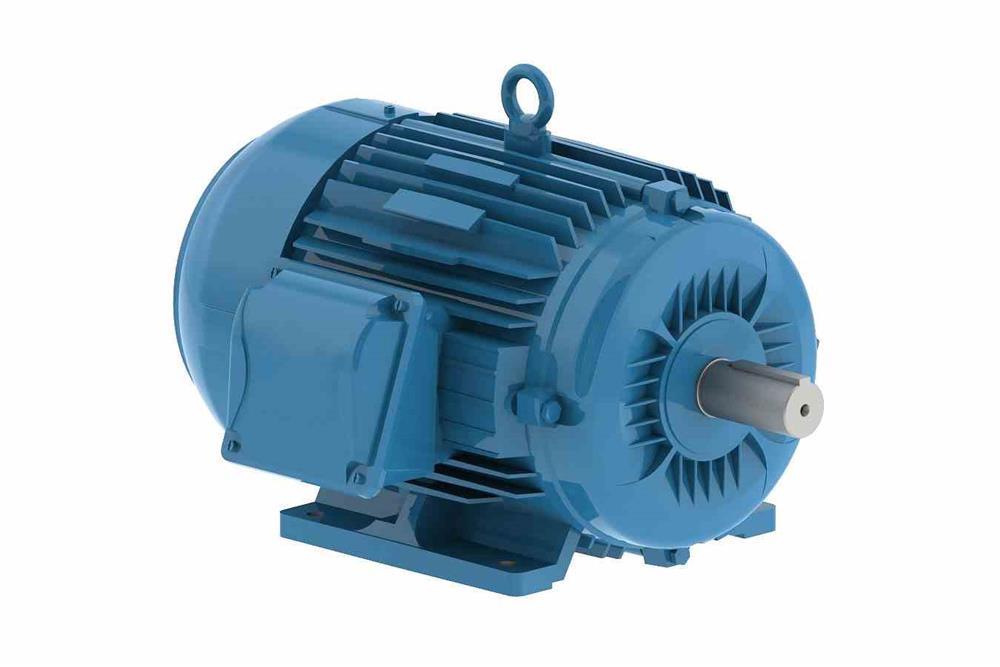

5.5 HP Flameproof Motor - ATEX/IECEx - 380V AC, 3PH 50/60 Hz - 3000 RPM - Foot Mount - 112M Frame

LARSON ELECTRONICSSKU: PL3-ATX-EXP-MTR-3P-380-5.5HP-3.0K-112M
filler

Price:
Sale price$6,172.00

Description

Specifications / Additional Information
ATX-EXP-MTR-3P-380-5.5HP-3.0K-112M Flameproof Motor Ratings
Listing: European Union, International ATEX/IEC Rated Flameproof Motor
Dimensions: 17.953" x 6.92" x 6.98" Zone 1 and 2, Groups IIA and IIB
Shipping Weight: 164 lbs Ex d - IE2
Phase: Three Phase T4 Temperature Rating
Voltage: 380V AC- 415V AC TEFC Cooling
Frequency: 50/60 Hz IP56
Poles: - Suitable for VFDs, Wye/Delta Start
Output Horsepower: 5.5 HP Gasketed Conduit Box
Kilowatt: 4 KW
Rotations per Minute: 3000 RPM
Motor Frame: 112M
Full Load Amps @ High: 7.5 FLA
FL Efficiency: 86.3%
Service Factor: 1.00
Insulation: Class F (Class H Impregnated Resin/Magnet Wire)
Design: N
Nameplate: Stainless Steel, Laser Etched w/ High Contrast Background
Ambient Temperature Rating: -
Materials: Aluminum, Conductive Plastic Fan
Mount: Foot Mount (F3 Standard)
Wiring: 24" (+2/-0) Leads, Gasketed Conduit Box
Color: Blue
' Product Overview '
The Larson Electronics ATX-EXP-MTR-3P-380-5.5HP-3.0K-112M Flameproof Motor is recommended for use in explosive work sites. The 5.5 HP unit is compatible with 380V AC-415V AC three phase, 50/60 Hz and offers 7.5 FLA @ high. This ATEX/IECex rated motor features a 112M motor frame and can be installed with industrial systems via an integrated mounting foot. The ATX-EXP-MTR-3P-380-5.5HP-3.0K-112M is a fractional flameproof motor for combustible work sites. This thermally protected unit operates with 380V AC-415V AC three phase, 50/60 Hz. The 5.5 HP motor offers 7.5 full-load amps @ high with 86.3% full-load efficiency. Capable of generating 3,600 RPM, this motor is totally enclosed and fan-cooled (TEFC). Constructed of aluminum, the unit contains a conductive plastic fan and a stainless steel nameplate (laser etched with high contrast background). The IP56-rated motor features a T4 temperature rating. Equipped with a lip seal on both endshields, this unit is protected by a 112M motor frame and features Class F insulation, with 1.00 service factor. The impregnated resin and magnet wire are Class H insulated. This Design-N model is suitable for use with VFDs and applications requiring Wye/Delta start. Wiring: The ATX-EXP-MTR-3P-380-5.5HP-3.0K-112M comes with 24" of +2/-0 leads for electrical connections and a gasketed conduit box. Mount: The ATX-EXP-MTR-3P-380-5.5HP-3.0K-112M is foot mounted (F3 standard) for supporting the motor`s weight for sturdy, secure installations. Feet components are typically fixed on the surface, which reduces unnecessary movements during operation. Applications: ATEX/IEC rated sites, VFDs, Wye/Delta start, industrial facilities, pumps, mixers, conveyors, manufacturing, food processing, chemical plants and more.
