21W High Intensity Bar Clamp Mounted LED Light - (7) 3W LEDs - 12-32V DC - 575 Foot Spot Beam
21W High Intensity Bar Clamp Mounted LED Light - (7) 3W LEDs - 12-32V DC - 575 Foot Spot Beam
| BCML-LED-21R Bar Clamp Mount LED Spotlight | Ratings/Approvals |
| LEDs: 7 Edixeon® 3 Watt LEDs | IP67 Rated Waterproof to 1 Meter |
| Dimensions: Light Head - 4.5"OD x 4.7"H x 3.25"D Total Length - 14.5" | LEDs Driven At 80% |
| Watts: 21W | -40°C to +80°C Operating Temp Range |
| Voltage: 9-32V DC | 70% Lumen Retention @ 65,000 Hours |
| Spot Beam: 575` L x 45` W | |
| Weight: 2 lbs | |
| Lighting Configuration: 10° Spot or 35° Flood | |
| Mounting: Bar Clamp | |
| Bar Size Options: 0.75", 1", 1.25", 1.5", 1.75", 2", 2.25", 2.5" or 2.75" | |
| Wiring Options: 16` Cigarette Coil, 16` Cigarette, 21` Ring Terminals, 16` Battery Clamps, 16` Flying Leads | |
| Amps: 1.6A @ 12V DC, 0.6A @ 24V DC |  |
| Lumens: 1750 |  |
| LED Light Color: 6000K | |
| LED Life Expectancy: 50,000 Hours | |
| Optics Efficiency: 90% | |
| Materials: Aluminum Housing, Polycarbonate Lens | |
| Housing Colors: Black or White | E-mail: |
| 3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, we will ship a new replacement. |
Made in the USA

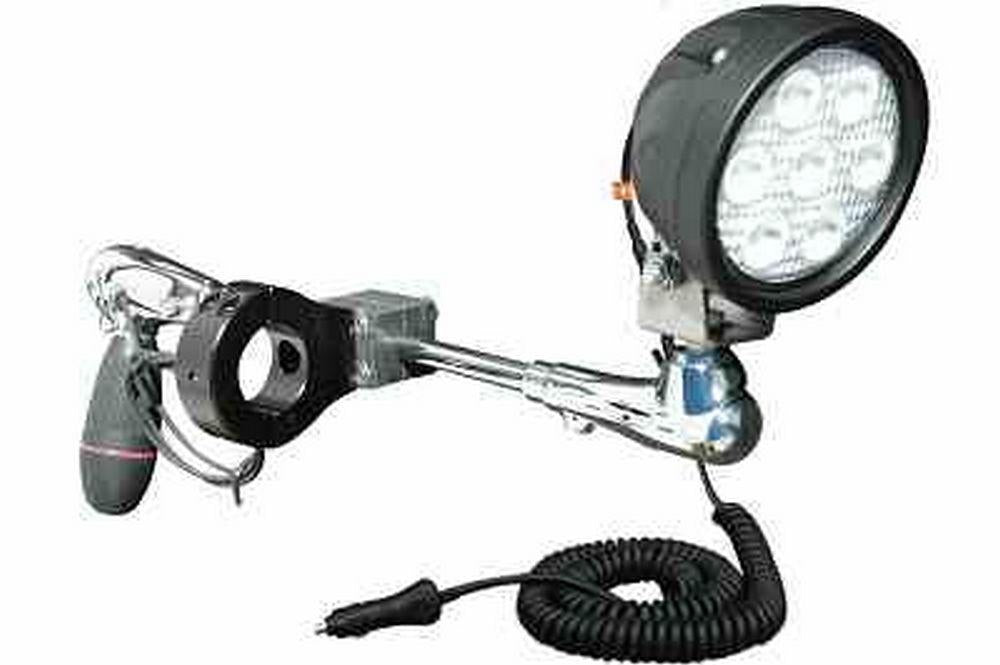

The BCML-LED-21R from Larson Electronics is a Bar Clamp Mount LED Spotlight that offers high light output in a durable, low profile housing. This light produces a very tight spot pattern, can run on any voltage from 9 to 32 volts DC and provides a rugged lighting solution ideal for use in marine environments, industrial and commercial applications, heavy equipment illumination, vehicle lighting and law enforcement.
The BCML-LED-21R LED bar clamp mount spotlight produces a 575` long by 45` wide light beam with 1750 lumens of bright light while drawing only 21 watts @1.6 amps from a 12 volt electrical system. Seven Edison Edixeon® Cree EZBright® three watt LEDs producing 180 lumens each are paired with high purity 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. Unlike other LED spots, this unit is not a wide spot. The beam on this fixture is so tight, it resembles the pattern of an HID spot (not distance-wise). This fixture is ideal for anyone who is looking for a tight spot light that offers outstanding life hours of 50,000+.
These LED bar clamp mount spotlights are IP67 rated and waterproof to one meter, sealed against intrusion by dust and dirt and ruggedly constructed to withstand demanding environments and applications. It is constructed of extruded aluminum and feature rubber isolated mounts and unbreakable polycarbonate lenses to provide durability and resistance to vibrations, impacts, waves, hard rains, sand and high winds.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED lights utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison Edixeon® LEDs. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours.
Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels. These lights can operate on current ranging from 9 to 32V DC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and stand alone applications such as those found on boats, heavy equipment and vehicles where power systems don`t always operate with 12 volts and external generators, transformers or inverters are impractical.
|
||||||||||||||||
|  | ||||||||||||||||
