21W High Intensity Bar Clamp Mounted Swivel LED Light - (7) 3W LEDs - 12-32V DC - 575' Spot Beam

21W High Intensity Bar Clamp Mounted Swivel LED Light - (7) 3W LEDs - 12-32V DC - 575' Spot Beam

$1,462.00 CAD
$1,462.00 CAD
Sale Sold out
Shipping calculated at checkout.
Specifications / Additional Information
BCML-LED-21S Bar Clamp Mount LED Swivel Spotlight Ratings/Approvals
LEDs: 7 Edixeon® 3 Watt LEDs IP67 Rated Waterproof to 1 Meter
Dimensions: Light Head - 4.5"OD x 4.7"H x 3.25"D Total Length - 14.5" LEDs Driven At 80%
Watts: 21W -40°C to +80°C Operating Temp Range
Voltage: 9-32V DC 70% Lumen Retention @ 65,000 Hours
Spot Beam: 575` L x 45` W
Weight: 2 lbs
Lighting Configuration: 10° Spot or 35° Flood
Mounting: Swivel Bar Clamp
Bar Size Options: 0.75", 1", 1.25", 1.5", 1.75", 2", 2.25", 2.5" or 2.75"
Wiring Options: 16` Cigarette Coil, 16` Cigarette, 21` Ring Terminals, 16` Battery Clamps, 16` Flying Leads
Amps: 1.6A @ 12V DC, 0.6A @ 24V DC
Lumens: 1750
LED Light Color: 6000K
LED Life Expectancy: 50,000 Hours
Optics Efficiency: 90%
Materials: Aluminum Housing, Polycarbonate Lens
Housing Colors: Black or White E-mail:
3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, we will ship a new replacement.
' Product Overview '

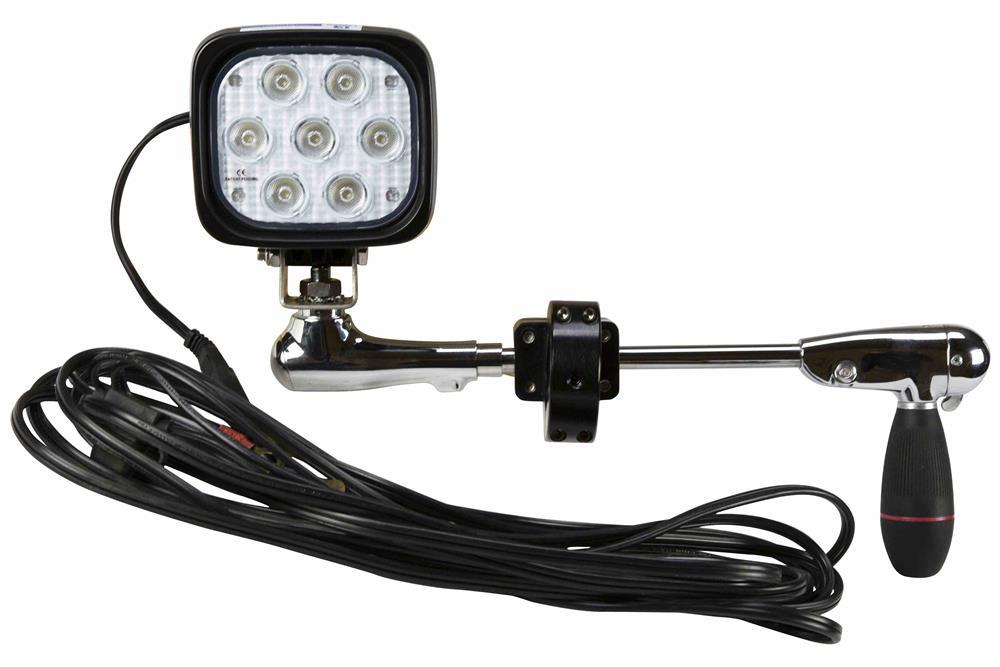

Buy American Compliant The BCML-LED-21S from Larson Electronics is a Bar Clamp Mount LED Swivel Spotlight that offers high light output in a durable, low profile housing. This light produces a very tight spot pattern, can run on any voltage from 9 to 32 volts DC and provides a rugged lighting solution ideal for use in marine environments, industrial and commercial applications, heavy equipment illumination, vehicle lighting and law enforcement. The BCML-LED-21S LED bar clamp mount spotlight from Larson Electronics produces a 575` long by 45` wide light beam with 1750 lumens of bright light while drawing only 21 watts @1.6 amps from a 12 volt electrical system. Seven Edison Edixeon® Cree EZBright® three watt LEDs producing 180 lumens each are paired with high purity 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. Unlike other LED spots, this unit is not a wide spot. The beam on this fixture is so tight, it resembles the pattern of an HID spot (not distance-wise). This fixture is ideal for anyone who is looking for a tight spot light that offers outstanding life hours of 50,000+. These LED bar clamp mount LED spotlights are IP67 rated and waterproof to one meter, sealed against intrusion by dust and dirt and ruggedly constructed to withstand demanding environments and applications. It is constructed of extruded aluminum and feature rubber isolated mounts and unbreakable polycarbonate lenses to provide durability and resistance to vibrations, impacts, waves, hard rains, sand and high winds.
Click Photo to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED lights utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison Edixeon® LEDs. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels. These lights can operate on current ranging from 9 to 32V DC without any modifications necessary as a result. This multi-voltage capability makes these units ideal for mobile and stand alone applications such as those found on boats, heavy equipment and vehicles where power systems don`t always operate with 12 volts and external generators, transformers or inverters are impractical.
35° Flood Beam 10° Spot Beam
Durability: The BCML-LED-21S offers IP67 rated construction that is designed to withstand tough environmental and operating conditions. These units can operate in temperatures ranging from -40 degrees Celsius to 85 degrees Celsius, are waterproof to one meter and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum, the hardware is stainless steel and the lenses are unbreakable polycarbonate. The Edixeon® LEDs offer inherent LED resistance to shocks and vibrations, contributing to these units 15.6Grms rating of vibration tolerance.
16ft Coil Cord w/Cigarette Plug 21ft Cord with Ring Terminals 16ft Cord w/Battery Clamps 16ft Cord with Cigarette Plug
Click Images to Enlarge
Wiring: Each light comes with a detachable 16 foot coil cord with cigarette plug. The cord is detached via a weatherproof, 2 pin Deutsch connector which easily and securely attaches and detaches the coil cord from the spotlight. Other cords, including 21 foot cords with ring terminals (C-21RT), 16 foot cord with spring battery clamps (alligator clips) (C-16BC) and a 16 foot straight cord with cigarette plug (C-16CP) are available. Mounting: The BCML-LED-21S is mounted on the end of a 10" shaft. An aluminum bar clamp is also mounted to the shaft to simplify mounting. These bar clamps are not adjustable. The top portion of the mount has a through hole that enables the operator to pass one of two 1/4 - 20 bolts through it and secure that stud with a Nylock nut. The Nylock nut and bolt are provided with the bar clamp. Small machine screws secure the bottom half of the clamp to the top portion. The installer simply affixes the light to the top portion and places the assembly on the rail or bar. The bottom portion is positioned and secured with the machine screws, cinching the clamp tightly to the bar. The BCML-LED-21S can be swiveled 360° after it has been mounted. Bar Sizes: The BCML-LED25WRE-CPR Bar Clamp LED Spotlight is available with various sized bar clamp mounts to accommodate different sized rails or bars. For example, if the rail you need to mount this spotlight on has an outside diameter of 1", you would choose the 1" size mount. The bar sizes that this mounting system can accommodate are as follows: 0.75", 1", 1.25", 1.5", 1.75", 2", 2.25", 2.5" or 2.75". Make your selection below when ordering. Operation: Operator controls rotation and elevation of spotlight outside of vehicle by twisting and turning a handle. The beam remains where the operator places it until the handle is moved.
