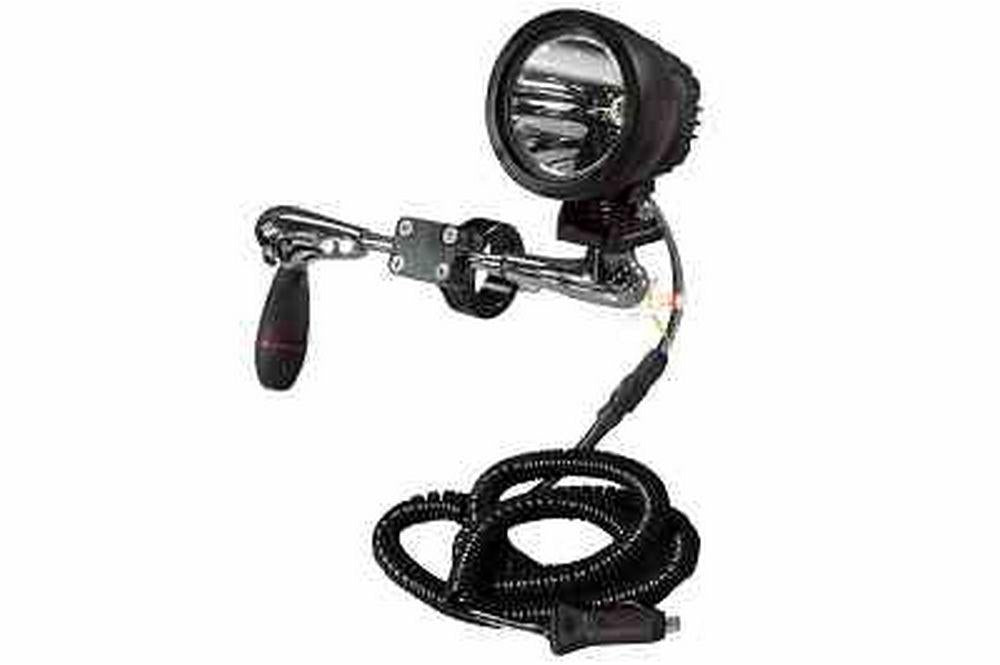

25W High Intensity Bar Clamp Mounted LED Spotlight - (1) 25W LED - 4" Shaft - 2750 Lumens

LARSON ELECTRONICSSKU: PL3-BCML-LED25WRE
filler

Price:
Sale price$2,202.00

Description

Specifications / Additional Information
BCML-LED25WRE LED Spotlight Features
Lamp Type: Cree LEDs IP68 Rated Waterproof to 3 meters
Dimensions: Light Head - 5.75" x 4.36"; 4" Shaft Length LEDs Driven At 90%
Watts: 25 -40°C to +85°C Operating Temp Range
Voltage: 12-32V DC PWM Integrated Dimming Circuitry
Lumens: 2750
Spot Beam: 1000` L
Lighting Configuration: 10° Spot or 60° Flood
Mounting: Bar Clamp
Bar Size Options: 0.75", 1", 1.25", 1.5", 1.75", 2", 2.25", 2.5" or 2.75"
Wiring Options: 16` Cigarette Coil, 16` Cigarette, 21` Ring Terminals, 16` Battery Clamps, 16` Flying Leads
Amps: 2.08 @ 12V DC - 1.04 @ 24V DC
Vibration Rating: 15.6G
LED Light Color: 6000K
LED Life Expectancy: 50,000+ hours
Optics Efficiency: 90%
Materials: Die Cast Aluminum Housing, Polycarbonate Lens
Housing Color: Black
1 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.
' Product Overview '
Buy American Compliant The BCML-LED25WRE from Larson Electronics is a Bar Clamp Mount LED Spotlight that is ideal for use in marine environments, industrial and commercial applications, heavy equipment illumination, vehicle lighting and law enforcement. This ultra compact LED light produces a 2750 lumen output with low voltage and amp draw, 50,000 hour service life and 12 to 32 volt DC compatibility providing operators with a versatile and powerful LED lighting solution. The BCML-LED25WRE LED bar clamp mount spotlight from Larson Electronics produces 2,750 lumens of bright light while drawing less than 2.25 amps from a 12 volt electrical system. A single Cree 25 watt LED producing 2750 lumen is combined with a high output reflector to produce a narrow 10 degree spread spot beam approximately 1000` long. This particular unit is ultra compact with a 4.5" OD lamp head which makes it ideal for applications where electrical power and mounting space is at a premium. These LED bar clamp mount spotlights are IP68 rated and waterproof to three meters, sealed against intrusion by dust and dirt and ruggedly constructed to withstand demanding environments and applications. The housing of this hunting spotlight is constructed of extruded aluminum and features rubber isolated mounts and unbreakable polycarbonate lenses to provide durability and resistance to vibrations, impacts, abuse, hard rains, sand and high winds. Being both waterproof and resistant to impacts, vibration and dust, this LED spotlight is well suited for ATVs, UTVs, 4-wheelers, golf carts, and any other application with a post to mount the light to. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Cree Specific: This lamp uses Cree LED units that have been chosen for their high lumen per watt ratio and extreme longevity. These Cree LEDs generate a robust 110 lumens per watt effective lumen output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than traditional light sources.
CONDITIONS
Vin min (V) = 9 toff (us) = 2.9
Vin nom (V) = 12 R1 (kohm) = 50.2
Vin max (V) = 32 L1 (uH) = 3.0
Vo min (V) = 6.5 L-Pk (A) = 2.9
Vo nom (V) = 6.8 L-rms (A) = 2.9
Vo max (V) = 7 Ipk (A) = 2.5
I-LED (A) = 2.2 R2 (ohm) = 0.10
Efficiency = .85 I-FET (A) = 2.2
fsw nom (kHz) = 150 fs min (kHz) = 77
Ts nom (us) = 6.666667 fs max (kHz) = 301
Base frequency- = 36~37Khz @ 12V
Amplitude of pulse width- = 27Ms
Outside: External dimmer- = 500Hz
Inside: Current sensing from- 77KHz at 12V to 300KHz at 50V
Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 50,000 hours. Voltage: These units are also able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. These LEDP WRE series LED lights can operate on current ranging from 12 to 32VDC without any modifications necessary as a result. This ability to sense and adjust input current also provides protection against voltage spikes and drops that can occur in vehicle electrical systems which would otherwise result in burning up or premature LED failure without it. Durability: As well as unparalleled heat control, the LED WRE series of LED lights from Larson Electronics also offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from extruded aluminum and the lenses are unbreakable polycarbonate. The Cree LEDs offer resistance to shocks and vibrations and are rated at 70% lumen maintenance after 50,0000 hours of use. Mounting: The BCML-LED25WRE is mounted on the end of a 4" shaft chrome plated. An aluminum bar clamp is mounted to the shaft to simplify mounting. These bar clamps are not adjustable. The top portion of the mount has a through hole that enables the operator to pass one of two 1/4 - 20 bolts through it and secure that stud with a Nylock nut. The Nylock nut and bolt are provided with the bar clamp. Small machine screws secure the bottom half of the clamp to the top portion. The installer simply affixes the light to the top portion and places the assembly on the rail or bar. The bottom portion is positioned and secure with the machine screws, cinching the clamp tightly to the bar. Bar Sizes: The BCML-LED25WRE Bar Clamp LED Spotlight is available with various sized bar clamp mounts to accommodate different sized rails or bars. For example, if the rail you need to mount this spotlight on has an outside diameter of 1", you would choose the 1" size mount. The bar sizes that this mounting system can accommodate are as follows: 0.75", 1", 1.25", 1.5", 1.75", 2", 2.25", 2.5" or 2.75". Make your selection below when ordering. Operation: Operator controls rotation and elevation of spotlight outside of vehicle by twisting and turning a handle. The beam remains where the operator places it until the handle is moved.
16ft Coil Cord w/Cigarette Plug 21ft Cord with Ring Terminals 16ft Cord w/Battery Clamps 16ft Cord with Cigarette Plug
Click Images to Enlarge
Wiring: Each light comes with a detachable 16 foot coil cord with cigarette plug. The cord is detached via a weatherproof, 2 pin Deutsch connector which easily and securely attaches and detaches the coil cord from the spotlight. Other cords, including 21 foot cords with ring terminals (C-21RT), 16 foot cord with spring battery clamps (alligator clips) (C-16BC) and a 16 foot straight cord with cigarette plug (C-16CP) are available. This light can be ordered in either 12 volt or 24 volt configuration, allowing it to be used with any vehicle or ATV equipped with a cigarette plug. Choose voltage below when ordering. Suggested Applications: The versatile mounting and high output adjustable light head make this spotlight ideal for hunting and offroad applications. Being both waterproof and resistant to impacts, vibration, and dusts this LED spotlight is well suited for ATVs, UTVs, 4-wheelers, golf carts, and any other application with a post to mount the light to.
