Larson Scaffold/Ladder Mount LED Blasting Light - Daul 40 Watt Adjustable Light Heads - 120-277VAC

Larson ElectronicsSKU: PL3-BL-JH-2XWP400

Sale price$4,185.99


PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1-844-787-5483 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Made in Texas

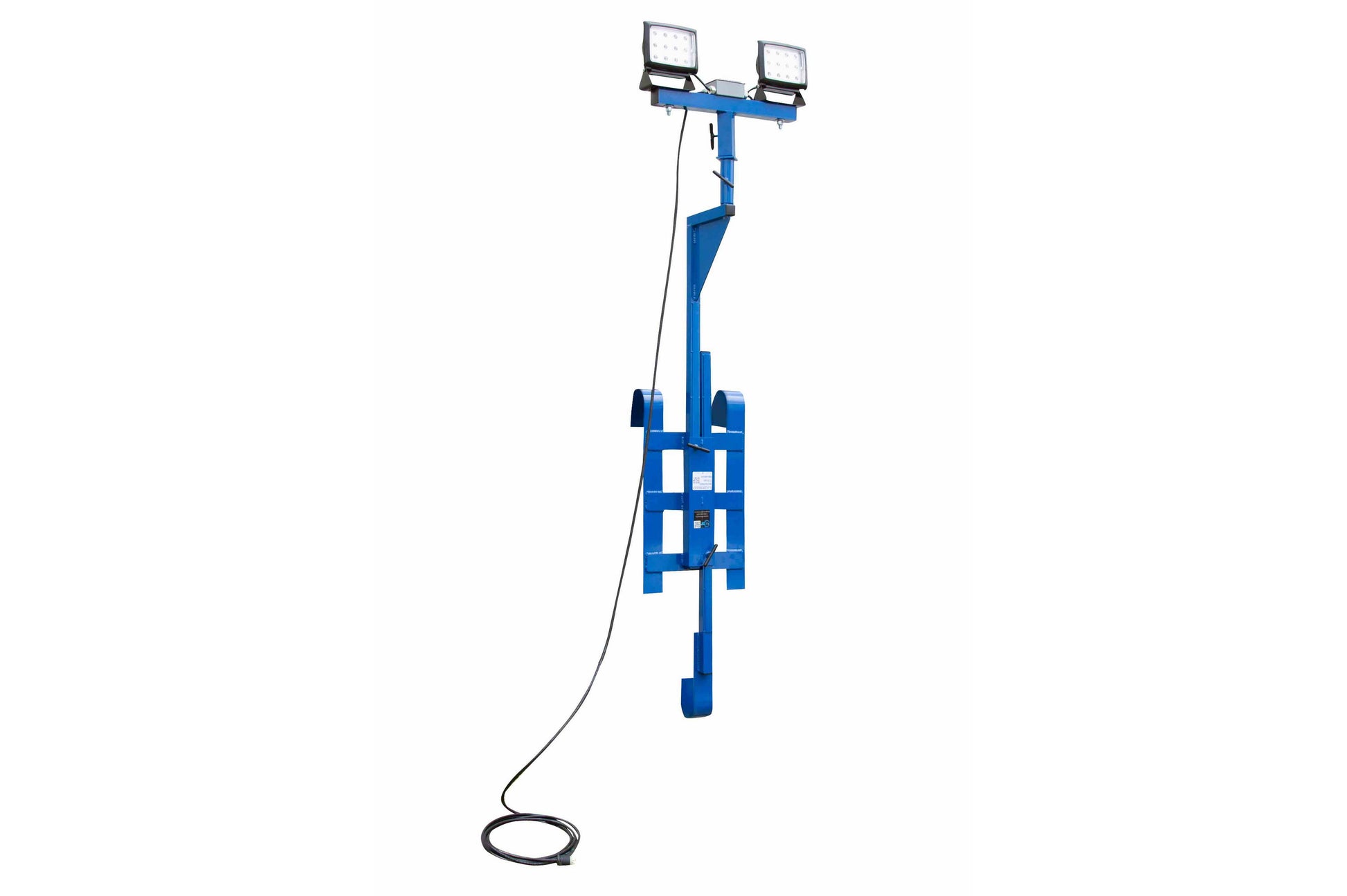

The BL-JH-2XWP400 rail mount LED blasting light from Larson Electronics produces 2,924 lumens of light capable of illuminating an area 15,000+ square feet in size. Weather proof and IP68 rated waterproof, this powerful LED fixture comes attached to an aluminum rail/ladder mount bracket that allows operators to easily mount this unit to ladders, handrails, catwalks and other similar structures.
The versatile BL-JH-2XWP400 bracket mounted dual head LED blasting light from Larson Electronics is ETL approved for wet locations and comes with an adjustable aluminum ladder/bracket mount that makes it ideal for use in industrial applications, maintenance, cleaning and servicing duties, large open space work areas, and any area where ladders, scaffolding and other railings provide opportunities for mounting. This unit produces 2,924 lumens of high intensity light and includes 25 foot cord for easy connection to standard 110-277 VAC power sources.
The aluminum rail/ladder bracket can be adjusted from 26 inches to 43 inches to allow mounting to a wide variety of railings, scaffoldings or ladders, and includes an adjustable center pole that allows operators to raise the light 3 feet above the bracket.
These scaffold mount lights come in a standard floodlight configuration to provide more light over a larger area nearer the fixture, making them ideal for use as dedicated work and area lights. These units produce 2,924 lumens, and will illuminate an area 15,000+ square feet in size. The LED heads on these units are independently adjustable, with 180
tilt and 360
° rotation, allowing optimal beam placement. Each LED light is
ruggedly constructed to withstand the most demanding work environments, conditions, and applications and ETL approved for wet locations.
The lightweight aluminum ladder bracket with adjustable J-hook bottom allows operators to securely mount the light to any rail, ladder or scaffolding. The J-bracket can adjusted 26 inches to 43 inches to allow mounting to ladders, scaffolds and similar structures of various sizes. The center mount pole is adjustable and can be elevated to three feet above the mounting bracket, helping to improve coverage and reduce glare. These units are extremely durable and resistant to damage from shocks and vibrations, and are ideal replacements for fragile and hot running 400 watt metal halide area lights as they are cooler running, use less power, and produce comparable light output.
These scaffold/ladder mounted LED work lights include 25 foot cord and straight blade plug for easy connection to standard 110-277 Volts AC power sources. Optional low voltage 12-24 Volt DC lights are available, allowing operators to power the light from batteries, heavy equipment, or vehicles when standard AC power is unavailable or inconvenient.
Suggested Applications:
With the BL-JH-2XWP400 there is no warm up period, the light can be cycled on and off without any reduction in lamp life, there is no glass or filament to shatter or break, and the solid state LED design provides 50,000 hours of operation. The BL-JH-2XWP400 is ideal for sand blasting and water blasting while mounted on catwalks, ship rails, ladders just to name a few examples.
Protective Mylar covers are available to protect the lens faceplate and catch overspray in coating applications. The adhesive backed Mylar lens covers can be peeled off and replaced easily.
Please contact us at
or 1-844-787-5483 for custom configurations with this ladder/rail mounting option.  For example, we offer 2 light configurations and solutions with one or two explosion proof Class 1, Division 1 lights.

Lamp Type: LED
Lamp Only Dimensions: W-8 1/2" D-3 1/8" H-6 3/8"
Bracket Dimensions: Adjustable from 26" to 43"
Watts: 80
Voltage: 120-277VAC or 12/24 VDC
Lighting Configuration: Flood Pattern
Mounting: Lamp Mounted to Aluminum Ladder Bracket
Weight: 45lbs Approx
LED Lamp Life: 50,000 Hours
Total Lumens: 2,924
Wiring: 25 Foot Cord, Straight Blade Plug
