Compact 7 Watt LED Fixture for Hazardous Area Location Lighting - Aluminum Housing - 12-24VDC - C1D2

LARSON ELECTRONICSSKU: PL3-CANLED-C1D2
filler

Price:
Sale price$1,063.99

Description

Specifications / Additional Information

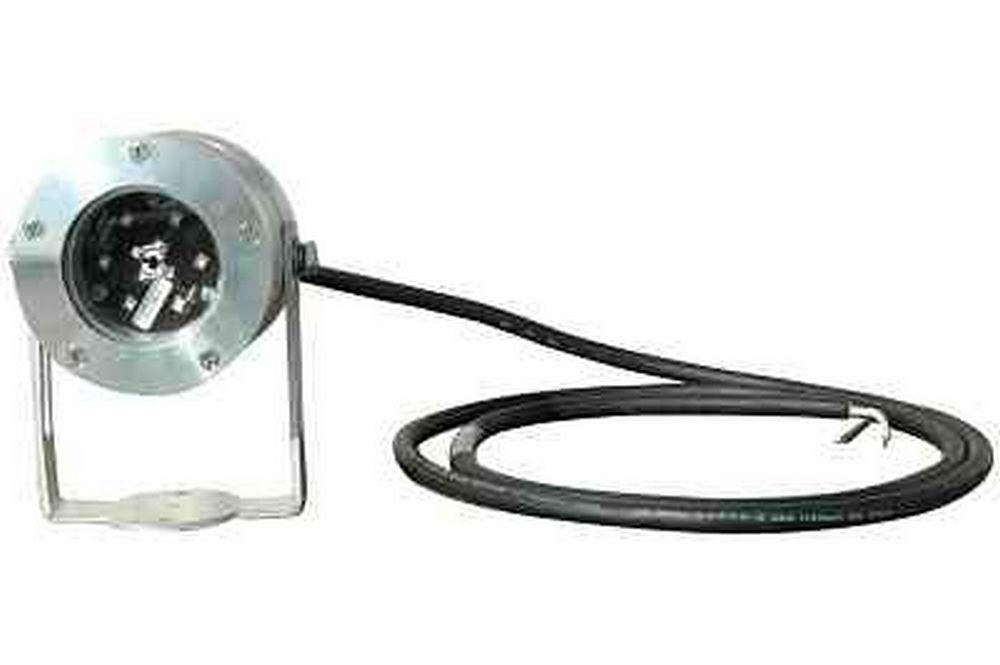

CANLED-C1D2 Hazardous Location LED Light ETL Listed
Lamp Type: LED Class 1 Division 2 Groups A,B,C,D
Lamp Dimensions (w/o Bracket): 3.47" Diam" x 4.44"-Depth  CSA 22.2 No. 250.0
Lamp Dimensions (w/ Bracket): 4.87"-H x 4.22" W UL 1598
Weight: 2.3 lb | 1.04 k g IP66 Ingress Protection
Watts: 7.9 W @ 12 VDC | 8.4 W @ 24 VDC T3 Temperature Rating
Voltage: 12-28 VDC LM-80 > 60,500 hrs (based on Cree long term tests)
Lumens: Spot: 587 - Flood: 459
Lamp Life Expectancy: 100,000 Hours
CRI: CW: 75, NW: 75, WW: 80
Amps: 0.66 A @12 VDC | 0.35 A @ 24 VDC
Light Color: CW: 6500K, NW: 4300K, WW: 3500K
Beam Type: 30° Spot or 120° Flood
Mounting: 1/4” - 20 Screws /Aluminum Yoke
Materials: Machined aluminum housing - acrylic lens
Housing Finish: Clear anodized finish
Temp Range: -40°C to +85°C
Typical Case Temperature: ~20°C above ambient temperature
Wiring: 5Ft Lead | White: + Black: - E-mail:

' Product Overview '
Buy American Compliant The Larson Electronics CANLED-C1D2 is a low voltage hazardous area lighting solution approved for Class 1 Division 2 Environments and 1598 compliant for use in wet locations. This powerful LED light produces 587 lumens, operates from 12 or 24 VDC, and is available in a variety of configurations to allow tailoring to the specific requirements of various applications. The CANLED-C1D2 is designed to provide a high output and ruggedly durable lighting solution for applications where Class1 Division 2 compliance is required. This low voltage explosion proof light can be operated with either 12 or 24 volt DC current and includes 5 feet of connecting lead with standard two wire configuration. This light is constructed of precision machined aluminum for excellent strength and durability and is rated IP66 for ingress protection against direct exposure to high pressure water spray. The CANLED-C1D2 is available in a 30 degree spotlight beam configuration for distance and a 120 degree configuration for wide area illumination, and a cool white color temperature for maximum illumination. The high output, cool running operation, and good color rendering properties of this light make it an ideal replacement for older, bulkier, and less reliable incandescent and halogen lamps.
Click Photo to Enlarge
Durability: The CANLED-C1D2 hazardous location LED light is constructed of machined aluminum for high strength and durability with a clear anodized finish for increased corrosion resistance. The housing is IP66 rated, providing protection against intrusion into the housing from oils and water directly sprayed on the housing at high pressure. This LED light is  equipped with an impact resistant acrlyic lens for increased safety compared to glass lenses. This design is weather resistant, suitable for indoor or outdoor applications, and ideal for areas where wet conditions are commonly encountered. High Output LEDs: The LEDs in this unit are Cree X-Lamp XR-E units that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 90 lumens per watt output and have a 70% lumen retention at 100,000 hours, giving them better efficiency and operational life than comparable LEDs. These lights are equipped with high purity optics and available in a 30 degree spotlight configuration for long beam length or 120 degree flood configuration for wide area coverage. Utilizing an acrylic lens, this fixture produces a higher light output than similar fixtures equipped with thicker glass lenses. The CANLED-C1D2 has multiple color temperature options and is offered in 6500K cool white with a color rendering of 75, 4300K neutral white with a color rendering of 75, and 3500K warm white with a color rendering of 80.  Mounting: Mounting for this unit is provided by an included aluminum yoke that allows vertical adjustment of the light once installed. The mounting yoke is predrilled with two ¼ inch holes spaced 1-1/2 inches apart for easy and secure mounting to flat surfaces. The entire assembly weighs 2.3 lbs and measures only 3.47 inches in diameter and approximately 4-1/2 inches deep, making it ideal for mounting in areas where space is limited and a heavy fixture cannot be installed due to lack of support. Wiring/Power: These hazardous location LED lights are equipped with 5 feet of cord containing a standard two wire (White+ Black-) connecting configuration. These lights operate from 12 or 24 volt DC current at 7.9 watts 0.66 amps on 12 VDC and 8.4 Watts 0.35 amps on 24 VDC. Versatility: The CANLED-C1D2 is ETL approved for Class 1 Division 2 groups A, B, C, and D locations. This unit carries an IP66 waterproof rating ensuring protection against ingress from oils and water sprayed at high pressure directly on the fixture. This light is ideal for indoor or outdoor applications, food processing, and industrial operations with hazardous location classification where wet conditions are commonly encountered.
