Larson Explosion Proof Cable Gland - Nickel Plated Brass - Unarmored/Braided - ATEX Rated, IP68 - 3/4" NPT

Larson ElectronicsSKU: PL3-CGB-A2F-NPB-25-0.75IN
filler

Price:
Sale price$46.00
 More payment options

Description

Made in the USA

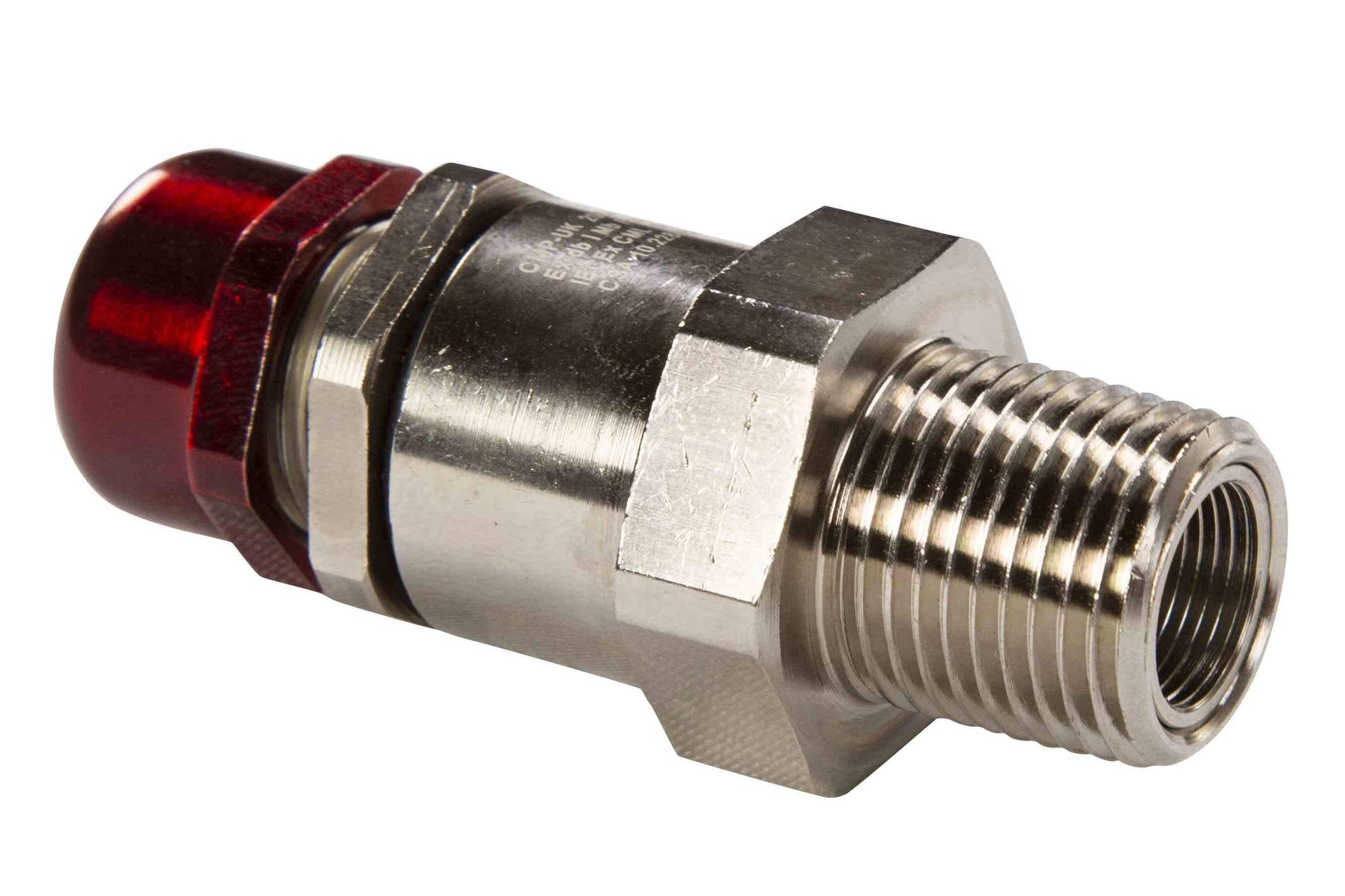

The Larson Electronics CGB-A2F-NPB-25-0.75IN Explosion Proof Cable Gland provides secure and safe cable connections in combustible facilities. This unarmored, braided cable gland is constructed of electroless nickel plated brass and caters to standard 1/2" NPT hubs for connection.
The CGB-A2F-NPB-25-0.75IN is a heavy duty cable gland for flammable and rugged environments. This unarmored, braided unit features a standard entry thread of 1/2" NPT and a minimum/maximum cable diameter of 0.125" NPT/0.783" NPT. The ATEX-rated cable gland is constructed of electroless nickel plated brass, stainless steel and aluminum. A thermoplastic elastomer is used to seal the unit. The accessory is waterproof (IP66-IP68) and designed for use in environments ranging between -60°C to +130°C.
Applications:
Mechanical cable retention, cable connections, cable fittings, explosive work sites, hazardous locations, instrumentation, telecommunication, cable management and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications / Additional Information
CGB-A2F-NPB-25-0.75IN Cable Gland
Ratings
Unit Type:
Explosion Proof Cable Gland
Zone 1, 2, 21, 22
Weight:
1.90 oz
ATEX Certifed
Cable:
Unarmored, Braided
IECEx, CSA Approved
Entry Thread (Hub):
1/2" NPT
INMETRO Approved
Minimum Thread Length:
0.783" NPT
GOST R, GOST K Certified
Cable Diameter:
0.125" NPT (Min) to 0.342" NPT (Max)
Lloyds, DNV, ABS Approved
Across Flats:
0.944" NPT (Max)
Rok, GGTN Permitted
Across Corners:
1.04" NPT (Max)
IP66/IP67/IP68
Nominal Protrusion Length:
0.826" NPT
Operating Temp:
-60°C to +130°C
Materials:
Brass w/ Nickel Plated Entry, Electroless Nickel Plated Brass, SS, Aluminum, Thermoplastic Elastomer (Seal)
Special Orders- Requirements
Contact us for special requirements
Toll Free:
1(647) 254-9757
Intl:
1-214-616-6180
E-mail:
Contact info@purilite.ca
Scroll Down to Purchase
