Larson Explosion Proof Cable Gland - 1/2" NPT - Nylon -.250-.375" Cable OD

Larson ElectronicsSKU: PL3-CGB-NY-STR-0.5-WHT
filler

Price:
Sale price$56.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

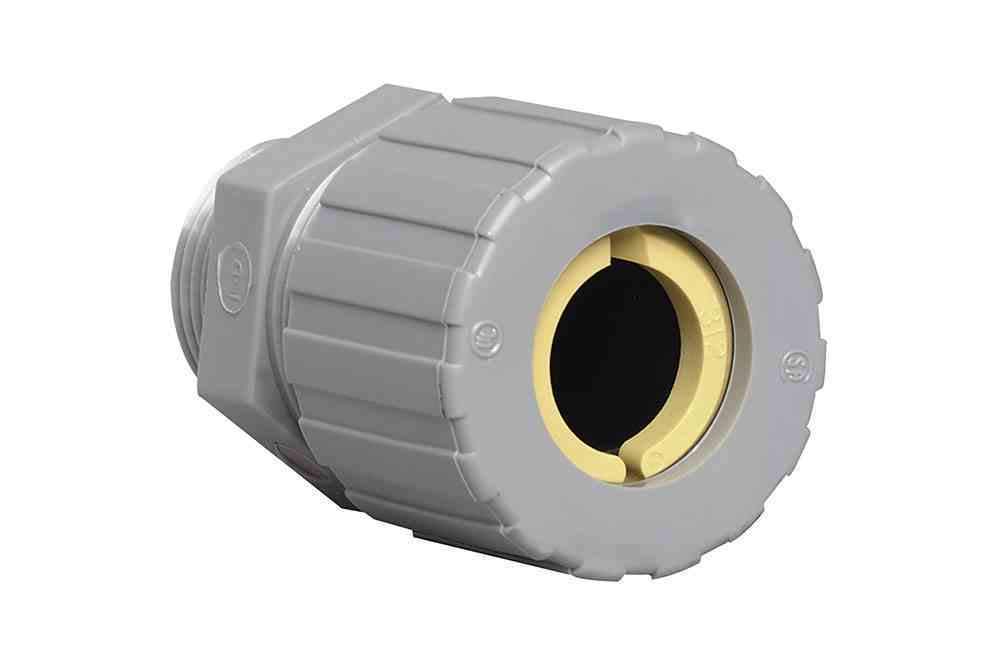

The Larson Electronics CGB-NY-STR-0.5-WHT Explosion Proof Cable Gland provides secure and safe cable connections in combustible facilities. This Class I Division 2 rated cable gland is constructed of nylon and caters to standard 1/2" NPT hubs for connection. The CGB-NY-STR-0.5-WHT is suitable for use in hazardous location applications when installed according to NEC articles.
The CGB-NY-STR-0.5-WHT is a heavy duty cable gland for hazardous and corrosive environments. This unit features a standard entry thread of 1/2" NPT and a minimum/maximum cable diameter of 0.620-0.125" NPT. The Class I Zone 2 cable gland is constructed of durable nylon. The accessory is waterproof (IP66-IP68). This explosion proof cable gland is designed for use in environments ranging between -60°C to +100°C.
Applications:
Corrosive environments, food processing facilities, chemical and sewage treatment plants, and off-shore and dockside installations
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Unit Type: Explosion Proof Cable Gland
Weight: 0.5 lb
Height:   2 in
Length:   2 in 0.531" 1.50"
Width:   1 in 0.578"
Dimensions: 1.25"OD x 2.03"L
Entry Thread (Hub): 1/2" NPT
Thread Length: 0.531"
Thread Width: 0.578"
Number of Conductors: -
Cable Diameter: 0.620" (Min) to 0.125" (Max)
Nominal Protrusion Length: 1.50"
Operating Temp: -60°C to +100°C
Materials: Nylon
