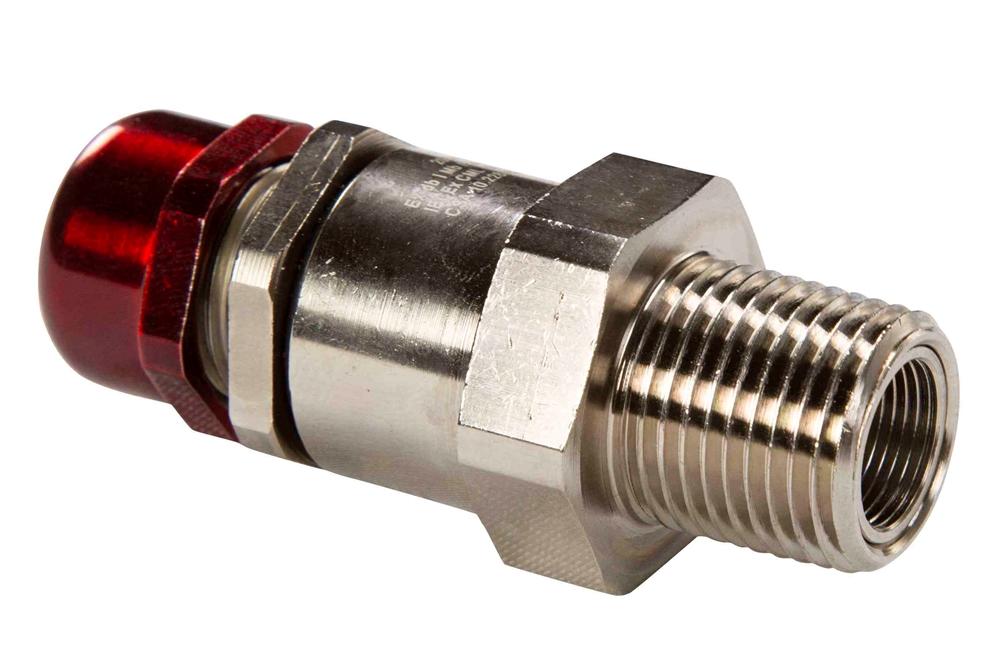

Explosion Proof Cable Gland, 2-1/2" NPT, Nickel Plated Brass, 2.08-2.44" OD, C1D1 ATEX IEC Ex N4X

LARSON ELECTRONICSSKU: PL3-CGB-PXSS2K-NPB-75S-2.5IN
filler

Price:
Sale price$2,230.00

Description

Specifications / Additional Information
CGB-PXSS2K-NPB-75S-2.5IN Cable Gland Ratings
Unit Type: Explosion Proof Cable Gland (Unarmored) Certified for United States, Canada, Europe, Brazil, International
Weight: 2.03 lbs Class I, Divisions 1 & 2, Groups A, B, C, D
Entry Thread (Hub): 2 1/2" NPT Class I, Zones 1 & 2
Minimum Thread Length: 1.57" Class II, Divisions 1 & 2, Groups E, F, G
Diameter Over Conductors: 2.354" Zone 1, 2, 21, 22
Number of Conductors: 320 (Max) Ex db IIC Gb, Ex eb IIC Gb
Cable Diameter: 2.08" (Min) to 2.44" (Max) Ex nR IIC Gc, Ex ta IIIC Da
Nominal Protrusion Length: 3.898" Ex db I Mb, Ex eb I Mb
Operating Temp: -60°C to +100°C ATEX Certifed
Materials: Nickel Plated Brass, SS, Aluminum, Halogen Free Thermoplastic Elastomer (Seal) IEC Ex Certified
  INMETRO Approved
  GOST R, GOST K Certified
  Lloyds, DNV, ABS Approved
  Rok, GGTN Permitted
  IP66/IP67/IP68
  NEMA 4X





  Fax: 1-903-498-3364

' Product Overview '
The Larson Electronics CGB-PXSS2K-NPB-75S-2.5IN Explosion Proof Cable Gland provides secure and safe cable connections in combustible facilities. This unarmored, triple certified flameproof cable gland is constructed of nickel plated brass and caters to standard 2 1/2" NPT hubs for connection. The CGB-PXSS2K-NPB-75S-2.5IN is a heavy duty cable gland for flammable and rugged environments. This unarmored unit features a standard entry thread of 2 1/2" NPT and a minimum/maximum cable diameter of 2.08"-2.44" NPT. The ATEX-rated cable gland is constructed of nickel plated brass, stainless steel and aluminum. A halogen-free thermoplastic elastomer/barrier compound is used to seal the unit. The accessory is NEMA 4X rated and waterproof (IP66-IP68). This explosion proof cable gland is designed for use in environments ranging between -60°C to +100°C. Applications: Mechanical cable retention, cable connections, cable fittings, explosive work sites, hazardous locations, instrumentation, telecommunication, cable management and more.
