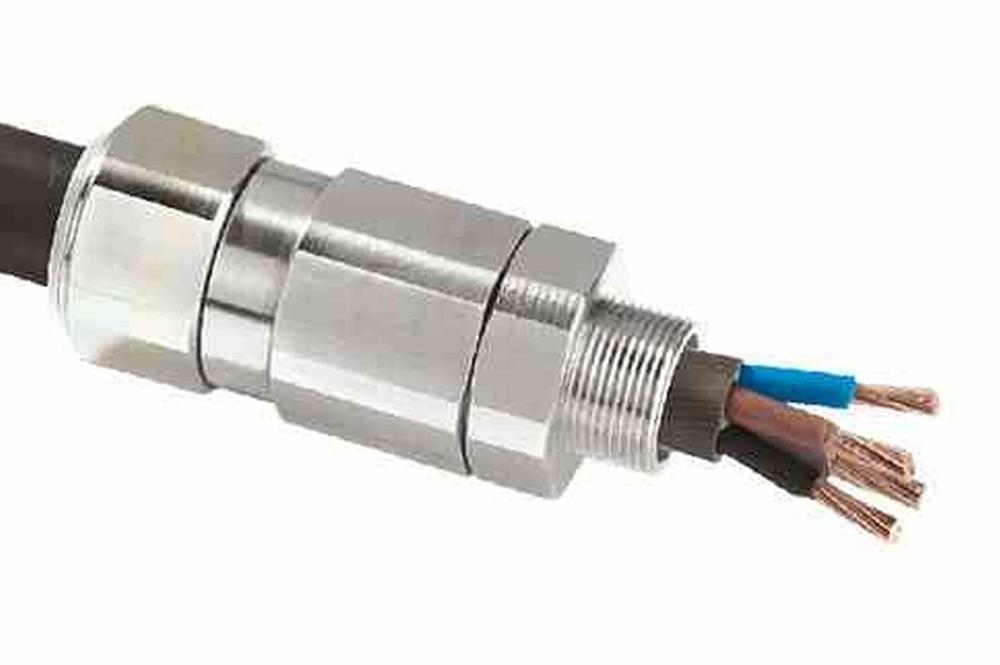

Explosion Proof Cable Gland - M20 NPT - 316 Stainless Steel - ATEX Rated, N4X - 9.906-16.002MM Cable

LARSON ELECTRONICSSKU: PL3-CGB-PXSS2K-SS-20L-M20
filler

Price:
Sale price$592.00
 More payment options

Description

Specifications / Additional Information
CGB-PXSS2K-SS-20L-M20 Cable Gland Ratings
Unit Type: Explosion Proof Cable Gland (Unarmored) Zone 1, 2, 21, 22
Weight: 0.44 lb ATEX Certified
Entry Thread (Hub): M20 IECEx, CSA Approved
Minimum Thread Length: 15mm INMETRO Approved
Diameter Over Conductors: 12.6mm (Max) GOST R, GOST K Certified
Number of Conductors: 15 (Max) Lloyds, DNV, ABS Approved
Cable Diameter: 9.906mm (Min) to 16.002mm (Max) Rok, GGTN Permitted
Dims Across Flats: 30.5mm (Max) IP66/IP67/IP68
Dims Across Corners: 33.3 mm (Max) NEMA 4X
Nominal Protrusion Length: 60.5 mm
Operating Temp: -60°C to +100°C
Materials: 316 Stainless Steel, SS, Aluminum, Halogen Free Thermoplastic Elastomer (Seal)


  Fax: 1-903-498-3364

' Product Overview '
Made in the USA The Larson Electronics CGB-PXSS2K-SS-20L-M20 Explosion Proof Cable Gland provides secure and safe cable connections in combustible facilities. This unarmored, triple certified flameproof cable gland is constructed of 316 stainless steel and caters to standard M20 hubs for connection. The CGB-PXSS2K-SS-20L-M20 is a heavy duty cable gland for flammable and rugged environments. This unarmored unit features a standard entry thread of M20. The ATEX-rated cable gland is constructed of 316 stainless steel, stainless steel and aluminum. A halogen-free thermoplastic elastomer/barrier compound is used to seal the unit. The accessory is NEMA 4X rated and waterproof (IP66-IP68). This explosion proof cable gland is designed for use in environments ranging between -60°C to +100°C. Applications: Mechanical cable retention, cable connections, cable fittings, explosive work sites, hazardous locations, instrumentation, telecommunication, cable management and more.
