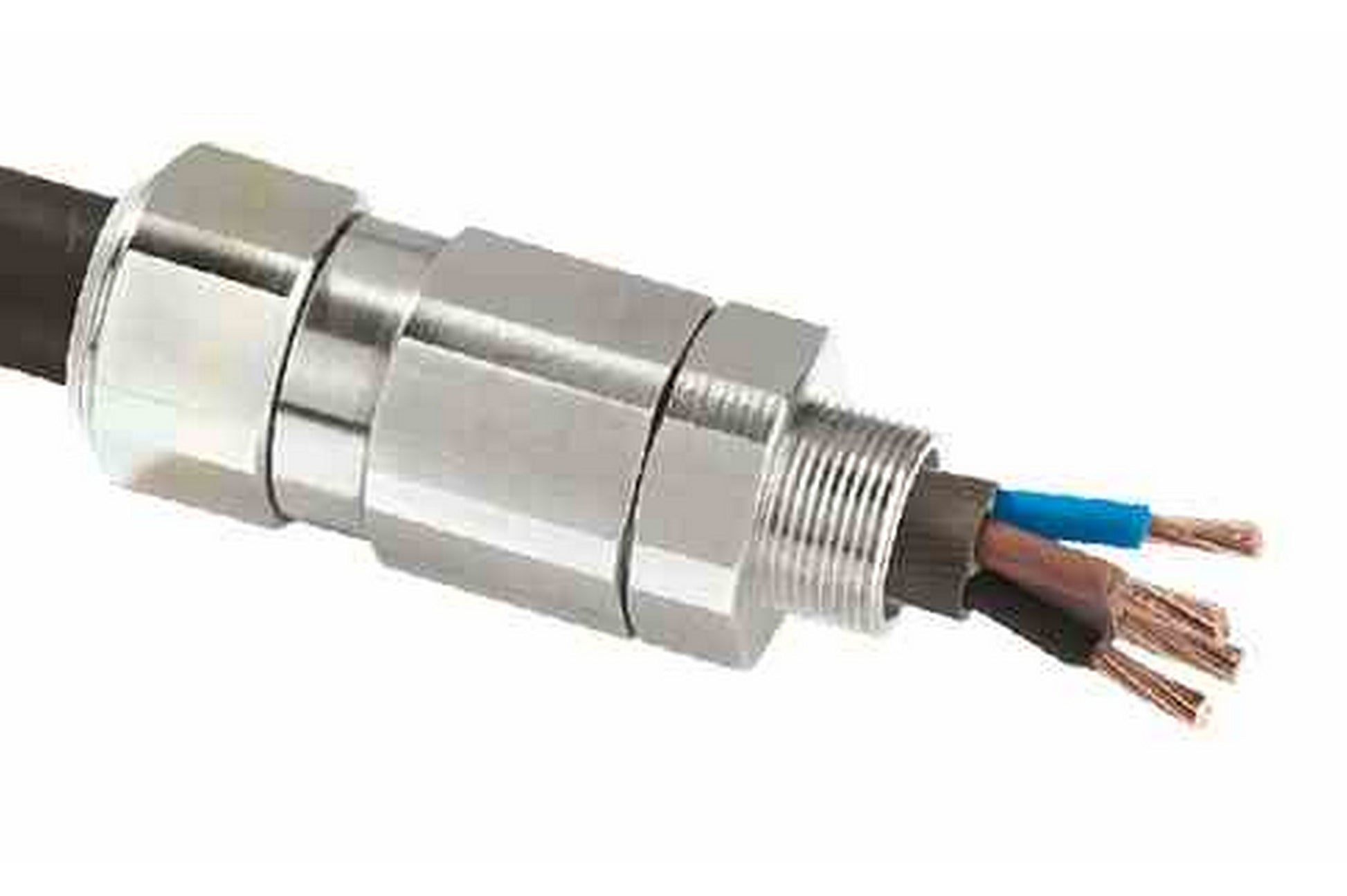

Larson Explosion Proof Cable Gland, 0.5" NPT (M20), Nickel Plated Brass, 0.49-0.82" OD, C1D1 ATEX IEC Ex N4X
Larson Explosion Proof Cable Gland, 0.5" NPT (M20), Nickel Plated Brass, 0.49-0.82" OD, C1D1 ATEX IEC Ex N4X
The CGB-T3CDS-NPB-20-M20 is a heavy duty cable gland for flammable and rugged environments. This armored unit features a standard entry thread of 0.5" NPT (Metric M20) and a minimum/maximum cable diameter of 0.49-0.82" OD. The ATEX-rated cable gland is constructed of nickel plated brass, stainless steel, brass, and aluminum. A halogen-free thermoplastic elastomer/barrier compound is used to seal the unit. The accessory is NEMA 4X rated and waterproof (IP66-IP68). This explosion proof cable gland is designed for use in environments ranging between -60°C to +130°C.
Applications:
Mechanical cable retention, cable connections, cable fittings, explosive work sites, hazardous locations, instrumentation, telecommunication, cable management and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Unit Type: Explosion Proof Cable Gland (Unarmored)
Weight: 0.61 lb
Entry Thread (Hub): 0.5" NPT (M20 Metric)
Minimum Thread Length: 0.78" (15.0 Metric)
Cable Bedding Diameter: 0.26" (6.5mm) (Min) to 0.55" (13.9mm) (Max)
Overall Cable Diameter: 0.49" (12.5mm) (Min) to 0.82" (20.9mm) (Max)
Armor Range: 0.02" (0.4mm) (Min) to 0.04" (1.0mm) (Max) - Grooved Cone; 0.03" (0.8mm) (Min) to 0.05" (1.25mm) (Max) - Stepped Cone
Nominal Protrusion Length: 3.00" (76.2mm)
Operating Temp: -60°C to +130°C
Materials: Nickel Plated Brass, SS, Brass, Aluminum, Halogen Free Thermoplastic Elastomer (Seal)
Cable: Armored - Single Wire Armor (SWA), Aluminium Wire Armor (AWA), Pliable Wire Armor (PWA), Steel Tape Armor (STA), Wire Braid, Aluminium Strip Armor (ASA)
Across Flats: 1.20" (30.5mm) (Max)
Across Corners: 1.32" (33.6mm) (Max)
Armor Clamping: Reversible Armor Cone, Anyway Universal Clamping Ring
Sealing Technique: Inner Bedding Sealing Ring: Compensating Displacement Seal (CDS), Outer Sheath Sealing Ring : Load Retention Seal (LRS)
Seal Area: Cable Inner Bedding, Cable Outer Sheath
