10 Amp Max Waterproof Transformer - Steps Down 120-277V AC to 24V DC - Cord Cap Options - 10' Whips
10 Amp Max Waterproof Transformer - Steps Down 120-277V AC to 24V DC - Cord Cap Options - 10' Whips
| DSG-DCP-10-24V-10x10 Power Converter | DSG-DCP-10-24V-10x10 Features |
| Line In Voltage: 100-277VAC @47~63 hz | IP67 Rated Waterproof |
| Line Out: 24VDC @10 Amps | Overload, Short Circuit, Over Voltage, Over Temperature Protection |
| Watts: 192 | UL1012 Compliant |
| AC Input Connector: 10` Whip w/ Cord Cap | UL60950-1 Compliant |
| DC Output Connector: 10` Whip w/ Cord Cap | International Lighting Safety Standards Compliant |
| Cord Connector: 5-15 Straight,L5-15 Twist,L6-15 Twist,UK BS1363,Intl Schuko, Pigtail w/ Flying Leads | Suitable For LED Moving Signs |
| Protection: Short Circuit/Overload/ Over Voltage/Over Temperature | Suitable For Wet or Damp Locations |
| Mounting: Two Screw Slide Notches |  |
| Operating Temp: -30 / +60C | |
| Efficiency: 93% | |
| Dimensions: 9.6"-L  2.6"-W  1.5"-D | Toll Free: 1-800-369-6671 |
| Weight: 1lbs | Intl: 1-214-616-6180 |
|  | Fax: 1-903-498-3364 |
| E-mail: |

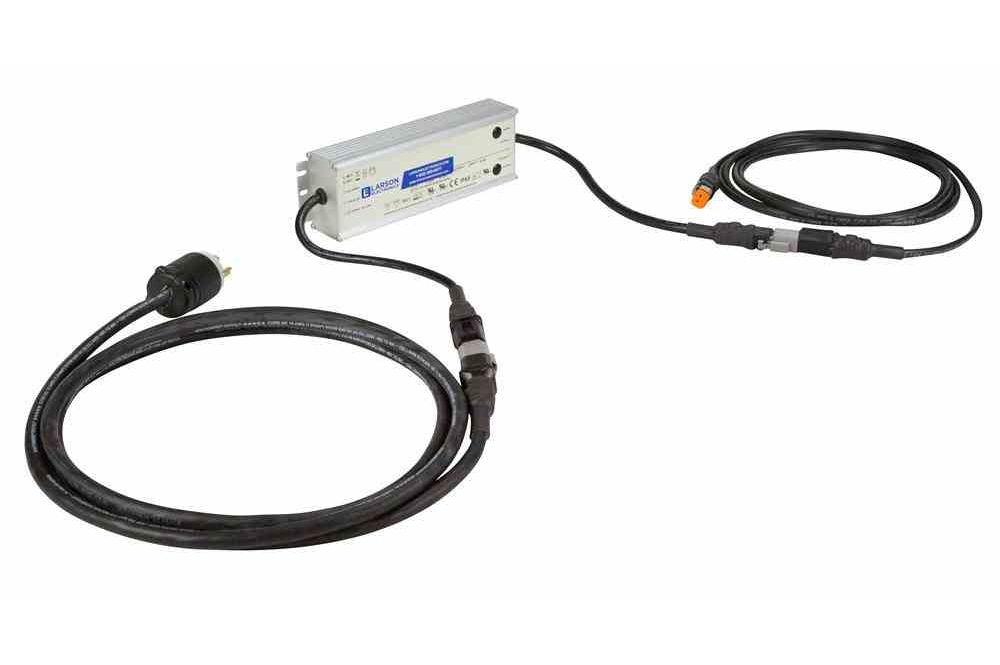

| The Larson Electronics DSG-DCP-10-24V-10x10 Waterproof Power Supply converts commonly used 100-277VAC electrical current to 24VDC @10 Amps. This unit takes voltages within the 100-277VAC range and reduces it to 24VDC, allowing users to use standard AC power to operate equipment like our LED light bars and HID Golights that require 12 Volts DC. The DSG-DCP-10-24V-10x10 192 watt power converter provides a safe and effective way for users to tap into and utilize common 100 to 277 Volt AC power sources and convert this current to 24 Volts DC for use with equipment that requires 24 volt electrical power. This unit can be operated with input current ranging from 100 to 277 VAC and will output 192 watt 24 Volt DC current at 10 amps. This power converter features an IP67 rated waterproof design, making it suitable for indoor or outdoor use and is wet-damp area approved. This converter includes integral short circuit, over voltage, over temperature and overload protection that will shut down the unit or reduce output in case of faults and overloads to protect the unit and connected equipment from damage. The small size and wide input voltage range of this unit make it ideal for indoor-outdoor operation of Larson Electronics LED light bars, Golights and other equipment that requires 24VDC current and anywhere 24 volt DC power is not readily available. Measuring 9.6 inches long by 2.6 inches wide by 1.5 inches deep, this unit weighs approximately one pound and is mounted with two conventional screws via slots that allow removal and repositioning simply by loosening the screws. This converter offers several plug options for the 10’ input lead that include standard 5-15 straight blade plug for 110V wall outlets with ground, NEMA L5-15 twist lock plug for 125V twist lock outlets, NEMA L6-15 twist lock plug for 240V twist lock outlets, BS1363 3-blade plug for United Kingdom outlets, two pin Schuko plug for European outlets and a pigtail with flying leads. The different plug options make this unit “plug-n-play†compatible. THIS WILL NOT WORK WITH THE HID GOLIGHT SPOTLIGHTS (GL-3XXXH-X models). If you purchase this transformer with any of our Larson Electronics lights, we will make sure that the connectors are a match. Features: The DSG-DCP-10-24V-10x10 192 watt converter features full range, universal AC input capability and can be operated with 100 to 277VAC. The unit converts this AC power input to 192 watt, 10 Amp 24VDC output. IP67 rated, this unit is waterproof, wet and damp area approved and suitable for indoor or outdoor applications. Integrally designed protection includes overload, short circuit, over temperature and over voltage safeguards to prevent overheating and unit damage in case of faults or overly heavy current draw. This unit will limit current when an over current condition is encountered and recovers when the condition is removed. This unit will enter hiccup mode under short circuit conditions and recover when the fault is removed. The unit will also shut down when an over temperature condition occurs and recovers automatically when the temperature returns to normal levels. This power converter has a -30 / +60C operating temperature range and is UL UL1012 and UL60950-1 compliant as well as compliant with worldwide safety regulations for lighting. This unit has a 93% conversion efficiency and is suitable for use with moving LED signs and similar LED equipment. These units also feature Power Factor Correction, adjustable output current range from 5~ 10A either through the output cable or internal potential meter and have an input frequency range of 47 ~ 63Hz. NOTE: In order to obtain the best performance and the longest operational life from these units, it is recommended that you do not exceed 75% of the unit’s output amperage. To determine if this converter suits your desired application, add together the total wattage of the equipment you intend to use with this unit and divide this total by 12 volts to find the total amperage draw that will be placed upon the converter. For example, if you are using two of our LEDP10W-60E 60 watt LED lights, 120 watts divided by 24 volts is 5 amps. This would mean the DSG-DCP-10-24V-10x10 is well suited as it would run at 50% capacity to produce the necessary 5 amps. Running these units at 100% of their capacity can create excess heat and lead to shortened converter life. |
