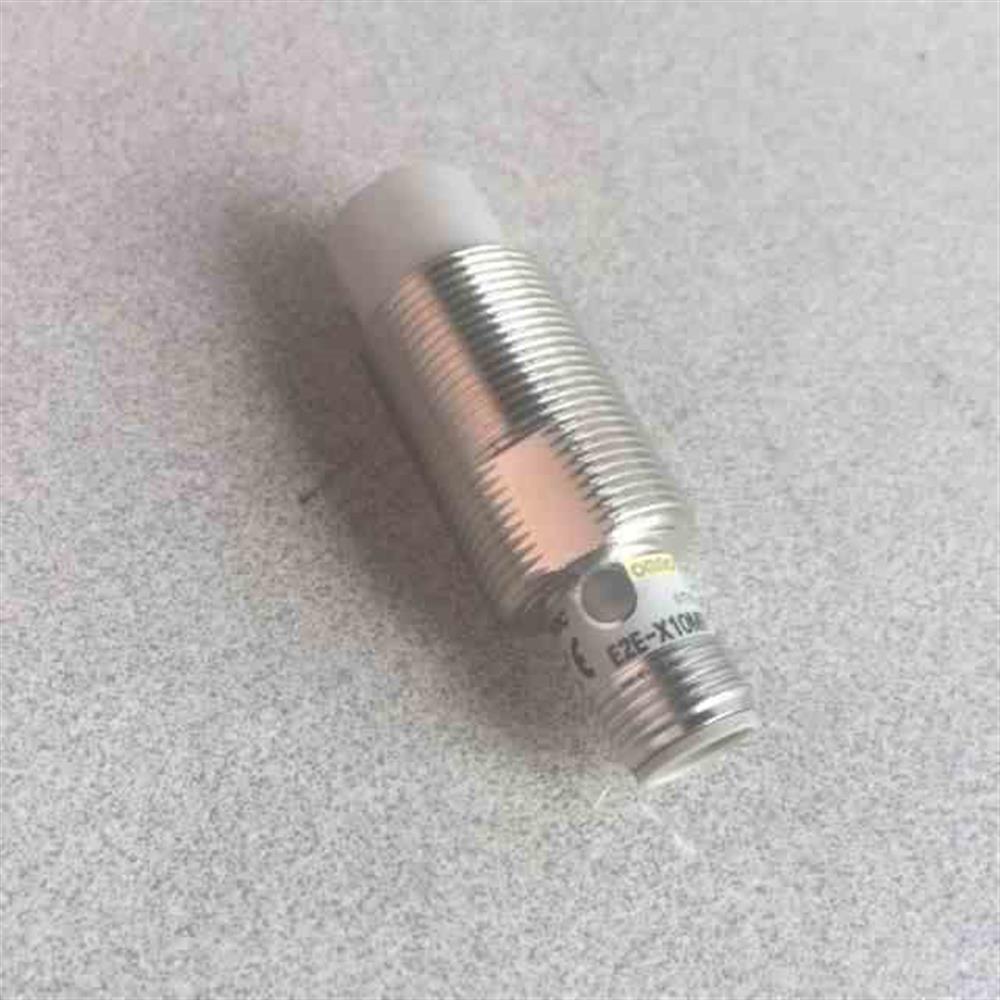

Proximity Sensor - 10V to 40V DC - Inductive, Unshielded - Ferrous Metals - PNP Output - IP67

LARSON ELECTRONICSSKU: PL3-E2E-X10MF1-M1
filler

Price:
Sale price$282.00

Description

Specifications / Additional Information
E2E-X10MF1-M1 Proximity Sensor Ratings
Unit Type: Unshielded, Inductive Proximity Sensor IP67
Dimensions: 1.14" x 2.16" x 1.14"
Barrel Size: 0.7086" (M18)
Weight: 0.375 lbs
Voltage: 10V DC to 40V DC
Current: 13mA
Power Configuration: DC 3-wire
Sensing Method: Inductive
Sensing Distance: 0.39" +/- 10%
Sensing Object: Ferrous Metal
Standard Sensing Object: Iron
Indicator Light: Red
Configuration: NO
Control Output: PNP
Control Output - Switching Capacity: 200mA
Protection: Output Short-cut, Reverse Polarity, Surge Suppressor
Ambient Temperature Rating: -40°C to +85°C
Ambient Humidity:  35 to 95%
Materials: Brass Nickel Plating, Polybutylene Terephthalate, Iron Zinc Plating
Mount: Panel
Connection: 0.4724" (M12)
' Product Overview '
The Larson Electronics E2E-X10MF1-M1 Proximity Sensor is a compact inductive sensing device used to detect ferrous metals. This unit features compatibility with 10V DC to 40V DC and takes on an NO configuration. Constructed of brass nickel/iron zinc plating and polybutylene terephthalate, the 3-wire unshielded sensor can be mounted on panels or racks. The E2E-X10MF1-M1 is an inductive, cylindrical proximity sensor for detecting ferrous metals, including iron, stainless steel, brass and aluminum. This 3-wire unit operates with 10V DC to 40V DC @ 13mA. Equipped with a maximum sensing distance of 0.39" (+/- 10%), the unit contains an NO configuration (output is ON signal during operation or as the target object passes by the sensing zone). A red indicator light advises operators about the status of the industrial sensor. The IP67-rated, unshielded proximity sensor is constructed of brass nickel plating, polybutylene terephthalate and iron zinc plating. Protective features include the following: output short-cut, reverse polarity and surge suppressor. Wiring/Mount: The E2E-X10MF1-M1 features a 0.4724" (M12) hub for connection during installation. This inductive proximity sensor is designed to be mounted on panels or racks. Applications: Manufacturing, industrial processing, detection of ferrous targets, packaging, warehouses, machining, conveyor belts, scanning, automation, industrial production and more.
