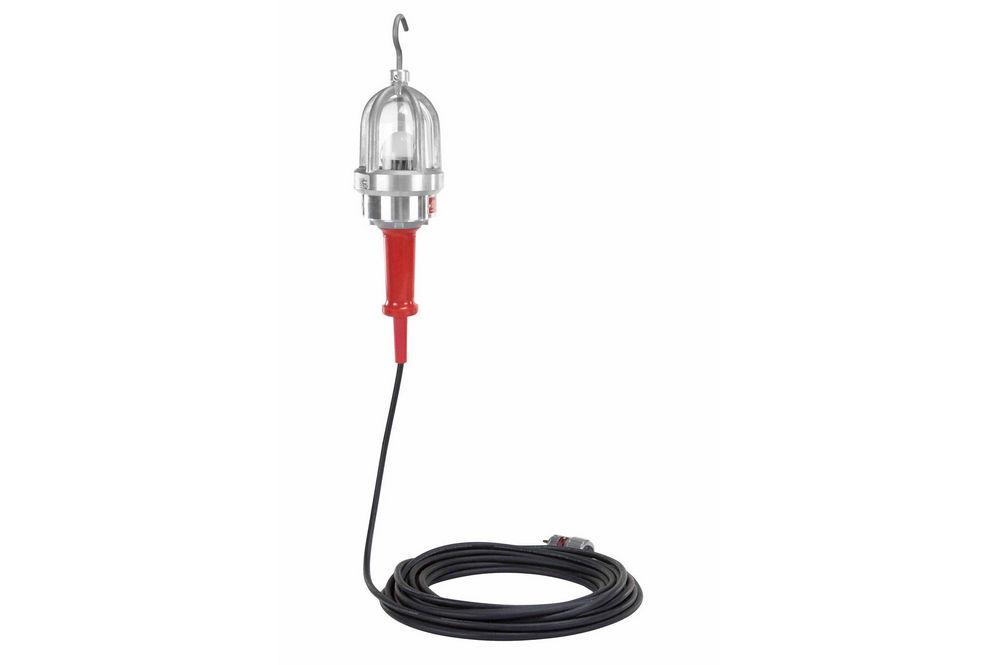

Explosion Proof LED Drop Light / Trouble Light -10 Watt LED - 50' SOOW Cord EXP Plug

LARSON ELECTRONICSSKU: PL3-EHL-LED-7W-50-EPP
filler

Price:
Sale price$1,545.99

Description

Specifications / Additional Information
EHL-LED-7W-50-EPP Explosion Proof LED Drop Light Ratings/Approvals
Listing: United States & Canada Class 1, Division 1 & 2 Groups C, D
Dimensions: Lamp only- 16.5"-L x 5"-Dia Class 2, Division 1 and 2 Groups F, G
Lamp Type: LED
Weight: 12.5 lbs - Lamp only: 5 lbs
Voltage: 120-277V AC, 12V AC/DC, or 24V AC/DC
Total Watts: 10 watts
Lumens: 1050
Luminous Efficacy: 105 Lm/W
Color Temp: 5600k
Color Rendering Index: >80 CRI
Beam Angle: Omni Directional
Power Efficiency: >90%
Power Factor: >0.9
Ambient Operating Temp Range:-50° C to +65°C
Mounting: Aluminum Hook
Wiring: 50` 16/3 SOOW w/ C1D1 Cord Cap Toll Free: 1-800-369-6671
Cord Caps: 15-Amp 5-15 (125V), 20-Amp 5-20 (125V), or 20-Amp 6-20 (250V) Intl: 1-903-270-1187
E-mail:
' Product Overview '
Made in the USA The Larson Electronics EHL-LED-7W-50-EPP Explosion Proof LED Drop Light / Trouble Light is U.L. approved Class 1 Division 1 & 2 Groups C and D - and is ideal for general work activities in hazardous locations requiring explosion proof protection. This 10 watt explosion proof LED work light produces 1050 lumens of bright white light and comes complete with 50 feet of explosion proof cord. The EHL-LED-7W-50-EPP LED drop light has no ballast and the housing is constructed of non sparking aluminum which results in a very lightweight unit. This hazardous location hand lamp is Class 1, Division 1 and 2 and Class 2 Division 1 and 2 hazardous location environment approved. This explosion proof LED drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired. These particular units also come standard with an explosion proof twist-lock plug. The plug is Class 1, Division 1 & 2 and Class 2, Division 1 & 2 rated. In order to complete the seal, operator must take twist-lock explosion proof plug and connect to an explosion proof outlet receptacle. Connecting to a regular 120VAC outlet renders the plug useless and should only be done when connecting the light outside of the explosion proof environment.
100 Watt Incandescent Bulb With the EXP-LED-7W-50
Click Photos to Enlarge Click Photos to Enlarge
This 10 watt LED drop light is suitable for use in areas where petrochemical vapors and various dusts are present and projects 1050 lumens of light, which is twice the lumens per watt output of a 100 watt incandescent bulb. This unit is rated Class 1, Division 1 and comes complete with 50€™ of SOOW 16/3 AWG cord ending in a 5-15 straight blade plug. This hand lamp has a high efficiency LED bulb that requires no ballast, so the operator doesn`t need to drag the ballast housing around. This can be particularly annoying when the transformer becomes entangled in the cord. The light produced by this unit has a 5600k color temperature, which is much sharper and whiter than the light produced by incandescent lamps. The light produced by this lamp is ideal for close work and inspection activities where good contrast and true color representation is needed. The LED lamp in this unit runs much cooler than incandescent or fluorescent lamps, resulting in a lamp housing that remains cool to the touch and eliminates the accidental burns often encountered with incandescent drop lights.
Click Photos to Enlarge
5-15 Straight Blade Plug 5-20 Straight Blade Plug 6-20 Straight Blade Plug
Wiring and Plug: This portable explosion proof LED drop light is equipped with 50 foot of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include C1D1 rated 5-15 15 amp straight blade plug for 110-125V outlets with ground, C1D1 rated 5-20 20 amp straight blade plug for 110-125V outlets with ground, and C1D1 rated 6-20 20 amp straight blade plug for 220-250V outlets with ground. These explosion proof plugs must be mated with the appropriate explosion proof outlet to retain the C1D1 rating. Please choose cord cap option below. Voltage: This light is universal voltage capable and can be operated with 100-277 VAC, 50/60Hz. We also offer a low voltage version of this LED fixture that operates on AC/DC voltages 12V AC/DC or 24 Volts AC/DC.
Made in USA Quality Lamp Features
1. Federal Spec Cord. 2. Explosion Proof. 3. 10 Watt 1050 Lumen LED Lamp. 4. Rugged fabricated steel and cast aluminum construction. 5. Blue and Gray paint finish. 6. UL Class1 Div1 Class 2 Div1 7. 120-277 Volt AC or 11V or 25V AC Operation 8. SOOW cable. 9. Aluminum Hook for Convenient Placement. 10. Explosion Proof Plug -Class I, Div. I & II -Class II, Div. I & II 10 watt LED light produces 1050 lumens Non-sparking aluminum housing 50,000 hour LED Lamp Molded rubber bumper guard Annealed glass tube shields prevent shattering Integrated lamp shock absorbers prevent drop damage Swivel hook for hanging and hands free operation Explosion proof cord Explosion Proof Twist-Lock Plug
