Explosion Proof LED Drop Light /Trouble Light - 10 Watt LED - Low Voltage -50 Foot Cord -12VAC-24VAC

LARSON ELECTRONICSSKU: PL3-EHL-LED-7W-50LV
filler

Price:
Sale price$858.99

Description

Specifications / Additional Information
EHL-LED-7W-50LV Explosion Proof LED Drop Light Approvals/Ratings
UL Listing: United States Class I Divisions 1 and 2 Groups C & D
Dimensions: 16.5"L x 5"Dia Class II Divisions 1 and 2 Groups F & G
Lumens: 1100
Total Watts: 10 Watts
Voltage: 11V AC or 25V AC
Color Temp: 6000K
Mounting: Aluminum Hook
Wiring: 50` 16/3 SOOW Cord w/ General Area Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
Lamp Type: LED
3 year warranty replacement on this LED light (or LED bulbs for light fixtures with removable LED bulbs). After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.

' Product Overview '

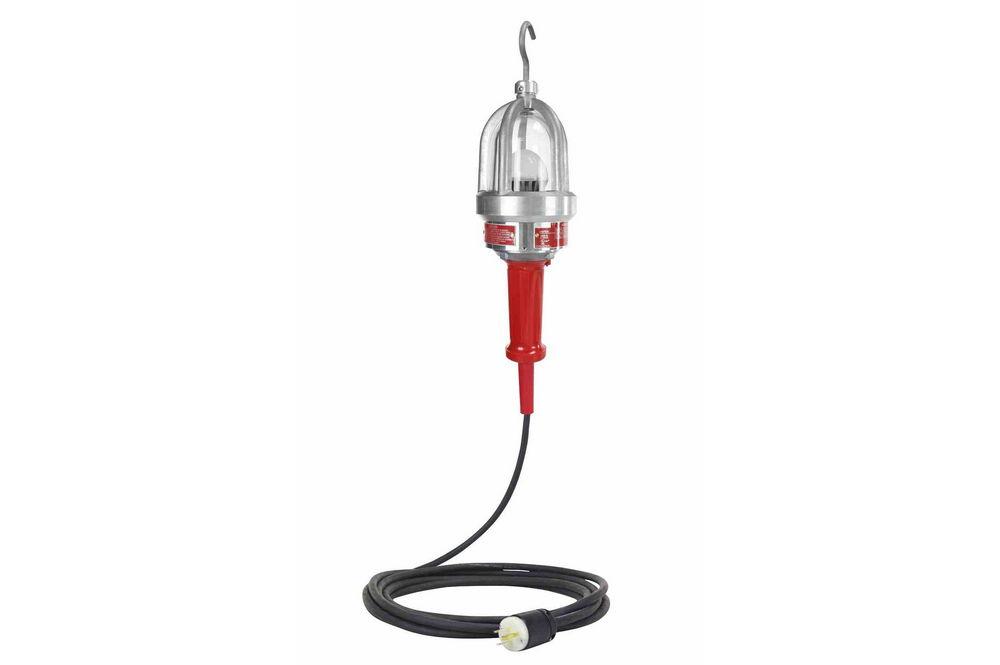

Made in the USA The Larson Electronics EHL-LED-7W-50LV Explosion Proof LED Drop Light / Trouble Light is UL Listed Class I Divisions 1 & 2 Groups C and D - and is ideal for general work activities in hazardous locations requiring explosion proof protection. This 10 watt explosion proof LED work light from Larson Electronics produces 1100 lumens of bright white light and comes complete with 50 feet of 16/3 SOOW cord terminated in a general area cord cap. The EHL-LED-7W-50LV LED drop light has no ballast and the housing is constructed of non sparking aluminum which results in a very lightweight unit. This hazardous location hand lamp is Class I Divisions 1 and 2 and Class II Divisions 1 and 2 hazardous location environment approved. This explosion proof LED drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired.
100 Watt Incandescent Bulb With the EHL-LED-7W-50LV
Click Photos to Enlarge Click Photos to Enlarge Click Photos to Enlarge
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. This 10 watt LED drop light is suitable for use in areas where petrochemical vapors and various dusts are present and projects 1100 lumens of light. This unit is rated Class I Division 1 and comes complete with 50€™ of SOOW 16/3 AWG cord ending in a choice of general area cord caps.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This explosion proof LED drop light is equipped with 50 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. This hand lamp has a high efficiency LED bulb that requires no ballast, so the operator doesn`t need to drag the ballast housing around. This can be particularly annoying when the transformer becomes entangled in the cord. This explosion proof LED hand light operates on low voltage 11 or 25 Volts AC. The light produced by this unit has a 6000k color temperature, which is much sharper and whiter than the light produced by incandescent lamps. The light produced by this lamp is ideal for close work and inspection activities where good contrast and true color representation is needed. The LED lamp in this unit runs much cooler than incandescent or flourescent lamps, resulting in a lamp housing that remains cool to the touch and eliminates the accidental burns often encountered with incandescent drop lights.
Made in USA Quality Lamp Features
1. Federal Spec Cord. 2. Explosion Proof. 3. 10 Watt 1100 Lumen LED Lamp. 4. Rugged fabricated steel and cast aluminum construction. 5. Blue and Gray paint finish. 6. UL Class I Divs 1-2 Class II Divs 1-2 7. 11-25 Volt AC/DC Operation 8. 50` 16/3 SOOW cable with general area cord cap. 9. Aluminum Hook for Convenient Placement. 10 watt LED light produces 1100 lumens Non-sparking aluminum housing 50,000 hour LED Lamp Molded rubber bumper guard Annealed glass tube shields prevent shattering Integrated lamp shock absorbers prevent drop damage Swivel hook for hanging and hands free operation Explosion proof cord
