30W Explosion Proof Integrated LED Drop Light / Trouble Light - 120V AC - 75 Foot SOOW Cord w/ 15A 5-15P Exp. Plug

LARSON ELECTRONICSSKU: PL3-EHL-LED-7W-75-1523
filler

Price:
Sale price$1,193.99

Description

Specifications / Additional Information
EHL-LED-7W-75-1523 Explosion Proof LED Drop Light Ratings/Approvals
Unit Type: Explosion Proof LED Handlamp Certified to NEC, CEC, ATEX, and IEC Ex Standards
Dimensions: Lamp Only - 16.5"-L x 5"-Dia Class I, Division 1, Groups B, C, D
Lamp Type: LED Class I, Division 2, Groups A, B, C, D
Weight: 12.5 lb; Lamp Only - 5 lb Class II, Divisions 1 & 2, Groups E, F, G
Voltage: 120 V AC Class III, Divisions 1 & 2
Total Watts: 30 Watts Ex d IIB T6 Gb/Ex tb IIIC T85°C Db
Lumens: 3000 Zone 1, Zone 21, Zone 2, Zone 22
Luminous Efficacy: 100 Lm/W T6 (C1D1) / T4A (C2D1) Temp Rating
Color Temp: 6000K IP66 Weatherproof
Color Rendering Index: >80 CRI IK10 Rated
Beam Angle: Omni Directional 1.5KV Surge Suppression
Power Efficiency: >90% 360° Illumination
Power Factor: >0.9
Ambient Operating Temp Range:-50°C to +65°C Special Orders - Requirements
Mounting: Aluminum Hook
Wiring: 75' 16/3 SOOW w/ C1D1 Cord Cap Toll Free: 1-800-369-6671
Cord Cap: 15-Amp 5-15P (125V)
E-mail:
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

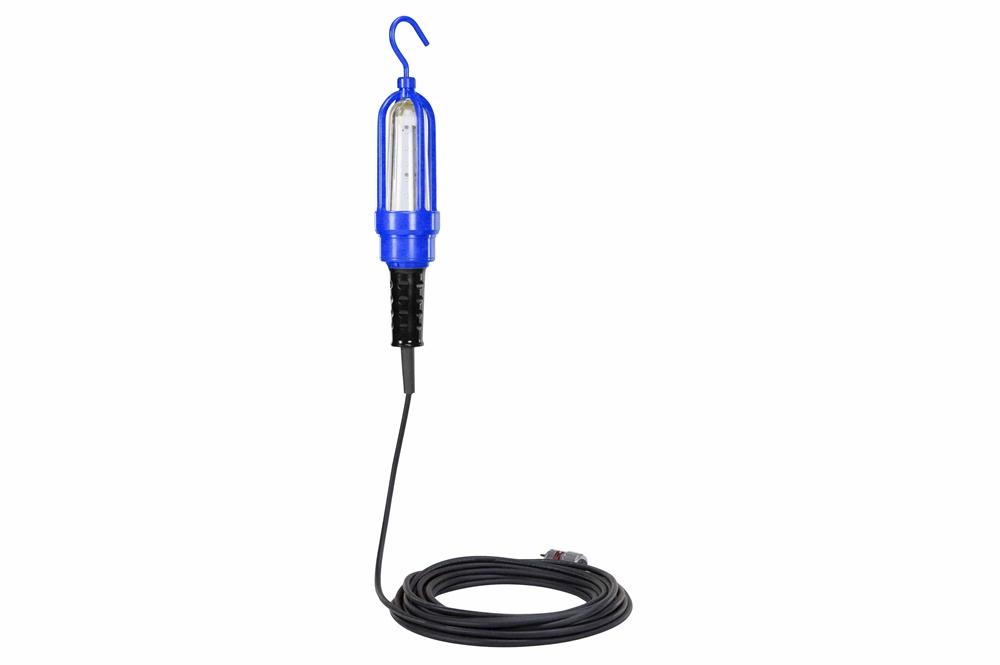

Made in the USA The EHL-LED-7W-75-1523 from Larson Electronics is an Explosion Proof LED Drop Light / Trouble Light that is ideal for general lighting, detailed tasks, and inspections in hazardous locations. This 30-watt unit features 3,000 lumens of illumination. A heavy-duty swivel hook at the top of the handlamp offers versatile mounting on poles, indentions and small openings for hands-free operation. A unique angled board design offers 360° of comprehensive lighting. This explosion proof handlamp is certified to NEC, CEC, ATEX, and IEC Ex standards for worldwide use. This 30 watt explosion proof LED work light produces 3000 lumens of bright white light and comes complete with 75 feet of explosion proof cord. The EHL-LED-7W-75-1523 LED drop light has no ballast and the housing is constructed of non sparking aluminum which results in a very lightweight unit. This hazardous location unit is approved for Class I, Divisions 1 & 2, Class II, Divisions 1 & 2, Zone 1 & 2, and Zones 21 & 22 environments. This explosion proof LED drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired.
100 Watt Incandescent Bulb With the EXP-LED-7W-75
Click Photos to Enlarge Click Photos to Enlarge
This 30 watt LED drop light is suitable for use in areas where petrochemical vapors and various dusts are present and projects 3000 lumens of light, which is twice the lumens per watt output of a 100 watt incandescent bulb. This unit is rated Class I, Division 1 and comes complete with 75' of SOOW 16/3 AWG cord ending in a 5-15P explosion proof cord cap. This hand lamp has a high efficiency LED bulb that requires no ballast, so the operator doesn't need to drag the ballast housing around. This can be particularly annoying when the transformer becomes entangled in the cord. The light produced by this unit has a 6000k color temperature, which is much sharper and whiter than the light produced by incandescent lamps. The light produced by this lamp is ideal for close work and inspection activities where good contrast and true color representation is needed. The LED lamp in this unit runs much cooler than incandescent or fluorescent lamps, resulting in a lamp housing that remains cool to the touch and eliminates the accidental burns often encountered with incandescent drop lights.
5-15 Straight Blade Plug
Wiring and Plug: This portable explosion proof LED drop light is equipped with 75 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with a C1D1 rated 5-15 15 amp straight blade plug for 110-125 V outlets with ground. This explosion proof plugs must be mated with the appropriate explosion proof outlet to retain the C1D1 rating. Please choose cord cap option below. Voltage: This light is universal voltage capable and can be operated with 120 V AC, 50/60 Hz.
