30W Explosion Proof Integrated LED Drop Light / Trouble Light - Low Voltage AC - 75' 16/3 SOOW Cord w/ Gen. Area Cord Cap

LARSON ELECTRONICSSKU: PL3-EHL-LED-7W-75LV-AC
filler

Price:
Sale price$1,369.99

Description

Specifications / Additional Information
EHL-LED-7W-75LV-AC Explosion Proof LED Drop Light Ratings/Approvals
Unit Type: Explosion Proof LED Handlamp Certified to NEC, CEC, ATEX, and IEC Ex Standards
Dimensions: Lamp Only - 16.5"-L x 5"-Dia Class I, Division 1, Groups B, C, D
Lamp Type: LED Class I, Division 2, Groups A, B, C, D
Weight: 12.5 lb; Lamp Only - 5 lb Class II, Divisions 1 & 2, Groups E, F, G
Voltage: 12 V AC or 24 V AC (Low Voltage AC ONLY) Class III, Divisions 1 & 2
Total Watts: 30 Watts Ex d IIB T6 Gb/Ex tb IIIC T85°C Db
Lumens: 3000 Zone 1, Zone 21, Zone 2, Zone 22
Luminous Efficacy: 100 Lm/W T6 (C1D1) / T4A (C2D1) Temp Rating
Color Temp: 6000K IP66 Weatherproof
Color Rendering Index: >80 CRI IK10 Rated
Beam Angle: Omni Directional 1.5KV Surge Suppression
Power Efficiency: >90% 360° Illumination
Power Factor: >0.9
Ambient Operating Temp Range:-50°C to +65°C Special Orders - Requirements
Mounting: Aluminum Hook
Wiring: 75' 16/3 SOOW w/ General Area Cord Cap Toll Free: 1-800-369-6671
Cord Cap Options: 5-15, 6-15, 5-20, 6-20, L5-15, L6-15, L5-20, L6-20, BS1363, Schuko, or Pigtail
E-mail:
' Product Overview '
function MM_openBrWindow(theURL,winName,features) { //v2.0 window.open(theURL,winName,features); }

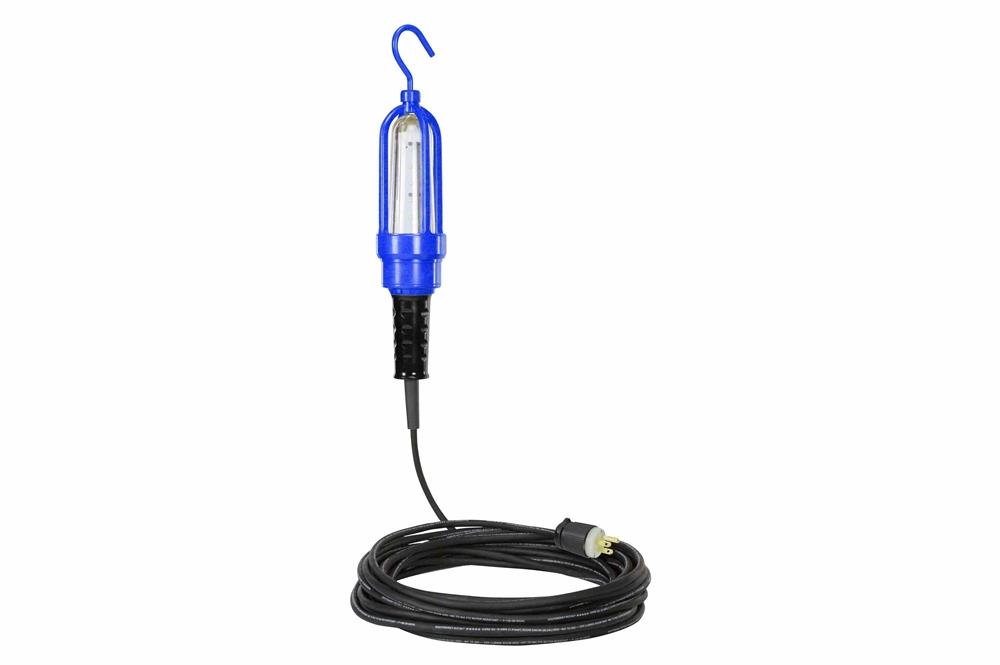

Made in the USA The EHL-LED-7W-75LV-AC from Larson Electronics is an Explosion Proof LED Drop Light / Trouble Light that is ideal for general lighting, detailed tasks, and inspections in hazardous locations. This 30-watt unit features 3,000 lumens of illumination. A heavy-duty swivel hook at the top of the handlamp offers versatile mounting on poles, indentions and small openings for hands-free operation. A unique angled board design offers 360° of comprehensive lighting. This explosion proof handlamp is certified to NEC, CEC, ATEX, and IEC Ex standards for worldwide use. This 30 watt explosion proof LED work light produces 3000 lumens of bright white light and comes complete with 75 feet of explosion proof cord. The EHL-LED-7W-75LV-AC LED drop light has no ballast and the housing is constructed of non sparking aluminum which results in a very lightweight unit. This hazardous location unit is approved for Class I, Divisions 1 & 2, Class II, Divisions 1 & 2, Zone 1 & 2, and Zones 21 & 22 environments. This explosion proof LED drop light is ideal for hazardous work areas where a ready source of easily managed lighting is desired.
100 Watt Incandescent Bulb With the EXP-LED-7W-75
Click Photos to Enlarge Click Photos to Enlarge
This 30 watt LED drop light is suitable for use in areas where petrochemical vapors and various dusts are present and projects 3000 lumens of light, which is twice the lumens per watt output of a 100 watt incandescent bulb. This unit is rated Class I, Division 1 and comes complete with 75' of SOOW 16/3 AWG cord ending in a choice of general area cord caps. This hand lamp has a high efficiency LED bulb that requires no ballast, so the operator doesn't need to drag the ballast housing around. This can be particularly annoying when the transformer becomes entangled in the cord. The light produced by this unit has a 6000k color temperature, which is much sharper and whiter than the light produced by incandescent lamps. The light produced by this lamp is ideal for close work and inspection activities where good contrast and true color representation is needed. The LED lamp in this unit runs much cooler than incandescent or fluorescent lamps, resulting in a lamp housing that remains cool to the touch and eliminates the accidental burns often encountered with incandescent drop lights.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125 V Rated L5-15 Twist Lock Plug 15 Amp / 125 V Rated L6-15 Twist Lock Plug 15 Amp / 250 V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250 V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250 V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This portable explosion proof LED drop light is equipped with 75 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110 V wall outlets with ground, standard 5-20 20 amp straight blade plug for 110 V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240 V wall outlets with ground, standard 6-20 20 amp straight blade plug for 220-240 V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L5-20 20 amp twist lock plug for 125 V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240 V twist lock outlets, NEMA L6-20 20 amp twist lock plug for 240 V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250 V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Voltage: This light operates on low voltage AC current. It can operate on either 12 V AC or 24 V AC. Make your selection when ordering. *Please note that this fixture is designed to operate on low voltage AC ONLY. Any attempt to use higher voltages to power this unit will result in damage (and likely failure) of the fixture.*
