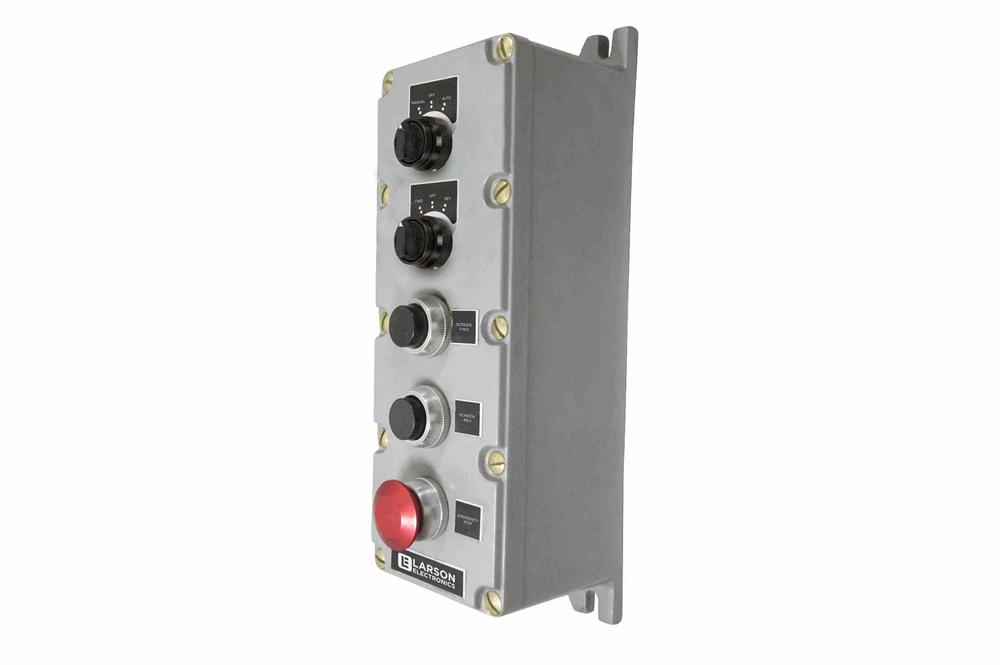

Explosion Proof Control Station - Class I, II, III- (1) E-stop, (2) PBs, (1) 3-Pos Switch, (1) PL/Green - NEMA 7/9
Explosion Proof Control Station - Class I, II, III- (1) E-stop, (2) PBs, (1) 3-Pos Switch, (1) PL/Green - NEMA 7/9
| EPCS-1XEST-2XMPB-1X3PS-1XPL.G-MOD1 Explosion Proof Control Station | Ratings |
| Listing: NRTL Listed for United States & Canada | Class I, Division 1 & 2, Groups C,D |
| Dimensions: 13" x 3.25" x 4.1875" | Class I, Zones 1 & 2, Groups llB, llA |
| Weight: - | Class II, Division 1 & 2, Groups E,F,G |
| Rated Voltage: 600V AC (Maximum) | Class III |
| Emergency Stop: (1) Push-pull Maintained Mushroom Pushbutton, Red- 1 NO/1 NC, 250V | NEMA 7(C,D) 9(E,F,G) |
| Push Buttons: (1) Start - Momentary, Black, (1) Reset - Momentary, Black | NRTL Listed to UL 1203 |
| Push Button Contacts: (2) NO/250V - One Contact per Push Button | NRTL Listed to CSA C22.2 No 30, 25 |
| Selector Switch: (1) 3 Positions w/ Legend Plate- Program 1, Program 2, Purge | Operator Legend Plates |
| Pilot Light: (1) Green | |
| Pilot Light Voltage: 120V, 240V, or 24V DC | |
| Ambient Temperature Rating: - | |
| Temperature Rating: - | |
| Materials: Aluminum and SS | |
| Enclosure Type: Drilled and Tapped (5) Operator Holes | |
| Mount: Surface | |
| Hubs: (1) 3/4" NPT @ Bottom |
| Made in the USA The Larson Electronics EPCS-1XEST-2XMPB-1X3PS-1XPL.G-MOD1 Explosion Proof Control Station is suitable for busy operations in hazardous locations. Featuring five drilled and tapped operator holes, the unit supports several control mechanisms for heavy-duty machines. One push-pull emergency stop, two push buttons, one 3-position selector switch and one green pilot light are available on this station. Constructed of aluminum with stainless steel components, the NEMA-rated unit is surface mount compatible. The EPCS-1XEST-2XMPB-1X3PS-1XPL.G-MOD1 is a durable explosion proof control station designed for hazardous locations. Featuring a maximum voltage rating of 600V AC, this unit supports a total of five drilled and tapped operator holes. For emergency stop, a single push-pull maintained contact (250V) mushroom head is available with an "E-stop" legend plate. Operators are provided access to one black push button with one NO/250V contact and a "Start" legend plate. One black push button with one NO/250V contact and a "Reset" legend plate is also available on the system. There is one 3-position switch with the following legend plate: Program 1, Program 2, Purge. One green pilot light, which operates on 120V, 240V or 24V (voltage specific), can be found on the unit. The EPCS-1XEST-2XMPB-1X3PS-1XPL.G-MOD1 is constructed of aluminum with stainless steel parts. Operator name plates are displayed for accurate and proper use of the unit. Hubs: There is one 3/4" NPT hub located at the bottom of the device for completing wiring connections. Mount: The EPCS-1XEST-2XMPB-1X3PS-1XPL.G-MOD1 is compatible with surface mounting installations. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers and more. |
