Explosion Proof Control Station - C1D1, C2D1 - Red/Green Momentary Push Buttons, Pilot Lights

LARSON ELECTRONICSSKU: PL3-EPCS-2XPB-MS-2XPL.RG
filler

Price:
Sale price$2,682.00

Description

Specifications / Additional Information
EPCS-2XPB-MS-2XPL.RG Explosion Proof Control Station Ratings/Approvals
Listing: NRTL Listed for United States, Canada Class I, Division 1 & 2, Groups C,D
Unit Type: Explosion Proof Control Station Class I, Zones 1 & 2, Groups llB, llA
Dimensions: 5-7/8"H x 6-1/2"W x 4-1/4"D Class II, Division 1 & 2, Groups E,F,G
Weight: - Class III
Push Button Rated Voltage: 600V AC (Maximum) NEMA 7(C,D), 9(E,F,G)
Push Button Rated Amps: 10A
Push Button Type: (1) Red/Momentary, (1) Green/Momentary
Contacts: Normally Open, Normally Closed or NO/Green and NC/Red
Pilot Light Voltage: 120V or 240V
Pilot Light Type: (1) Red, (1) Green
Ambient Operating Temperature: -
Temperature Rating: -
Materials: Aluminum and SS Toll Free: 1-800-369-6671
Enclosure Type: Dead End or Feed Through
Mount: Surface
Hub Size:1/2" NPT or 3/4" NPT
' Product Overview '

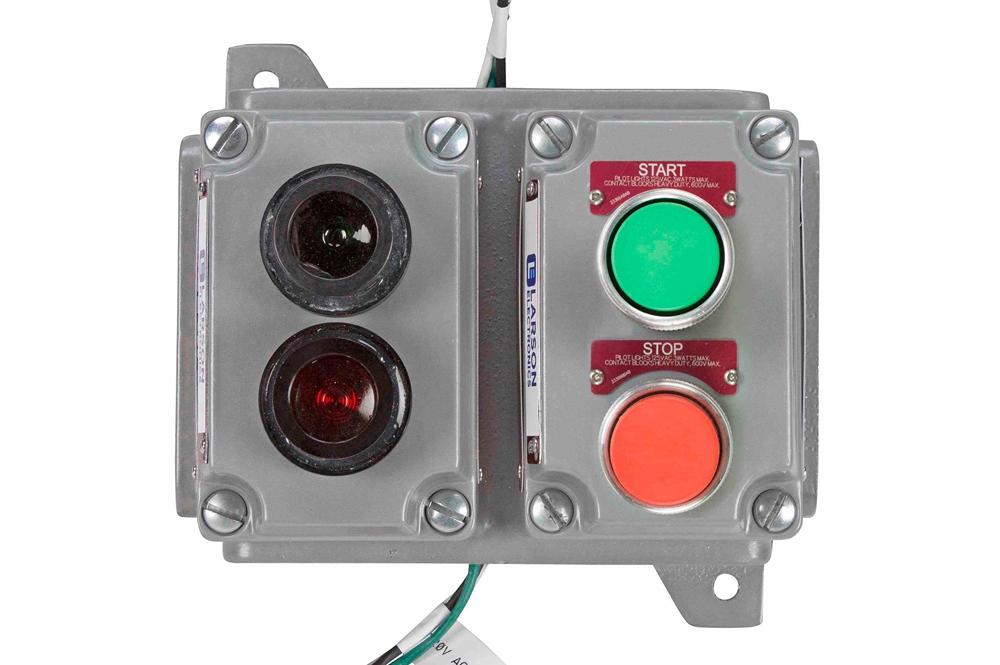

The Larson Electronics EPCS-2XPB-MS-2XPL.RG Explosion Proof Control Station is suitable for busy operations in hazardous locations. Featuring two momentary push buttons along with red and green pilot indicator lights, this control station allows operators to control connected devices and have a visual indication of their current power status. Constructed of aluminum with stainless steel components, the unit is surface mount compatible. The EPCS-2XPB-MS-2XPL.RG is a durable explosion proof control station designed for hazardous locations. This unit features two momentary push buttons (red/green) rated for 600V at 10 amps. Contact options include normally open, normally closed or NO/green and NC/red. There are two pilot lights on the device, which are rated for 120V or 240V. The EPCS-2XPB-MS-2XPL.RG is available with either 1/2" or 3/4" hub sizes and in dead end or feed through configurations. Please make your selections below when ordering. The EPCS-2XPB-MS-2XPL.RG explosion proof control station features a pair of pilot lights that function as indicator lights. One of the lights is red and one is green. Customer can wire these lights to existing equipment or controls.  The EPCS-2XPB-MS-2XPL.RG is constructed of aluminum with stainless steel parts. Operator name plates are displayed for accurate and proper use of the unit. The NEMA-rated control station is compatible with surface mount configurations. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers and more.
