Explosion Proof Control Station - C1D1/C2D1 - (2) LED Pilot Lights, (2) PBs, (1) 3-Pos Switch, Lockable - (2) Hubs
Explosion Proof Control Station - C1D1/C2D1 - (2) LED Pilot Lights, (2) PBs, (1) 3-Pos Switch, Lockable - (2) Hubs
| EPCS-2XPB.RG-2XPL.RG.LED-3P.LOR-2X0.75S-M1 Explosion Proof Control Station | Ratings/Approvals |
| Listing: NRTL Listed for United States and Canada | Listed for United States & Canada |
| Unit Type: Explosion Proof Control Station | Class I, Divisions 1 & 2, Groups C, D |
| Internal Dimensions: 12"L x 12"W x 8"H | Class I, Zones 1 & 2, Groups IIB, IIA |
| Weight: - | Class II, Divisions 1 & 2, Groups E, F, G |
| Voltage: 24V, 120V, 240V | Class III, Divisions 1 & 2 |
| Amps:Â Â - | NEMA 3R, 4, 7 (C, D), 9 (E, F, G) |
| LED Pilot Lights: (1) Green [Left Side], (1) Red [Right Side] | NRTL Listed to UL 508A |
| Push Buttons: (1) Green [Left Side], (1) Red [Right Side] | NRTL Listed to UL 1203 |
| Switch: (1) 3-position Switch - Lockable in the OFF Position | NRTL Listed to CSA C22.2 No 14, 25, 30 |
| Labels: Green Button + Green Pilot Light [STOP], Red Button + Red Pilot Light [RUN], 3-position Switch [Local/OFF/Remote] | |
| Materials: Aluminum and SS Hinge/Bolts | |
| Mount: Surface | |
| Hub Size: (2) 3/4" NPT Hubs on South Side | Toll Free:Â 1-800-369-6671 |

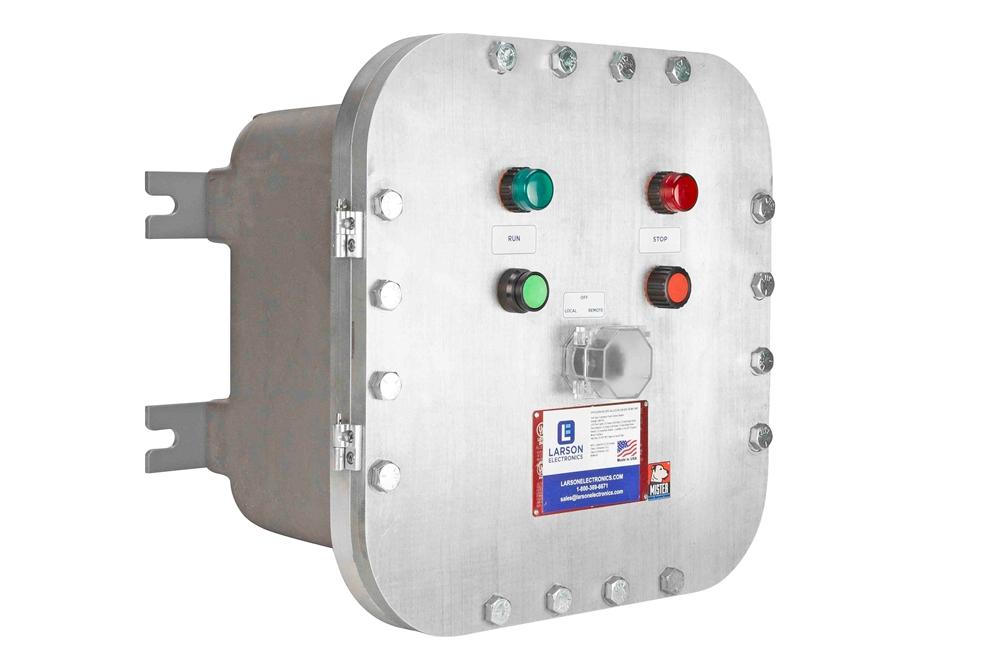

| The Larson Electronics EPCS-2XPB.RG-2XPL.RG.LED-3P.LOR-2X0.75S-M1 Explosion Proof Control Station is suitable for busy operations in hazardous locations. Featuring two push buttons, one 3-position switch and two LED pilot lights, the unit is offered in 120V, 240V or 24V. The NEMA 4X-rated enclosure contains two, 3/4" NPT hubs on the south side of the unit. The EPCS-2XPB.RG-2XPL.RG.LED-3P.LOR-2X0.75S-M1 is a durable explosion proof control station designed for hazardous locations. This unit operates on 120V, 240V or 24V. Operators may implement basic commands using one, three-position switch (labeled "Local/OFF/Remote"). The 3-position switch is lockable in the OFF position. One green push button and one green LED pilot light (labeled "STOP") on the left side, as well as one red push button and one red LED pilot light (labeled "RUN") on the right side are available on this control station. The EPCS-2XPB.RG-2XPL.RG.LED-3P.LOR-2X0.75S-M1 is constructed of cast aluminum, equipped with stainless steel hinge and bolts and includes a watertight gasket for a NEMA 4X protection rating. A total of two, 3/4" NPT hubs are located on the south side of this unit. The explosion proof control station is compatible with surface mount configurations. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers, small motors, manual control and more. |
