Explosion Proof Control Station - C1D1/C2D1 - (2) Key Op Switches, (3) LED PLs, (1) Combo PB - (2) Hubs

LARSON ELECTRONICSSKU: PL3-EPCS-2XPB.RG-3XPL.-2XKPW-2X0.75S-M1
filler

Price:
Sale price$9,871.99

Description

Specifications / Additional Information
EPCS-2XPB.RG-3XPL.-2XKPW-2X0.75S-M1 Explosion Proof Control Station Ratings/Approvals
Listing: NRTL Listed for United States and Canada Listed for United States & Canada
Unit Type: Explosion Proof Control Station Class I, Divisions 1 & 2, Groups C, D
Internal Dimensions: 12"L x 12"W x 8"H Class I, Zones 1 & 2, Groups IIB, IIA
Weight: - Class II, Divisions 1 & 2, Groups E, F, G
Voltage: 120V Class III, Divisions 1 & 2
Amps:  - NEMA 3R, 4, 7 (C, D), 9 (E, F, G)
LED Pilot Lights: (2) Green, 120V [Top and Middle, Right Side], (1) Red, 120V [Bottom, Right Side] NRTL Listed to UL 508A
LED Expected Lifespan: 50,000+ Hours NRTL Listed to UL 1203
Push Buttons: (1) Green - Start/Red - Stop Combination [Bottom, Left Side] NRTL Listed to CSA C22.2 No 14, 25, 30
Switches: (1) 2-position Key Operated, Maintained [Top, Left Side], (1) 3-position Key Operated, Maintained [Middle, Left Side]
Labels: -
Materials: Aluminum and SS Hinge/Bolts
Mount: Surface Toll Free: 1-800-369-6671
Hub Size: (2) 3/4" NPT Hubs on South Side Intl: 1-214-616-6180
' Product Overview '

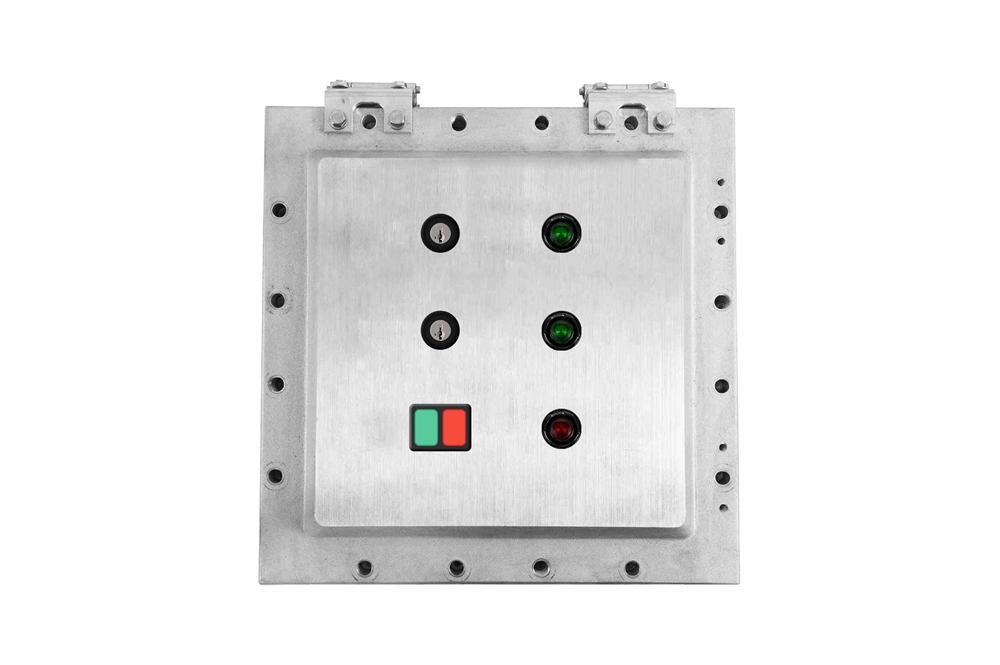

The Larson Electronics EPCS-2XPB.RG-3XPL.-2XKPW-2X0.75S-M1 Explosion Proof Control Station is suitable for busy operations in hazardous locations. Featuring two key operated selector switches, one start/stop combination push button and three LED pilot lights, the unit operates on 120V. The NEMA 4X-rated enclosure contains two, 3/4" NPT hubs on the south side of the unit. The EPCS-2XPB.RG-3XPL.-2XKPW-2X0.75S-M1 is a durable explosion proof control station designed for hazardous locations. This unit operates on 120V AC. Operators may implement basic commands using one 2-position key operated maintained switch at the top, left side and one 3-position key operated maintained switch at the middle, left side. The bottom, left side of the station contains a start/stop (red/green) combination push button. The right side is equipped with the following three 120V LED pilot lights: green (top), green (middle) and red (bottom). The EPCS-2XPB.RG-3XPL.-2XKPW-2X0.75S-M1 is constructed of cast aluminum, equipped with stainless steel hinge and bolts and includes a watertight gasket for a NEMA 4X protection rating. A total of two, 3/4" NPT hubs are located on the south side of this unit. The explosion proof control station is compatible with surface mount configurations. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers, small motors, manual control and more.
