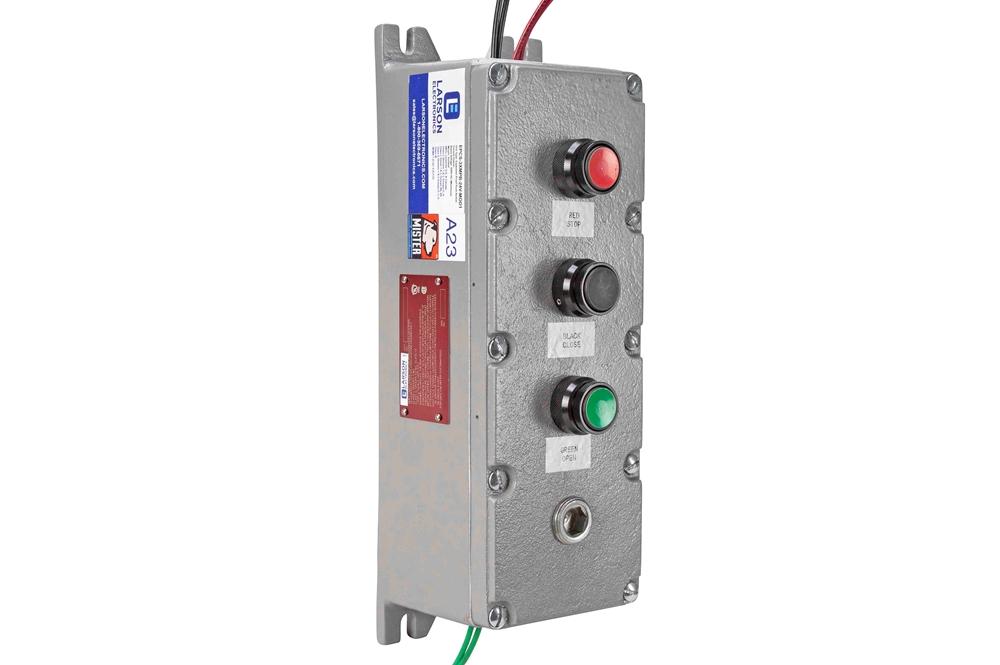

Explosion Proof Control Station - C1D1 - (3) Momentary Push Buttons w/ Labels - NEMA 7/9

LARSON ELECTRONICSSKU: PL3-EPCS-3XMPB-24V-MOD1
filler

Price:
Sale price$2,422.99

Description

Specifications / Additional Information
EPCS-3XMPB-24V-MOD1 Explosion Proof Control Station Ratings/Approvals
Listing: NRTL Listed for United States and Canada Class I, Divisions 1 & 2, Groups C,D
Unit Type: Explosion Proof Push Button Control Station Class I, Zones 1 & 2, Groups llB, llA
Dimensions: 9.375€ x 4" x 3.25" Class II, Divisions 1 & 2, Groups E,F,G
Weight: - Class III
Rated Voltage: 600V AC (Maximum) NEMA 7(C,D) 9(E,F,G)
Push Button Type: (3) Momentary - Green, Black and Red
Labels/Contacts: (1) Green/Open w/ (1) NO Contact, (1) Black/Close w/ (1) NO Contact, (1) Red/Stop w/ (1) NC Contact
Materials: Aluminum and SS
Enclosure Type: Drilled and Tapped (3) Operator Holes
Mount: Surface
Hub Size: 1" NPT
Hub Qty/Location: (1) North Side, (1) South Side
' Product Overview '
The Larson Electronics EPCS-3XMPB-24V-MOD1 Explosion Proof Control Station is suitable for busy operations in hazardous locations. Featuring three drilled and tapped operator holes, the unit supports several control mechanisms for heavy-duty machines. Three momentary push buttons can be found on this station. Constructed of aluminum with stainless steel components, the NEMA-rated unit is surface mount compatible. The EPCS-3XMPB-24V-MOD1 is a durable explosion proof control station designed for hazardous locations. Featuring a maximum voltage rating of 600V AC, this unit supports a total of three drilled and tapped operator holes. Three momentary push buttons are located on the control station. The push buttons feature the following colors, labels and contacts: (1) green with (1) NO contact - labeled "Open", (1) black with (1) NO contact - labeled "Close" and (1) red with (1) NC contact - labeled "Stop". Operator name plates are displayed for accurate and proper use of the unit. The EPCS-3XMPB-24V-MOD1 is constructed of aluminum with stainless steel parts. Wiring: The EPCS-3XMPB-24V-MOD1 contains two 1" NPT hubs for wiring connections. One 1" NPT hub is located at the north side and one 1" NPT hub can be found at the south side of the unit. Mounting: The NEMA-rated control station is compatible with surface mount configurations. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers and more.
