Explosion Proof Control Station - C1D1 - 600V - (3) Momentary Push Buttons w/ Labels - NEMA 7/9

LARSON ELECTRONICSSKU: PL3-EPCS-3XMPB-MOD3
filler

Price:
Sale price$2,422.99

Description

Specifications / Additional Information
EPCS-3XMPB-MOD3 Explosion Proof Control Station Ratings/Approvals
Listing: NRTL Listed for United States and Canada Class I, Divisions 1 & 2, Groups C,D
Unit Type: Explosion Proof Push Button Control Station Class I, Zones 1 & 2, Groups llB, llA
Dimensions: 9.375€ x 4" x 3.25" Class II, Divisions 1 & 2, Groups E,F,G
Weight: - Class III
Voltage: 600V AC NEMA 7(C,D) 9(E,F,G)

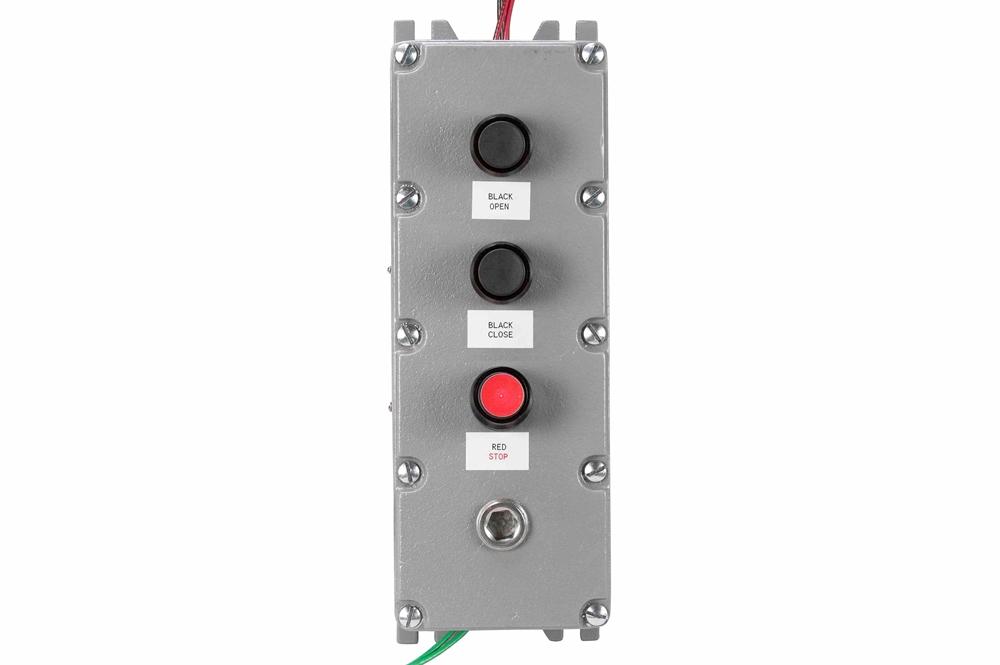

Push Button Type/Location: (3) Momentary - (1) Black/Top, (1) Black/Middle, (1) Red/Bottom
Labels/Contacts: (1) Black/Open w/ (1) NO Contact, (1) Black/Close w/ (1) NO Contact, (1) Red/Stop w/ (1) NC Contact
Amperage Rating: 10A per Button
Materials: Aluminum and SS
Enclosure Type: Drilled and Tapped (3) Operator Holes
Mount: Surface
Hub Size: 1" NPT
Hub Qty/Location: (1) North Side, (1) South Side
' Product Overview '
The Larson Electronics EPCS-3XMPB-MOD3 Explosion Proof Control Station is suitable for busy operations in hazardous locations. Featuring three drilled and tapped operator holes, the unit supports several control mechanisms for heavy-duty machines. Three momentary push buttons (rated at 10 amps per button) can be found on this station. Constructed of aluminum with stainless steel components, the NEMA-rated unit is surface mount compatible. The EPCS-3XMPB-MOD3 is a durable explosion proof control station designed for hazardous locations. Designed to operate on 600V AC, this unit supports a total of three drilled and tapped operator holes. Three momentary push buttons, which are rated at 10 amps per button, are located on the control station. The push buttons feature the following colors, labels and contacts: (1) black with (1) NO contact - labeled "Open", (1) black with (1) NO contact - labeled "Close" and (1) red with (1) NC contact - labeled "Stop". Operator name plates are displayed for accurate and proper use of the unit. The EPCS-3XMPB-MOD3 is constructed of aluminum with stainless steel parts. Wiring: The EPCS-3XMPB-MOD3 contains two 1" NPT hubs for wiring connections. One 1" NPT hub is located at the north side and one 1" NPT hub can be found at the south side of the unit. Mounting: The NEMA-rated control station is compatible with surface mount configurations. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers and more.
