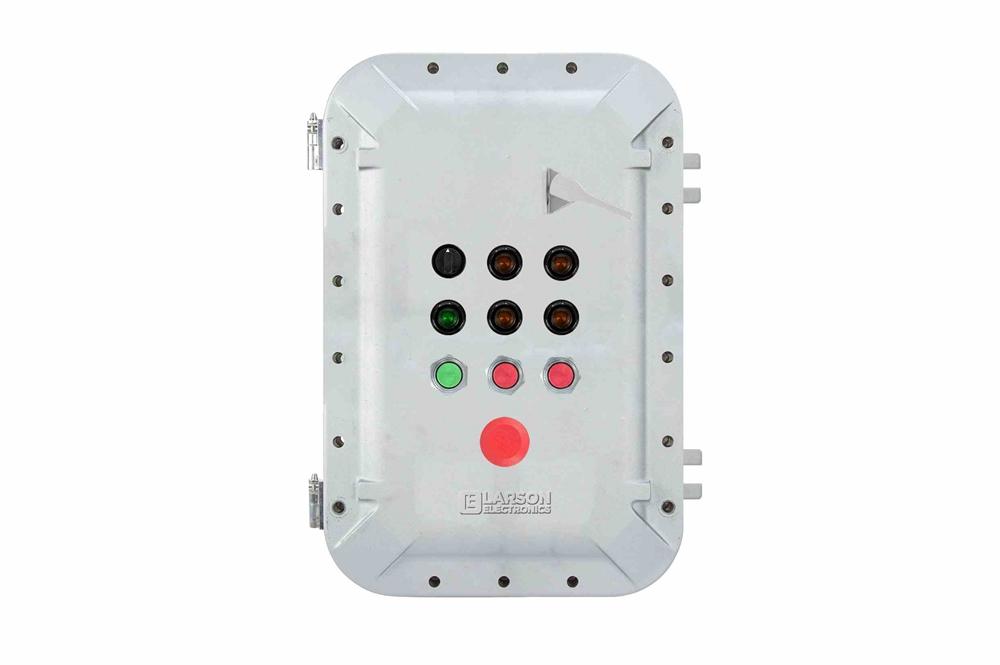

Explosion Proof Control Station - C1D1/C2D1 - (2) PBs , (1) E-stop, (1) 3-Pos Switch, (2) LED Pilot Lights

LARSON ELECTRONICSSKU: PL3-EPCS-5XPL-3PS-2XPB-ESTP-DS-MOD1
filler

Price:
Sale price$32,188.99

Description

Specifications / Additional Information
EPCS-5XPL-3PS-2XPB-ESTP-DS-MOD1 Explosion Proof Control Station Ratings/Approvals
Listing: NRTL Listed for United States, Canada and ATEX/IECEX Rated Listed for United States & Canada
Unit Type: Explosion Proof Control Station Class I, Divisions 1 & 2, Groups C, D
Dimensions: 29.25" x 35.25" x 12.40" Class I, Zones 1 & 2, Groups IIB, IIA
Weight: - Class II, Divisions 1 & 2, Groups E, F, G
Rated Voltage: - Class III, Divisions 1 & 2
Push Buttons: (1) Green [NO Contact Blocks], (1) Red [NC Contact Block] NEMA 3R, 4, 7 (C, D), 9 (E, F, G)
Selector Switch: 3 Positions w/ 2 NO Contact Blocks NRTL Listed to UL 508A
Emergency Stop: (1) Red Mushroom E-stop w/ NC Contact [Push/Pull] NRTL Listed to UL 1203
LED Pilot Lights: (1) Green w/ Terminal Blocks [120V], (1) Amber w/ Terminal Blocks [120V] NRTL Listed to CSA C22.2 No 14, 25, 30
Alarm Reset: Included
Disconnect: Through the Door
Materials: Copper-free Aluminum and Stainless Steel Toll Free: 1-800-369-6671
Enclosure Type: Drilled and Tapped (11) Operator Holes Intl: 1-214-616-6180
Mount: Surface Fax: 1-903-498-3364
Hubs: (2) 1 1/2" NPT, (3) 3/4" NPT Hubs @ South E-mail:
' Product Overview '
The Larson Electronics EPCS-5XPL-3PS-2XPB-ESTP-DS-MOD1 Explosion Proof Control Station is suitable for busy operations in hazardous locations. Featuring 11 drilled and tapped operator holes, the unit supports several control mechanisms for heavy-duty machines. A red mushroom emergency stop, alarm reset, 3-position selector switch, two push buttons and two LED pilot lights are available on this unit. Constructed of aluminum with stainless steel components, the unit is surface mount compatible. The EPCS-5XPL-3PS-2XPB-ESTP-DS-MOD1 is a durable explosion proof control station designed for hazardous locations and combustible sites. This unit supports 11 drilled and tapped operator holes at the cover. Operators are provided access to a red mushroom emergency stop (push/pull) with a normally closed contact and an alarm reset on the control station. A total of two push buttons can be found on the unit: (1) green [NO contact blocks] and (1) red [NC contact block]. Equipped with through-the-door disconnect, the explosion proof station features a 3-position selector switch that contains 2 NO contact blocks. One, green LED pilot light with terminal blocks that operates on 120V and one, amber LED pilot light with terminal blocks that operates on 120V can also be found on the unit. The EPCS-5XPL-3PS-2XPB-ESTP-DS-MOD1 is constructed of copper-free aluminum with stainless steel parts. Provisions for mounting ABB breakers are available with this control station. Wiring: The EPCS-5XPL-3PS-2XPB-ESTP-DS-MOD1 contains two, 1 1/2" NPT and three, 3/4" NPT hubs located at the south side of the explosion proof unit. Mounting: The Class I, II and III rated control station is compatible with surface mount configurations. Applications: Petroleum refineries, chemical and petrochemical plants, paint spray booths, food manufacturing buildings, agricultural sites, grain storage centers, small motors, manual control and more.
