Explosion Proof Control Station - C1D1 - (2) Green LED Ind Lamps [240V], (7) Green/Red Push Buttons

LARSON ELECTRONICSSKU: PL3-EPCS-7XPB-PLG.240V-MOD1
filler

Price:
Sale price$12,352.00

Description

Specifications / Additional Information
EPCS-7XPB-PLG.240V-MOD1 C1D1 Control Station Ratings
Unit Type: Explosion Proof Control Station Listed for United States & Canada
Internal Dimensions:  8" x 8" x 6" Class I, Divisions 1 & 2, Groups C, D
Weight: - Class I, Zones 1 & 2, Groups IIB, IIA
Voltage: 240V Class II, Divisions 1 & 2, Groups E, F, G
Indicator Lamps: (2) Green LED [240V] Class III, Divisions 1 & 2
Green Push Buttons: (5) NO Contacts w/ LED Indicator Lamps NEMA 3R, 4, 7 (C, D), 9 (E, F, G)
Red Push Buttons: (1) NC Contact w/ LED Indicator Lamp, (1) NO Contact NRTL Listed to UL 508A
Legend: Start Production, Station 1 Production, Station 2 Production, Color Change, Circulation Station 1, Circulation Station 2, End of Production, Reset Fault, Stop Cycle NRTL Listed to UL 1203
Materials: Copper-free Aluminum NRTL Listed to CSA C22.2 No 14, 25, 30
Finish: Aluminum Lacquer Paint
Mounting: Surface Mount
Screw Connections: Cable Ø - 0.59" (15mm) to 0.90" (23mm)
Toll Free: 1-800-369-6671
  E-mail:
*All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '

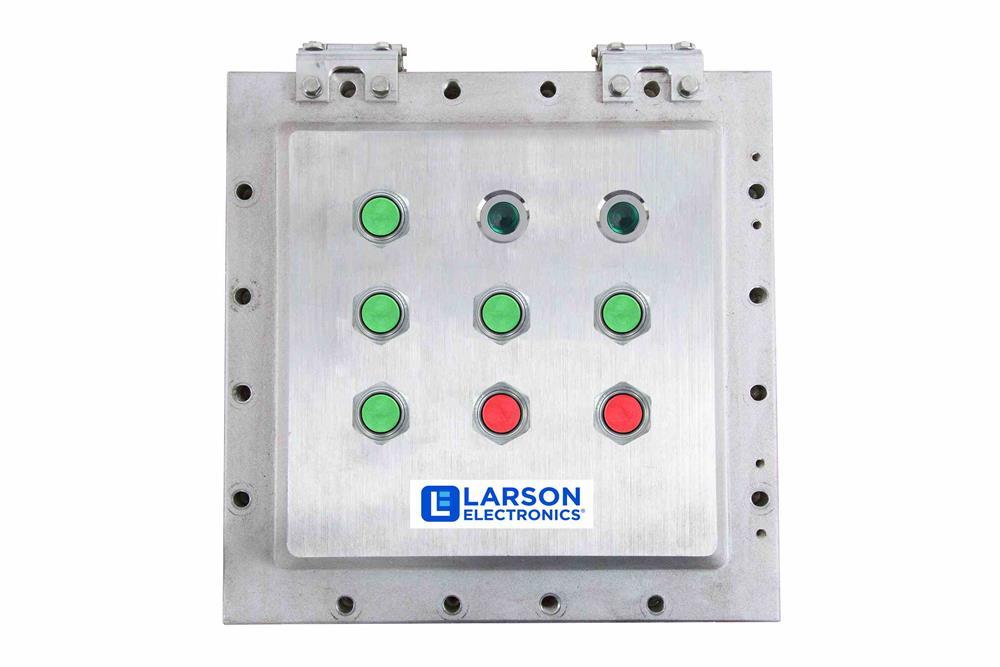

The Larson Electronics EPCS-7XPB-PLG.240V-MOD1 Explosion Proof Control Station offers accurate control of connected motors and devices in Class I, Division 1 work sites. This 240V unit features two green LED indicator lamps and seven green/red push buttons. Constructed of copper-free aluminum, the explosion proof control station mounts on flat surfaces during installation. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPCS-7XPB-PLG.240V-MOD1 is a Class I, Division 1 explosion proof control station for combustible work sites. This unit offers compatibility with 240V AC and contains two, green LED indicator lamps. A total of five, green push buttons with NO contact configurations and green LED indicator lamps can be found on the enclosure. Operators are also provided access to one, red push button with a NC contact configuration and red LED indicator lamp and one, red push button with a NC contact configuration (no LED indicator lamp). The push buttons and LED indicator lamps are arranged on the unit as follows: first row- Start Production (Green), Station 1 Production (Green), Station 2 Production (Green); second row- Color Change (Green), Circulation Station 1 (Green), Circulation Station 2 (Green); third row- End of Production (Green), Reset Fault (Red), Stop Cycle (Red). The explosion proof control station is made of copper-free aluminum and finished in aluminum lacquer paint. Operators are provided access to screw connections, which cater 0.59" (15 mm) - 0.90" (23 mm) cable diameters. Applications: Petroleum refineries, chemical and petrochemical plants, storage areas, and other processing facilities where hazardous substances are handled or stored.
