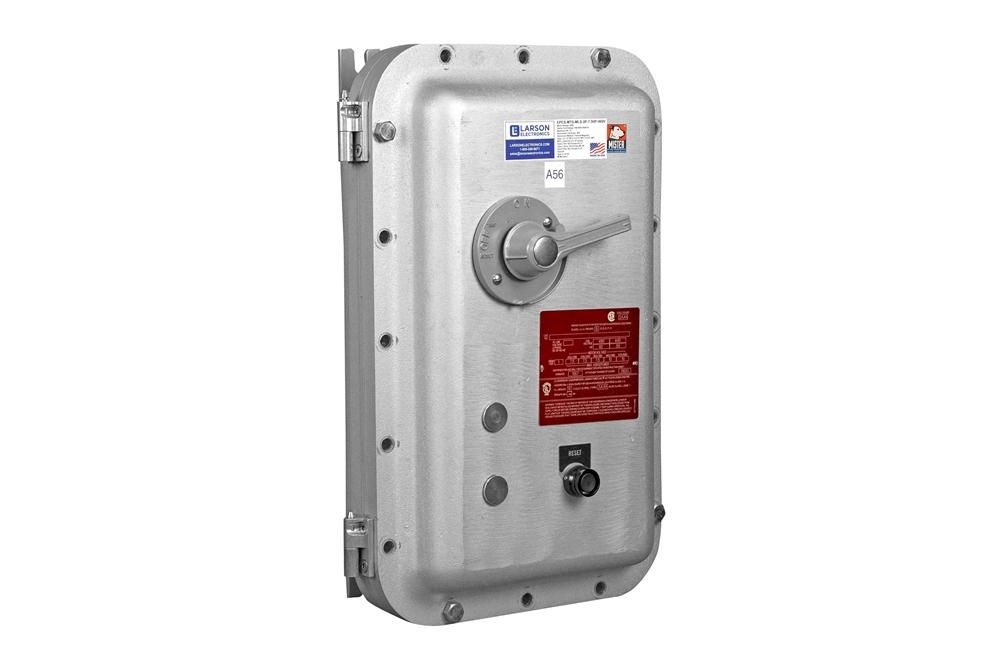

Explosion Proof Combination Magnetic Line Starter - C1D1, C2D1 - 460V 3PH - 7.5 HP - NEMA Size 1

LARSON ELECTRONICSSKU: PL3-EPCS-MTS-MLS-3P-7.5HP-460V
filler

Price:
Sale price$11,458.99

Description

Specifications / Additional Information
EPCS-MTS-MLS-3P-7.5HP-460V Explosion Proof Line Starter Features/Ratings
Unit Type: Explosion Proof Combination Magnetic Line Starter Class I, Div 1&2 Groups B,C,D
External Dimensions: 23" x 14.5" x 9.125" Class I, Zone 1&2 Groups IIB, IIA
Weight: 78 lbs Class II Div 1&2, Groups E,F,G
Motor Voltage: 460V Class III
Starter Coil Voltage: 440/480V 50/60 Hz Type 3, 4 & 4X
Maximum HP: 10 NEMA Size 1
Disconnect Trip Amps: 30A No Heater Needed
Disconnect Method: Thermal Magnetic Single Speed, Non-reversing
Materials: Copper Free Aluminum
Hardware Materials: 316 SS, Aluminum, Thermoplastic Polymer
Mounting: Surface Mount
Hubs: (1) 1.5" NPT, (1) 0.75" NPT, (1) 0.5" NPT Toll Free: 1-800-369-6671
Hub Location: Bottom Intl: 1-214-616-6180
External: Circuit Breaker Handle, Reset Button
Color: Gray
' Product Overview '
Made in the USA The Larson Electronics EPCS-MTS-MLS-3P-7.5HP-460V Explosion Proof Combination Magnetic Line Starter is designed for reliable motor control in flammable work sites. Featuring a starter coil voltage of 440/480V and a motor voltage of 460V, the unit provides a maximum of 10 HP during operation. The single speed, non-reversing magnetic line starter is constructed of copper-free aluminum and comes with a NEMA size 1 rating. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO EXPLOSION PROOF ENCLOSURES* The EPCS-MTS-MLS-3P-7.5HP-460V is an explosion proof combination magnetic line starter for flammable facilities. This unit features a starter coil voltage of 440/480V and a motor voltage of 460V. Overload heaters are not needed for the starter. The circuit breaker handle is lockable for security. A standard reset button is available and easily accessible from the front of the panel. This combination magnetic line starter is constructed of copper-free aluminum, with 316 stainless steel cover bolts. The unit is suitable for Class I, Divisions 1 and 2; Class I, Zone 1 and 2; Class II, Divisions 1 and 2; and Class III hazardous locations. A NEMA 4/4X rating ensures protection from exposure to direct water spray and corrosive elements. Mounting: The EPCS-MTS-MLS-3P-7.5HP-460V is designed for surface mounting configurations, via four mounting lugs located at each corner of the unit. A universal mounting pan and pre-drilled holes help streamline installations at the work site. The following hubs are available for completing wiring connections and installations: (1) 1.5" NPT (power), (1) 0.75" NPT (control) and (1) 0.5" (drain breather). Applications: Motor control, motor starting, equipment management, industrial infrastructure, flammable work sites, hazardous locations, chemical processing plants, agricultural operations, grain storage, confined spaces and more.
