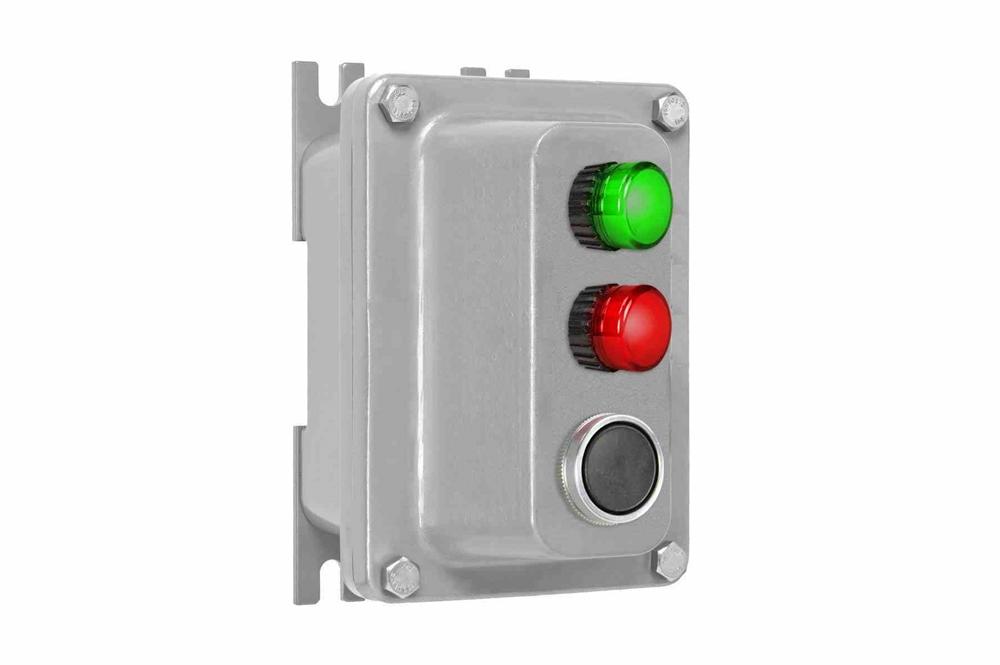

10A Explosion Proof Push Button w/ LED Pilot Lights - Class I, II, III - (2) 10A LED PLs - Momentary PB

LARSON ELECTRONICSSKU: PL3-EPCS-PB10-2XPL.GR-1XMPB-N4X-M1
filler

Price:
Sale price$4,026.99

Description

Specifications / Additional Information
EPCS-PB10-2XPL.GR-1XMPB-N4X-M1 Explosion Proof Control Station Ratings/Approvals
Listing: NRTL Listed for United States, Canada Class I, Divisions 1 & 2, Groups C, D
Unit Type: Explosion Proof Push Button w/ LED Pilot Lights Class II, Division 1, Groups E, F & G
Dimensions: 13.08" x 8.14" x 9.82" Class III
Weight: - NEMA 3R, 4, 4X, 7 (C, D), 9 (E, F, G)
LED Pilot Lights: (1) Red, (1) Green NRTL Listed to UL 508A, UL 1203
Pilot Light Voltage: 120V, 240V, 12V or 24V NRTL Listed to CSA C22.2 No 14, 25, 30
Push Button Type: Momentary, Black
PB Contacts: (1) NO, (1) NC- 10A Rated
Material: Copper Free Aluminum Toll Free: 1-800-369-6671
Mount: Surface Intl: 1-214-616-6180
Configuration: Dead End or Feed Through Fax: 1-903-498-3364
Hub Size: 1/2" NPT or 3/4" NPT
' Product Overview '
The Larson Electronics EPCS-PB10-2XPL.GR-1XMPB-N4X-M1 Explosion Proof Control Station is suitable for use in Class I, II and III rated combustible sites. This weatherproof unit contains three operators: (2) pilot lights and (1) push button. Protected by a copper-free aluminum enclosure, the control device is offered with 1/2" or 3/4" hub size. The EPCS-PB10-2XPL.GR-1XMPB-N4X-M1 is recommended for motor or equipment control in flammable facilities. The unit contains two LED pilot lights (green and red) and one push button. Voltage options for the pilot lights include: 120V, 240V, 12V or 24V. The momentary, black push button is equipped with one NO and one NC contacts, which are rated at 10 amps. The NEMA-rated device is constructed of copper-free aluminum. The EPCS-PB10-2XPL.GR-1XMPB-N4X-M1 comes with stainless steel captive screws for the cover assembly. Hubs: The explosion proof device is offered with 1/2" NPT or 3/4" NPT hub size and in dead end or feed through configuration for completing wiring connections. Mount: The EPCS-PB10-2XPL.GR-1XMPB-N4X-M1 is compatible with surface mounting applications. Applications: Starters, remote control of motors, chemical processing plants, food processing facilities, oil refineries and other hazardous locations applicable to the unit's classified ratings.
