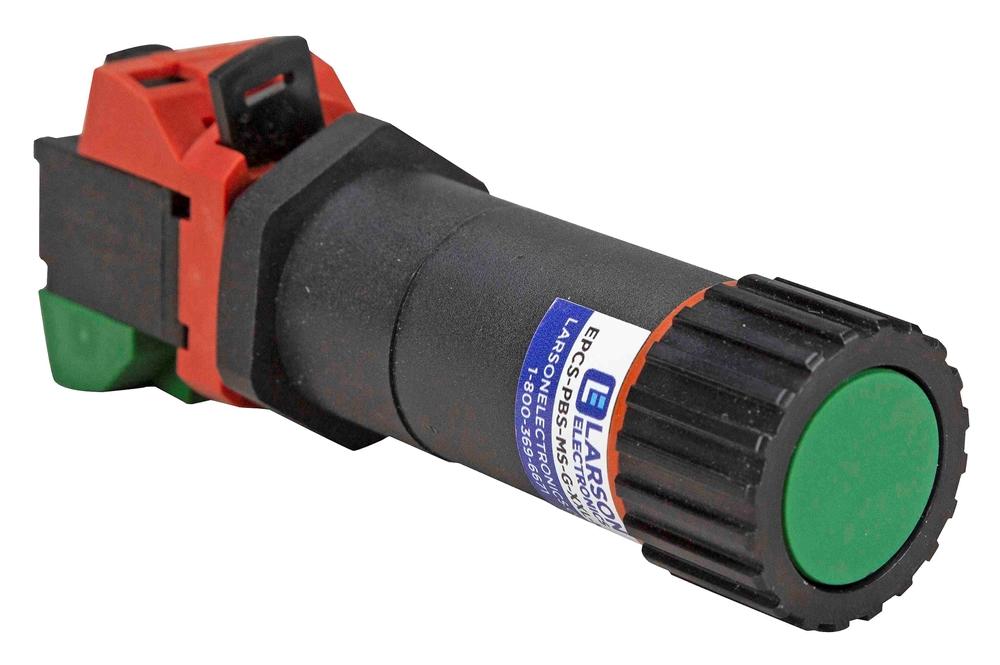

Explosion Proof Push Button Switch - Class I, II, III - 20 Amps - Green/Momentary, Short Barrel - N4X
Explosion Proof Push Button Switch - Class I, II, III - 20 Amps - Green/Momentary, Short Barrel - N4X
| EPCS-PBS-MMS-G-XS Short Barrel Momentary Push Button | Ratings/Approvals |
| Listing: NRTL Listed for United States, Canada, EU and International - ATEX-IECEx Rated | Class I, Divisions 1&2 Groups B,C,D |
| Dimensions: 4.2" x 1.8" x 1.8" | Zones 1&2/21&22 |
| Weight: 0.25 lbs | Class II, Divisions 1&2 Groups E,F,G |
| Watts: - | Class III, Divisions 1&2 |
| Voltage Rating: 500V AC | II 2 G Ex db IIC/IIB+H2Gb |
| Push Button Action: Momentary | II 2 D Ex tb IIIC Db |
| Push Button Color: Green | NEMA 4X |
| Contacts: (1) NO/(1) NC | Â |
| Amps: 20A | |
| Ambient Operating Temperature: -50°C to +60°C | |
| Materials: Aluminum and Stainless Steel | Toll Free:Â 1-800-369-6671 |
| Mount: Surface/Panel | |
| Body: 3/4€Â-14 NPSM Thread | |
| Short Barrel Length: 0.94" (25mm) THD |
| The EPCS-PBS-MMS-G-XS from Larson Electronics is an Explosion Proof Push Button Switch that is suitable for preventing the ignition of external, flammable atmospheres in hazardous locations. This 500V-rated unit features a short barrel, threaded body design. Constructed of aluminum and stainless steel, the explosion proof device features one set of normally open/normally closed contacts and carries a NEMA 4X rating. The EPCS-PBS-MMS-G-XS is suitable for Class I, II and III, as well as ATEX/IECEx rated combustible sites. This short barrel switch comes with a maximum voltage rating of 500V AC. The green push button offers momentary action during use. One normally open and one normally closed contacts (rated at 20 amps) are available inside the unit. The explosion proof push button takes on a 3/4€Â-14 NPSM thread body with a 0.94" (25mm) THD short barrel length. For protection in hazardous locations, the explosion proof device is constructed of aluminum and stainless steel. This green push button is compatible with panel or surface mounting applications. Applications: Chemical processing facilities, food processing plants, oil refineries, agricultural sites, grain storage facilities, metal processing and more. |
