10A Explosion Proof Push Button - Class I, II, III - Long Barrel, Momentary - TB - N4X

LARSON ELECTRONICSSKU: PL3-EPCS-PBS-MS-B-XL-M1
filler

Price:
Sale price$261.99

Description

Specifications / Additional Information
EPCS-PBS-MS-B-XL-M1 Extended Push Button Ratings/Approvals
Listing: NRTL Listed for United States, Canada, Europe, International  Class I, Divisions 1&2 Groups B,C,D
Unit Type: Explosion Proof Push Button Class II, Divisions 1&2 Groups E,F,G
Dimensions: 6.7" x 1.8" x 1.8" Class III
Weight: 0.35 lbs ATEX/IECEx Rated
Voltage Rating: 500V AC Ex II 2G Ex db IIC Gb
Frequency: 50/60 Hz Ex II 2D Ex tb IIIC Db
Amp Rating: 10A NEMA 4X
Action: Momentary IP66
Pole: 2P
Contacts: (1) NO, (1) NC
Design: Long Barrel
Ambient Operating Temp: -50°C to +60°C
Materials: Aluminum and Stainless Steel
Mount: Surface/Panel Toll Free: 1-800-369-6671
Wiring: Terminal Blocks
Body: 3/4"-14 NPSM Threaded
Button Color: Black
' Product Overview '

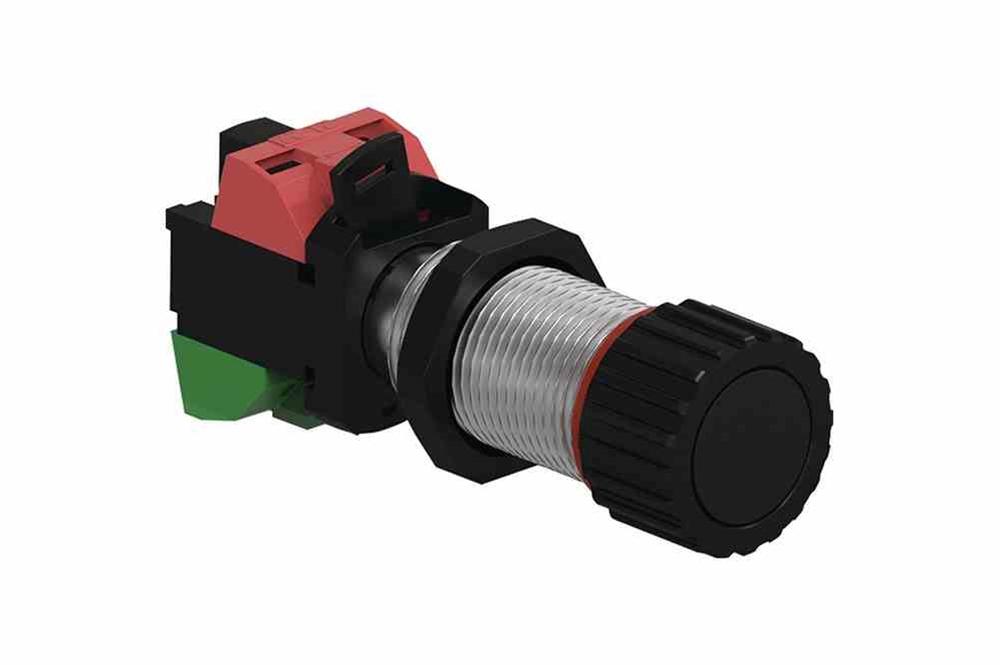

The EPCS-PBS-MS-B-XL-M1 from Larson Electronics is an Explosion Proof Push Button Switch that is suitable for preventing the ignition of external, flammable atmospheres in combustible sites. This 500V-rated unit features a long barrel, threaded design for installation in thick panels. The explosion proof device contains one set of contacts and comes with terminal blocks for wiring connections. The EPCS-PBS-MS-B-XL-M1 is rated for Class I, II and III, as well as ATEX/IECEx rated facilities. The long-barrel switch comes with maximum ratings of 500V AC and 10 amps. Designed for momentary action, the 2-pole unit contains the following contacts: (1) NO and (1) NC. This NEMA 4X rated device features a 3/4"-14 NPSM threaded body. For protection in hazardous locations, the explosion proof push button is constructed of aluminum and stainless steel. The IP66 rated unit features terminal blocks for wiring connections. Mounting: This black push button is compatible with panel or surface mounting applications. Applications: Chemical processing facilities, food processing plants, oil refineries, agricultural sites, grain storage facilities, metal processing and more.
