Explosion Proof Timer - Class I, II, III - Terminal Strips, 5.38" Lens - ATEX/IECEX - (2) Hubs
Explosion Proof Timer - Class I, II, III - Terminal Strips, 5.38" Lens - ATEX/IECEX - (2) Hubs
| EPCS-PGT-R1-15A-120V-2X0.75IN Explosion Proof Timer - Class I, II, III Div 1 & 2 | Ratings/Approvals |
| Listing: NRTL Listed for United States, Canada, Europe, Asia | Class I, Divisions 1 & 2, Groups B, C, D |
| Device Type: Explosion Proof Timer | Class I, Zones 1 & 2, Groups IIB+H2, IIA |
| External Dimensions: 9.13" x 9.63" x 7.18" | Class II, Divisions 1 & 2, Groups E, F, G |
| Internal Dimensions: 7.06" x 8.31" x 4.13" | Class III, Divisions 1 & 2 |
| Internal Volume: 305 cu. in. | NEMA Type 3, 4, 4X, 7 (B,C,D), 9 (E,F,G) |
| Lens Opening: 5.38" | ATEX/IEC Ex |
| Weight: - | Ex d IIC T6 or T5 |
| Voltage: 120V AC | Ex tD A21 IP66 T80°C or T90°C IP66 |
| Rated Amps: 15A | Ta = -20°C to +60°C |
| Timer Type: Digital, Programmable (via Keypad Buttons) w/ Manual Override | LCD Display |
| Programs: Save up to 8 [Daily, One Specific Day, Weekday, Weekend, Sunday Excluded, Mon-Wed-Fri Only, Tu-Thurs-Sat Only and More] | Â |
| Keypad Buttons: Week, Hour, Minute, Reset, Clock, Program, On/Auto/Off | Â |
| Modes: Daylight Saving Time and Random Security Mode | Â |
| Battery Backup: Built-in, Included (Keeps Saved Settings during Power Outage) | Â |
| Connection: Terminal Strips | Â |
| Material: Copper-free Aluminum | |
| Enclosure Finish: Electrostatically Applied Powder Epoxy/Polyester Finish | |
| Lens Material: Tempered Soda Lime Glass | |
| Mounting: Surface | Toll Free:Â 1-800-369-6671 |
| Design: Timer Box w/ Lens Cover | |
| Hub Qty: (2) | |
| Hub Sizes/Locations: (1) 3/4" NPT @ East, (1) 3/4" NPT @ West |

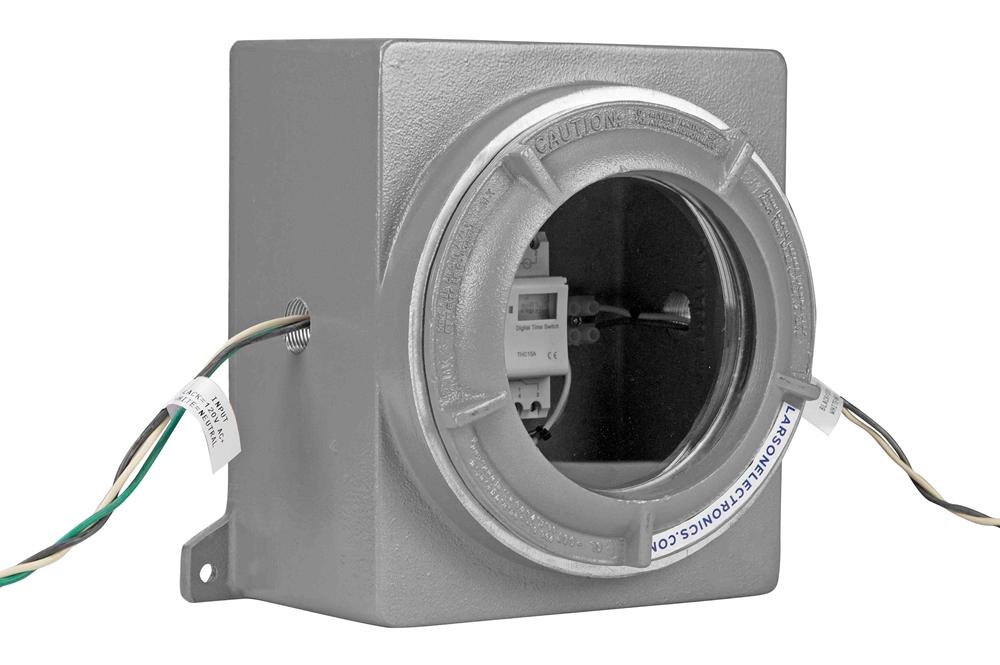

| The Larson Electronics EPCS-PGT-R1-15A-120V-2X0.75IN Explosion Proof Timer is designed for use in hazardous locations, confined spaces and industrial facilities. This unit contains a 5.38" lens opening and is constructed of copper-free aluminum. The explosion proof timer features up to 8 programmable on/off settings and a built-in backup battery. The EPCS-PGT-R1-15A-120V-2X0.75IN offers time-tracking capabilities in Class I, II and III rated combustible facilities. Operators may access a 15-amp digital, programmable timer inside the enclosure, which is compatible with 120V AC. To change the settings of the timer, individuals must open the lid. The digital timer enables individuals to save up to 8 on/off functions or settings (can be as short as one minute; preset combination days available). An included, built-in battery ensures backup during power outage which maintains the saved settings. The on/off switch serves as a manual override for ongoing programmed settings. To setup programmed settings, operators can use accessible keypad buttons on the timer. Operators may select between Daylight Saving Time and Random Security modes. When Daylight Saving Time is selected, the unit automatically toggles the time by +/- 1 hour (depending on the applicable time difference). In Random Security Mode, the explosion proof timer randomly turns off the connected device for 5-30 minutes, then turns it back on. This unit is equipped with a 5.38" lens opening and 305 cubic inches of volume. Constructed of copper-free aluminum, the ATEX/IECEX-rated enclosure is protected by a tempered soda lime glass lens. This unit is rated NEMA Type 3, 4, 4X, 7 (B,C,D) and 9 (E,F,G) and designed to withstand the rigors of demanding environmental and operating conditions while remaining robust and easy to use. Hubs: The EPCS-PGT-R1-15A-120V-2X0.75IN contains one, 3/4" NPT hub @ east and one, 3/4" NPT hub @ west of the enclosure. Terminal strips can be used to complete wiring connections. Mounting: This explosion proof unit is compatible with surface mounting requirements. Cast mounting lugs are available for mounting. Suggested Applications: Paint spray booths, aircraft maintenance, oil drilling rigs, refineries, solvent and cleaning areas, chemical manufacturing, waste treatment plants, gas processing plants and more. |
